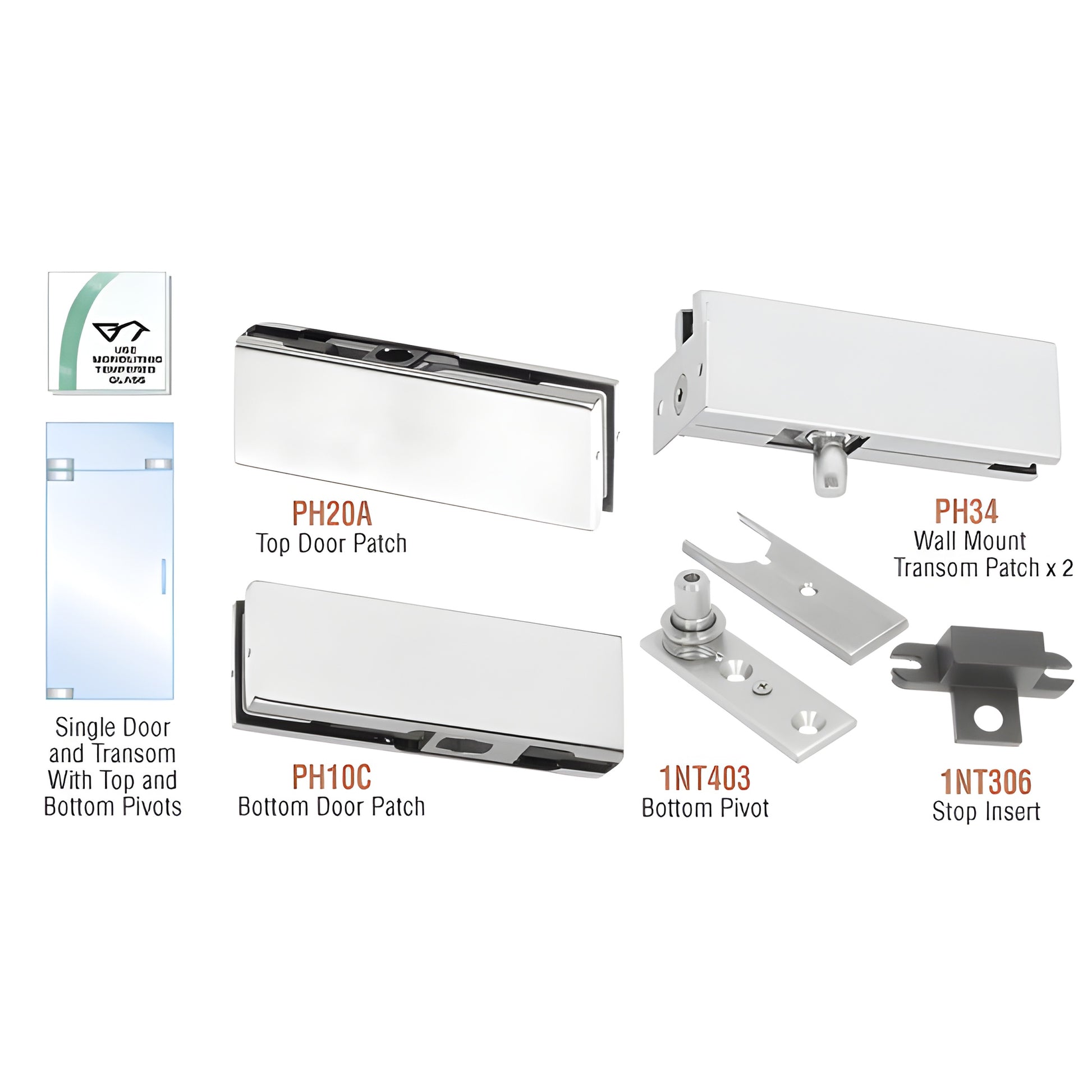

• PHA3A patch door kit for single glass door with fixed transom: top/bottom patches, transom patches, pivot, stop
1 1

CRL

CRL Satin Anodized Glass Patch Door Kit for Fixed Transom - No Lock

CRL Satin Anodized Glass Patch Door Kit for Fixed Transom - No Lock

$418.32 CAD
$418.32 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA3A
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single With Transom
Door Type
A Style Glass Door
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4

Overview

  • Fittings for fixed glass transom
  • High-density cast body
CRL PHA3 North American Patch Door Kit (SKU: PHA3A)

Complete hardware kit for a single free-swinging patch glass door with a fixed transom (glass and any additional transom supports not included). Pivot setback: 2-3/4" (70 mm). Compatible with floor closers that use tapered spindles (floor closers ordered separately). Ideal for commercial glass door installations requiring a patch door kit for fixed glass transoms and commercial glass door hardware.

Kit Contains:
  • 1 - PH20A Top Door Patch
  • 1 - PH10C Bottom Door Patch
  • 2 - PH34 Wall Mount Transom Patch
  • 1 - 1NT306 Stop Insert
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)

Kits with lock option include one AMR205 patch lock (cylinders, thumbturns, and keepers ordered separately).

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs before ordering, contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.

Looking for a durable, ready-to-install patch door kit for a fixed glass transom? Add SKU PHA3A to your cart or contact us for availability and pricing.
