CRL Monterey S80CW 3+3 Satin Anodized Exterior Bi-Fold w Lever Lock
CRL Monterey S80CW 3+3 Satin Anodized Exterior Bi-Fold w Lever Lock
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# M3B33R0SAL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
1 in. (25 mm)
Maximum Panel Width
36 in. (914 mm)
Panel Count
6
Overview
- Meets CW performance rating minimum design pressure of 30 psf
- Meets CW performance rating maximum allowable deflection of L/175
- Thermally broken with 1-inch insulating glass
- For low- to mid-rise commercial applications
- Maximum panel width: 36 inches; maximum frame height: 10 feet

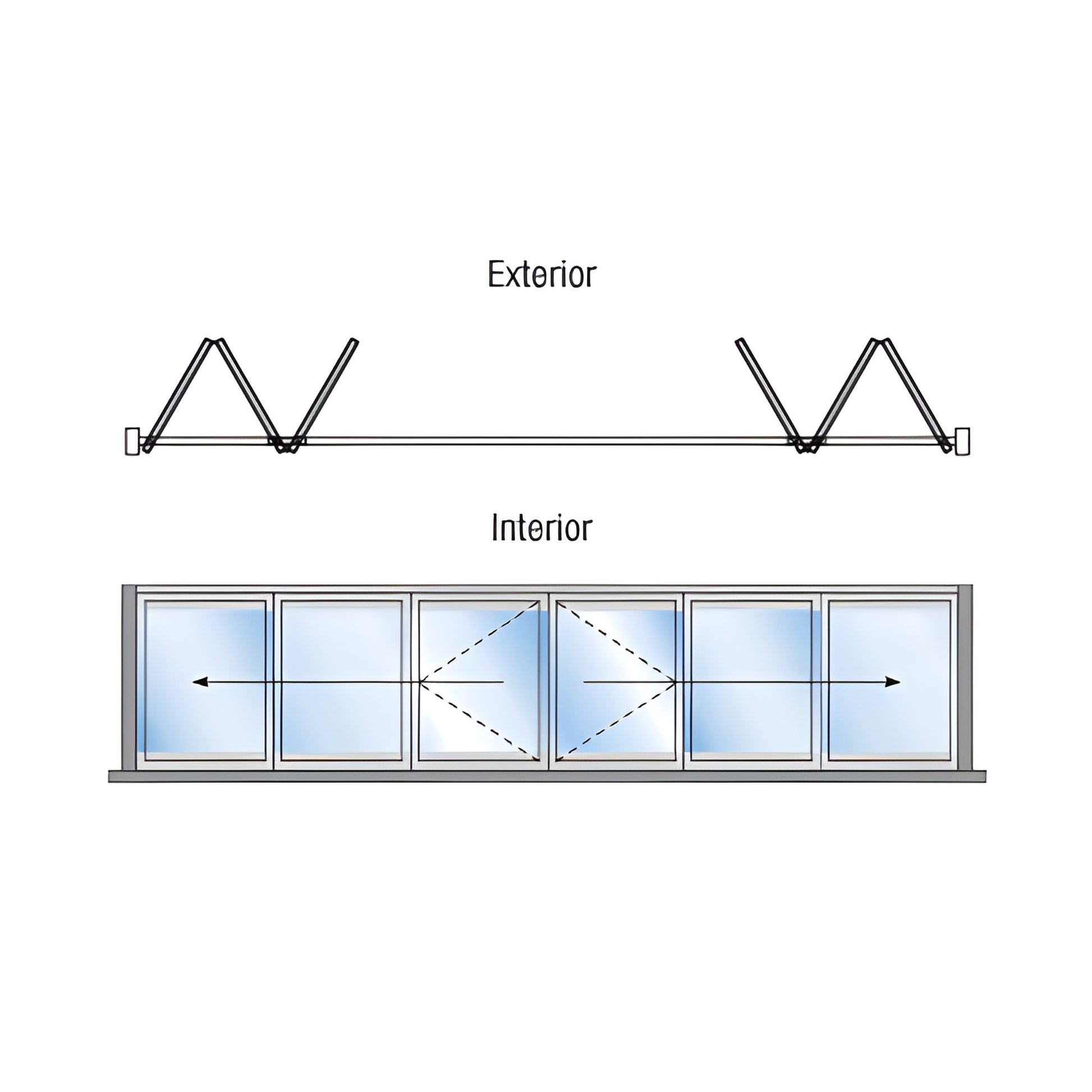

Monterey S80CW Bi-Folding Door (SKU: M3B33R0SAL) delivers commercial-grade performance and weather resistance. Engineered to the CW Performance Class, this bi-folding door is suited for exterior commercial projects requiring larger panel sizes, higher load capacity, strict deflection limits, and frequent operation. The thermally broken frame with 1" insulating glass improves thermal performance while maintaining structural integrity—ideal for restaurants, retail storefronts, and low- to mid-rise building façades.
- Outswing with raised sill only
- Maximum interconnected panels: 9
- Option for floating panels in even sets
- Standard finishes: black bronze anodized, satin anodized, black & white powder coat (90% gloss)
- Custom finishes available in any powder paint color
Specify M3B33R0SAL for pricing and lead time inquiries — contact us to request a quote or a sample finish.
