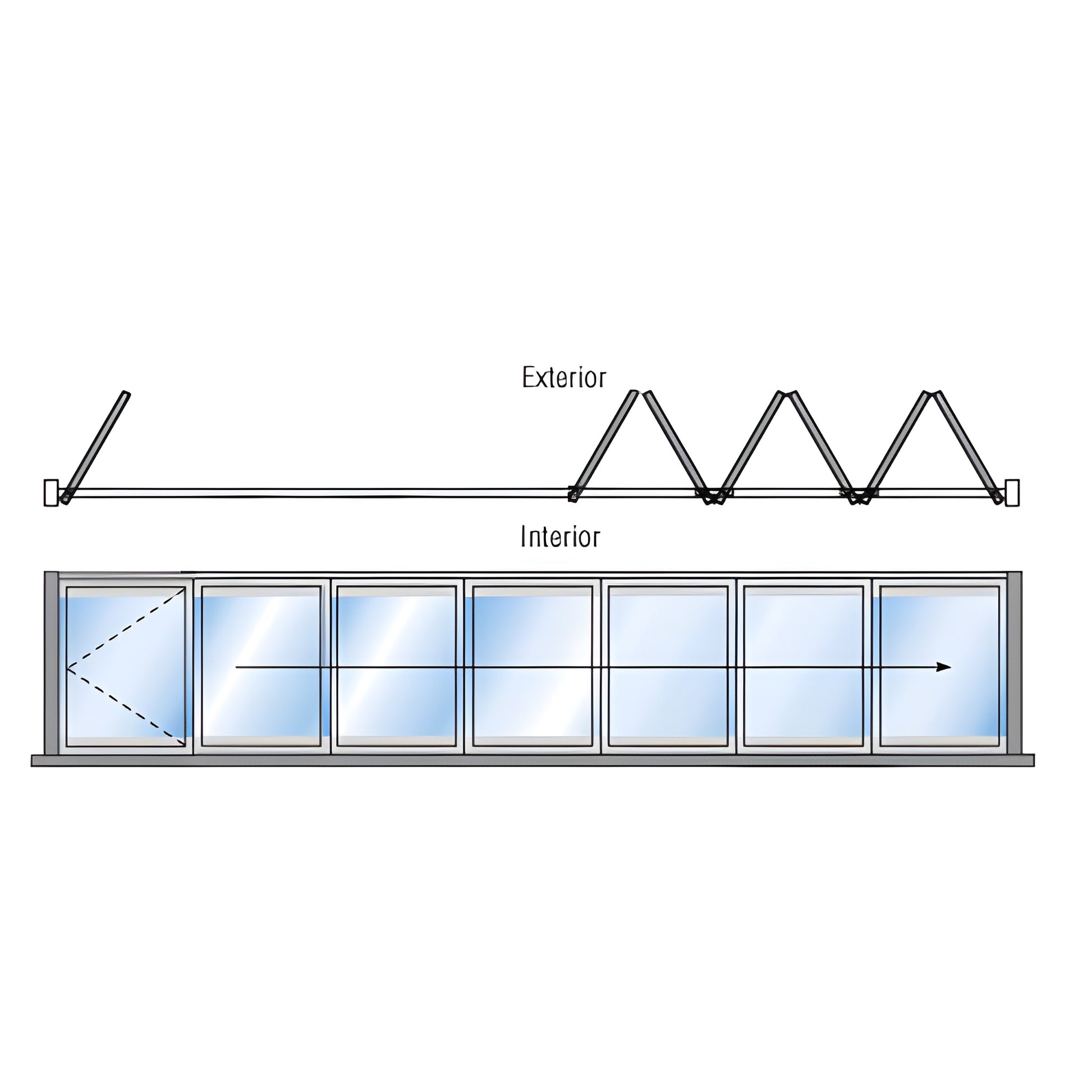

CRL Monterey S80CW Satin LH Bi-Fold/Pivot Door Kit w/ Sill & Lock
CRL Monterey S80CW Satin LH Bi-Fold/Pivot Door Kit w/ Sill & Lock
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# M3C16R0SAL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
1 in. (25 mm)
Maximum Panel Width
36 in. (914 mm)
Panel Count
6
Overview
- Meets CW performance rating minimum design pressure of 30 psf
- Meets CW performance rating maximum allowable deflection of L/175
- Thermally broken system with 1-inch insulating glass
- For low- to mid-rise commercial applications
- Maximum panel width: 36 inches; maximum frame height: 10 feet
The Monterey S80CW Bi-Folding Door is a commercial bi-folding door engineered for demanding exterior applications. With a CW Performance Class rating, thermally broken profiles and 1" insulating glass, it delivers superior weather resistance, structural performance, and reduced thermal transfer for low- to mid-rise commercial projects. SKU: M3C16R0SAL.
- Outswing configuration with raised sill only
- Maximum interconnected panels: 9
- Floating panels option available in even sets
- Standard finishes: black bronze anodized, satin anodized, black & white powder coat (90% gloss)
- Custom finishes available in any powder paint color
Specify your project requirements or request a quote today.
