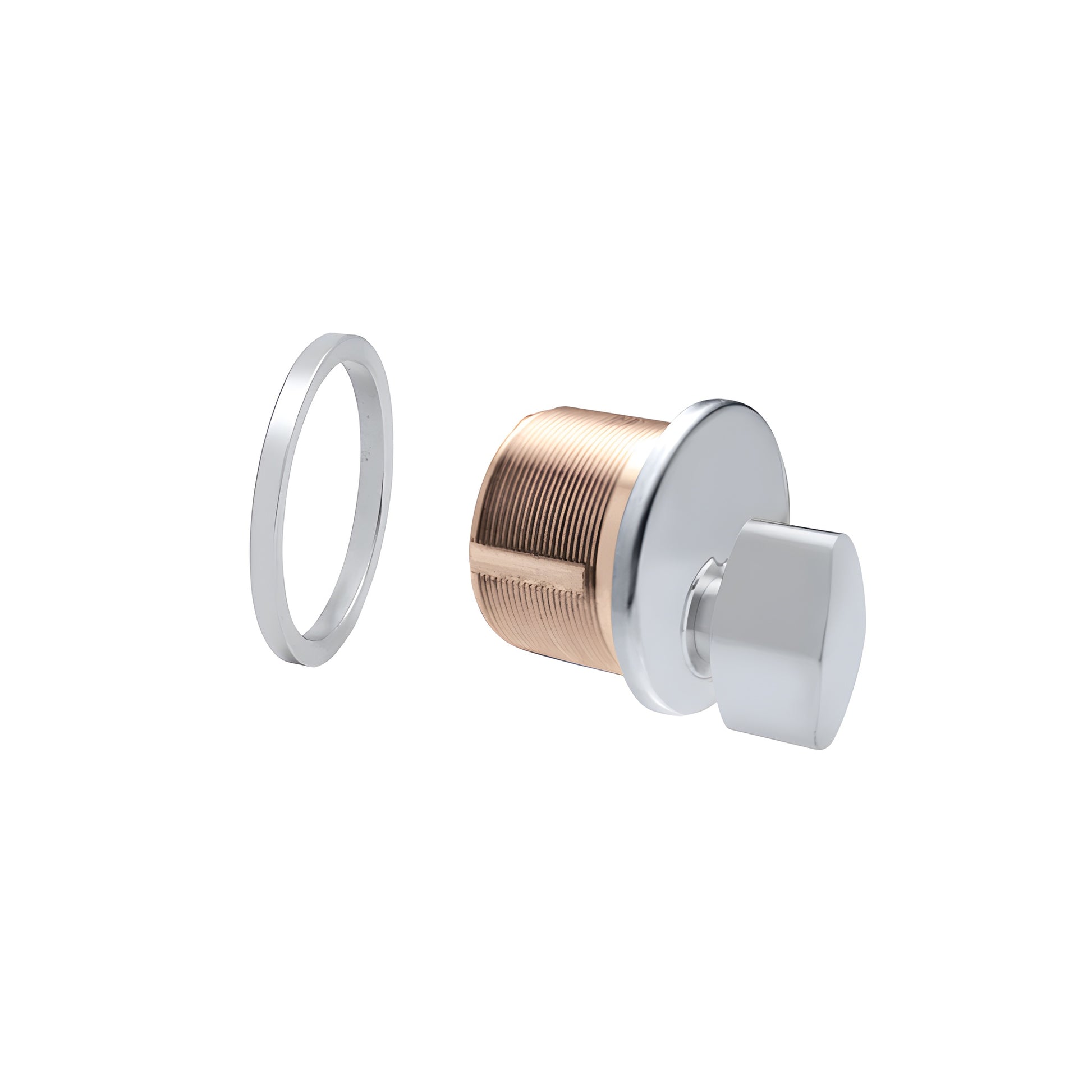

• DRA20SA mortise thumbturn cylinder - solid brass 1" length with satin anodized ring and chrome thumbturn, 5-pin.
1 1

CRL

CRL Satin Anodized Mortise Thumbturn Replacement Cylinder

CRL Satin Anodized Mortise Thumbturn Replacement Cylinder

$24.26 CAD
$24.26 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DRA20SA
Shipping Weight: 5.92 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Cylinder Diameter
1-5/32
Cylinder Length
1
Extruded Aluminum
Yes
Finish/Color
Satin Anodized
Material
Brass
Ring Thickness
.117
Type
Mortise

Overview

  • Solid brass housing — corrosion-resistant mortise thumbturn cylinder
  • 1" length, 5-pin cylinder, 1-5/32" (29.4 mm) diameter
  • DRA10 cam; includes 0.117" (3 mm) thick cylinder ring

This CRL Mortise Thumbturn Cylinder (SKU DRA20SA) features a solid brass housing and a DRA10 cam for reliable operation with the CRL Wedge-Lock Door Rail System. The compact 1" (25.4 mm) length and 1-5/32" (29.4 mm) diameter suit narrow mortise cutouts; the 5-pin cylinder provides standard security for commercial and residential glass door applications. Cylinder includes a 0.117" (3 mm) thick ring for flush installation.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Order the CRL DRA20SA mortise thumbturn cylinder for secure, low-profile hardware compatible with CRL Wedge-Lock door rail systems — add to cart or contact CRL Customer Service to confirm fitment.
