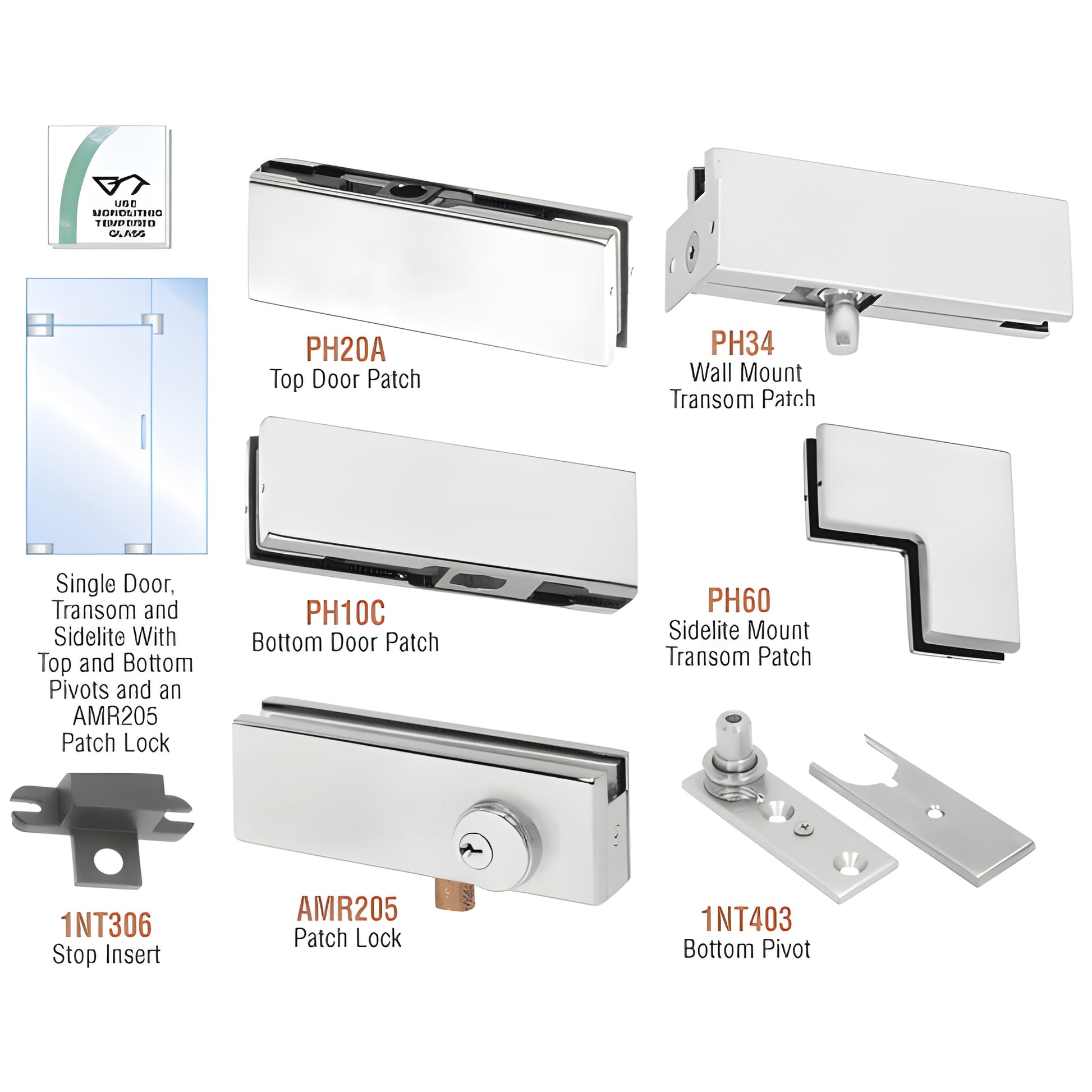

• PHA4LA pivot kit for tempered glass door with transom and sidelite, includes patches, pivot and patch lock
1 1

CRL

CRL Satin Anodized NA Patch Door Kit for Transom & Sidelite - No Lock

CRL Satin Anodized NA Patch Door Kit for Transom & Sidelite - No Lock

$618.22 CAD
$618.22 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA4LA
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Five architectural finishes
CRL PHA4 North American Door Kits (SKU: PHA4LA)

Complete hardware kit for a free-swinging glass door with fixed transom and sidelite (glass and additional supports for the fixed transom and sidelite not included). Pivot setback: 2-3/4" (70 mm). Compatible with a floor closer using a tapered spindle (floor closer ordered separately). Ideal for commercial and architectural glass door installations requiring durable pivot hardware and multiple finish options.

Kit Contains:
  • 1 - PH34 Wall Mount Transom Patch
  • 1 - PH60 Sidelite Mount Transom Patch
  • 1 - PH20A Top Door Patch
  • 1 - PH10C Bottom Door Patch
  • 1 - 1NT306 Stop Insert
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)

Kits with a lock include one Cat. No. AMR205 patch lock; cylinders, thumbturns, and keepers are ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA guidelines.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor.

Choose the PHA4LA pivot door kit for reliable, architectural-grade tempered glass door hardware in multiple finishes — order or contact CRL for pricing and availability.
