CRL Satin Anodized Patch Kit for Double Glass Doors w/ Lock, Transom
CRL Satin Anodized Patch Kit for Double Glass Doors w/ Lock, Transom
Regular price
$1,125.07 CAD
Regular price
Sale price
$1,125.07 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE6LA
Shipping Weight: 13.85 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.85 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Pair With Transom
Door Type
F Style Glass Door
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- Most Popular Design
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks (SKU PHE6LA)
CRL PHE6 European Double Door Kits include all hardware required to install a pair of free-swinging tempered glass doors with a fixed transom (glass and additional transom supports not included). Pivot setback: 2-9/16" (65 mm). Compatible with a floor closer using a tapered spindle (floor closer ordered separately).

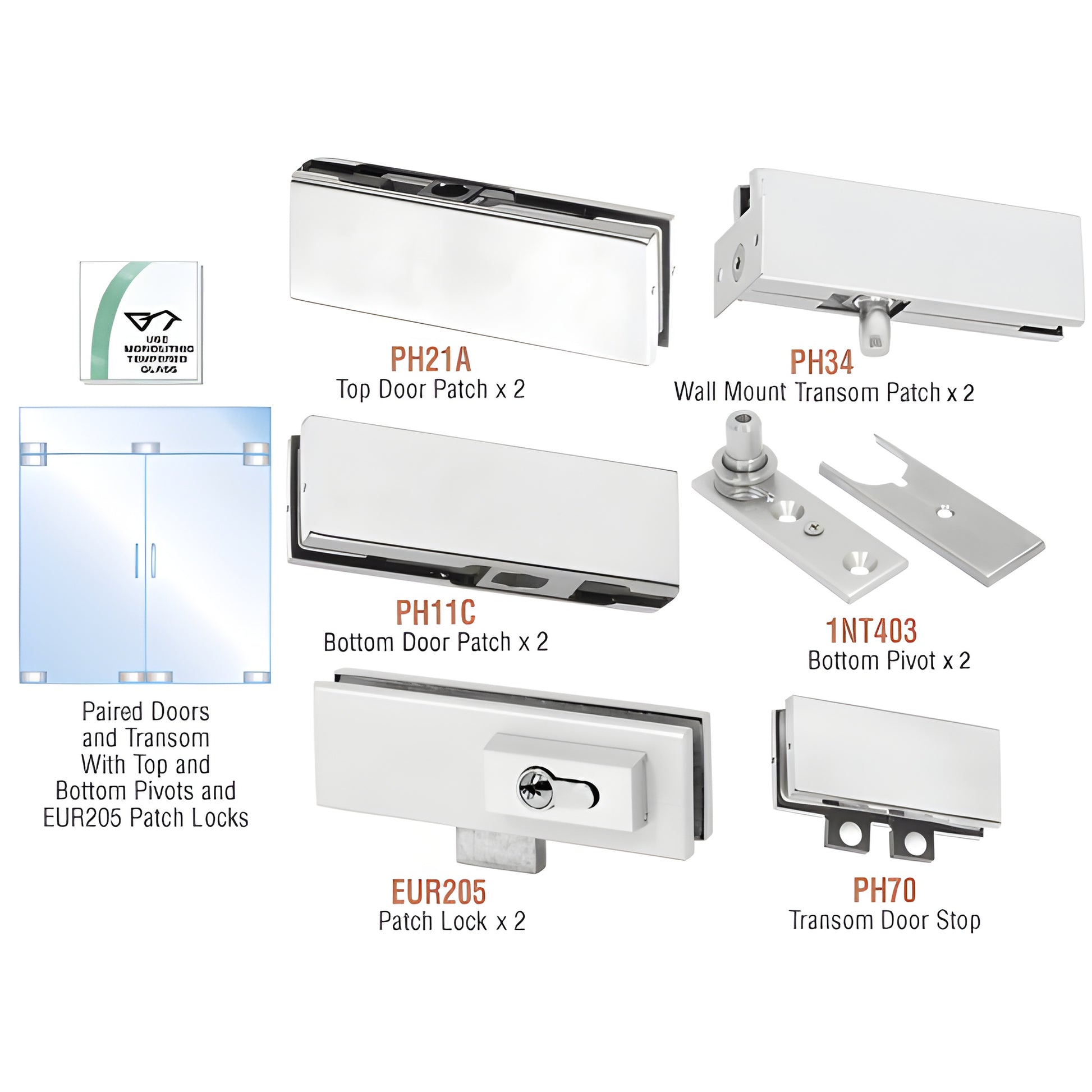

Kit Contains:
- 2 - PH34 Wall Mount Transom Patches
- 2 - PH21A Top Door Patches
- 2 - PH11C Bottom Door Patches
- 1 - PH70 Transom Door Stop
- 2 - 1NT403 Bottom Pivots
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)
Kits with locks include two Cat. No. EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes, CRL follows GANA Guidelines.
Order SKU PHE6LA or contact CRL Customer Service for quotes, glazing requirements, and installation support.
