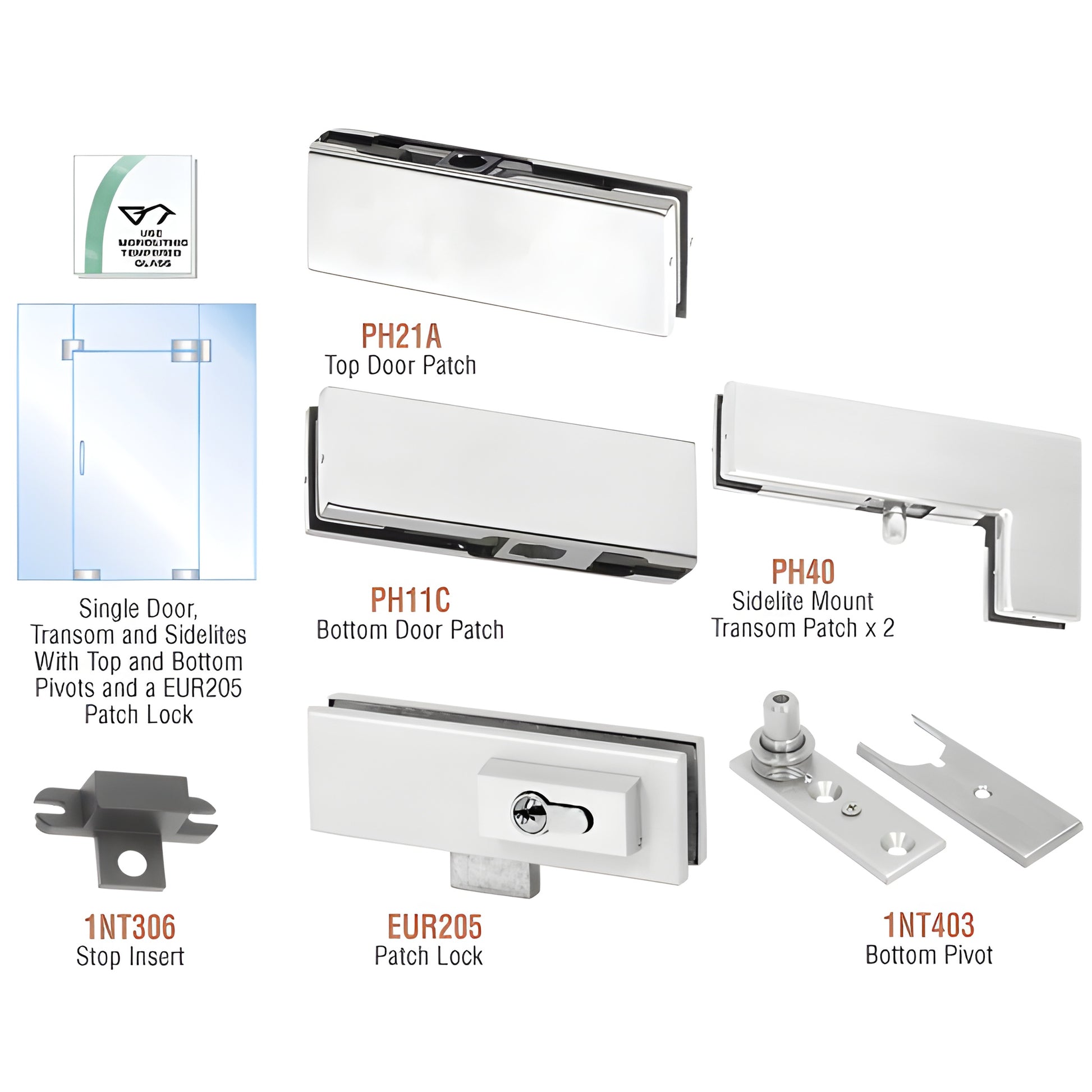

• CRL PHE5LA satin anodized European glass door pivot kit with top/bottom patches, pivots, stop and patch lock.
1 1

CRL

CRL Satin Anodized Patch Kit for Frameless Glass Door w/ Lock

CRL Satin Anodized Patch Kit for Frameless Glass Door w/ Lock

$741.00 CAD
$741.00 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE5LA
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Sidelite-Single With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • 'All-Glass' Look
  • Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available with or without locks
CRL PHE5 European Door Kits

Complete hardware kit for a free-swinging glass door with fixed transom and two sidelites (does not include glass or additional supports for transom/sidelites). Pivot setback: 2-9/16" (65 mm). Compatible with a separately ordered floor closer with tapered spindle. Ideal for frameless glass pivot doors and commercial glass partition installations.

Kit Contains:
  • 2 - PH40 Sidelite Mount Transom Patches
  • 1 - PH21A Top Door Patch
  • 1 - PH11C Bottom Door Patch
  • 1 - 1NT306 Stop Insert
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must have holes and notches)

Kits with lock include one EUR205 patch lock. Cylinders, thumbturns, and keepers sold separately.

NOTE: For maximum door sizes and load limits, CRL follows GANA Guidelines. Verify glass hole/notch requirements with your glass fabricator.

Most shipping weights are approximate and have not been verified. If exact weight is required for shipping cost calculation, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.

Order the CRL PHE5LA European glass door pivot kit today to complete your frameless glass door project.
