CRL Satin Anodized RH European Bottom Door Patch Fitting
CRL Satin Anodized RH European Bottom Door Patch Fitting
Regular price
$96.59 CAD
Regular price
Sale price
$96.59 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH11ERA
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Satin Anodized |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Handing | Right Hand |
| Insert Type | 1NT305R |
| Pivot Setback | 2-9/16 |
| Series | European |
| Type | Bottom |
| With | Insert Yes |
Overview
This product is designed for use with 3/8" or 1/2" (10 or 12 mm) tempered glass, featuring a 2-9/16" (65 mm) pivot setback, making it ideal for Herculite™+ style doors.
It requires glass fabrication, including a 3/4" (19 mm) diameter hole and corner notch, with templates available on crlaurence.com.

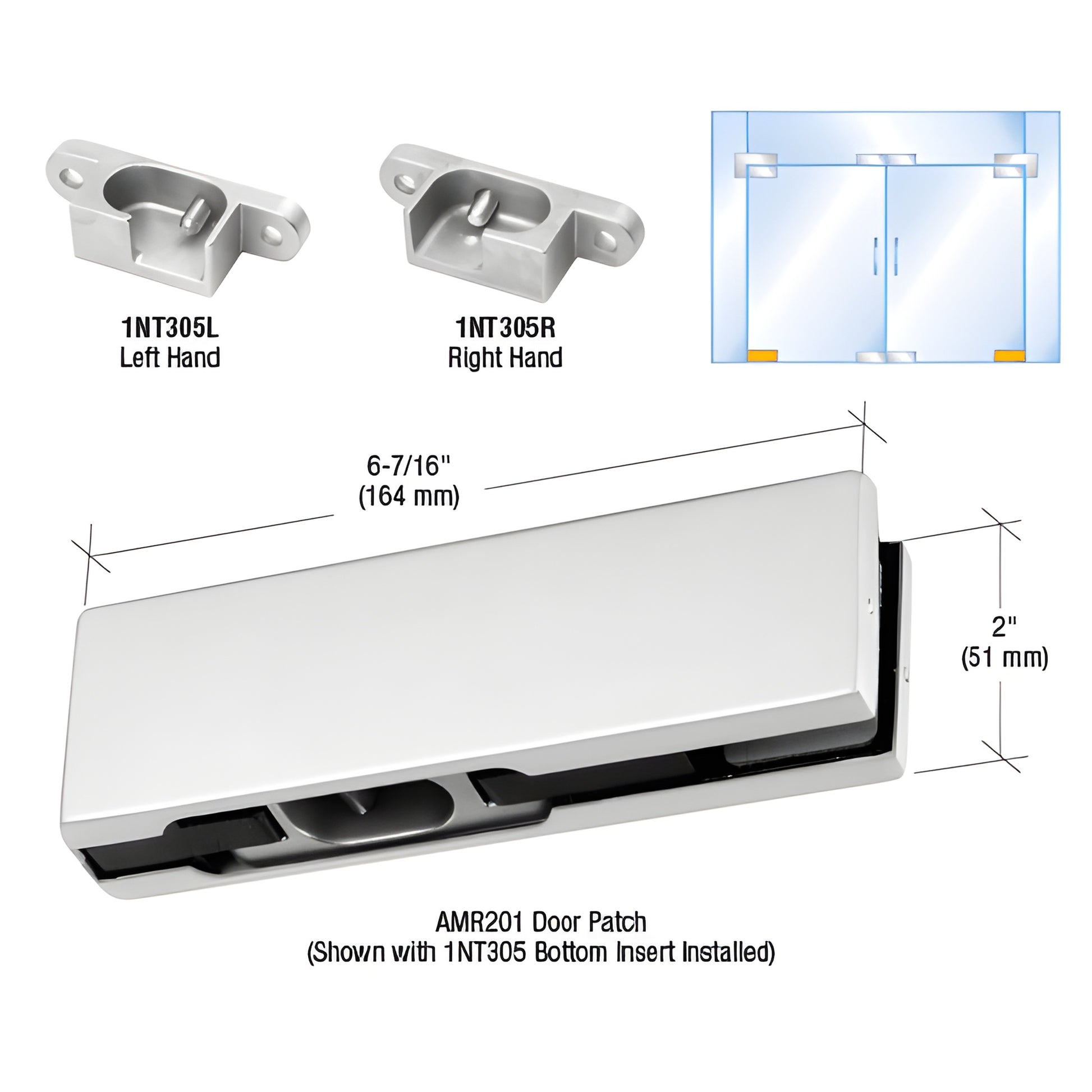

The package includes one AMR201 door patch, 1NT305L and 1NT305R bottom door patch inserts, and gaskets for the specified glass thicknesses.
For optimal performance, CRL adheres to GANA guidelines for maximum door size.
Note that product images may vary in color due to monitor settings and shipping weights are approximate; contact CRL Customer Service for precise details.
It requires glass fabrication, including a 3/4" (19 mm) diameter hole and corner notch, with templates available on crlaurence.com.
The package includes one AMR201 door patch, 1NT305L and 1NT305R bottom door patch inserts, and gaskets for the specified glass thicknesses.
For optimal performance, CRL adheres to GANA guidelines for maximum door size.
Note that product images may vary in color due to monitor settings and shipping weights are approximate; contact CRL Customer Service for precise details.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
