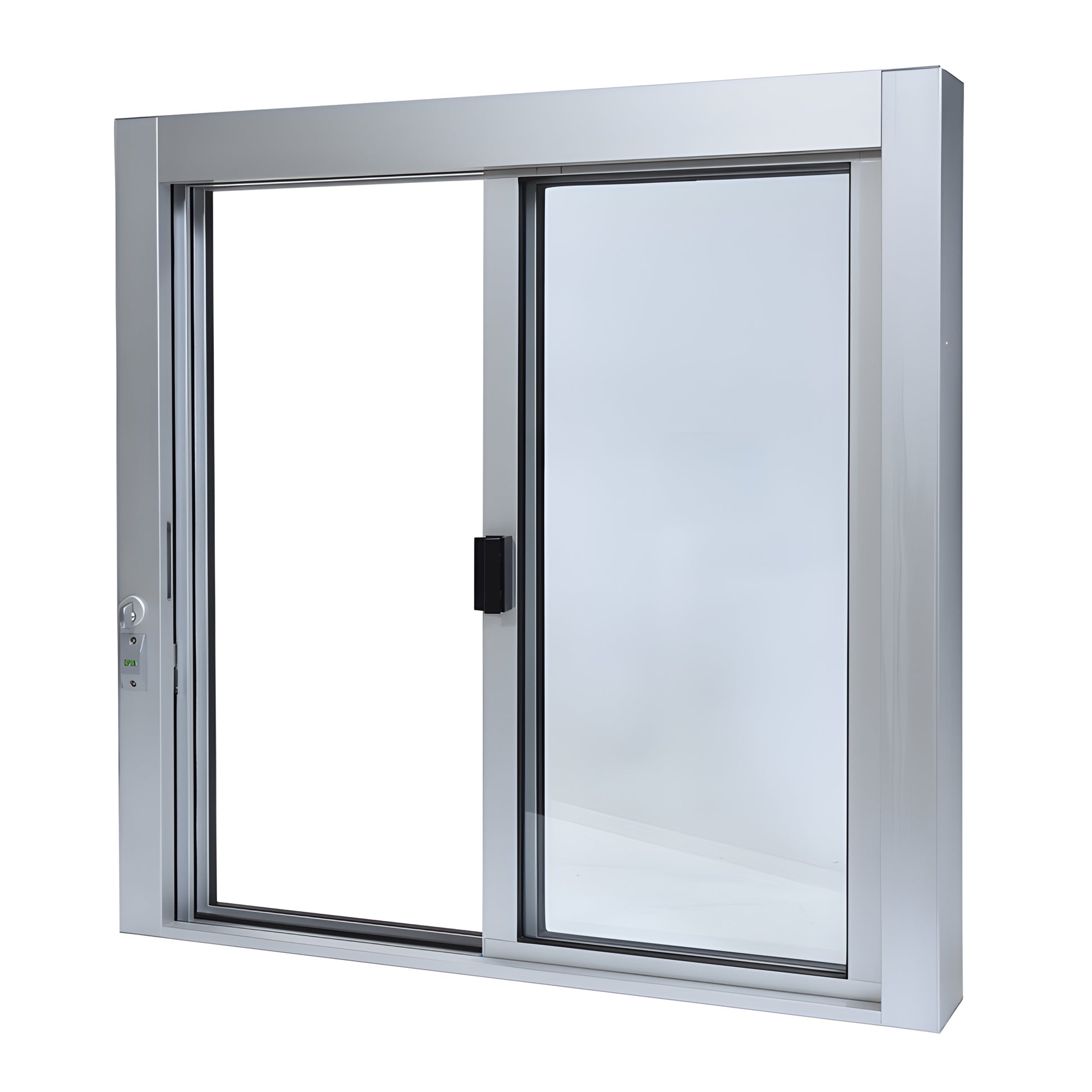

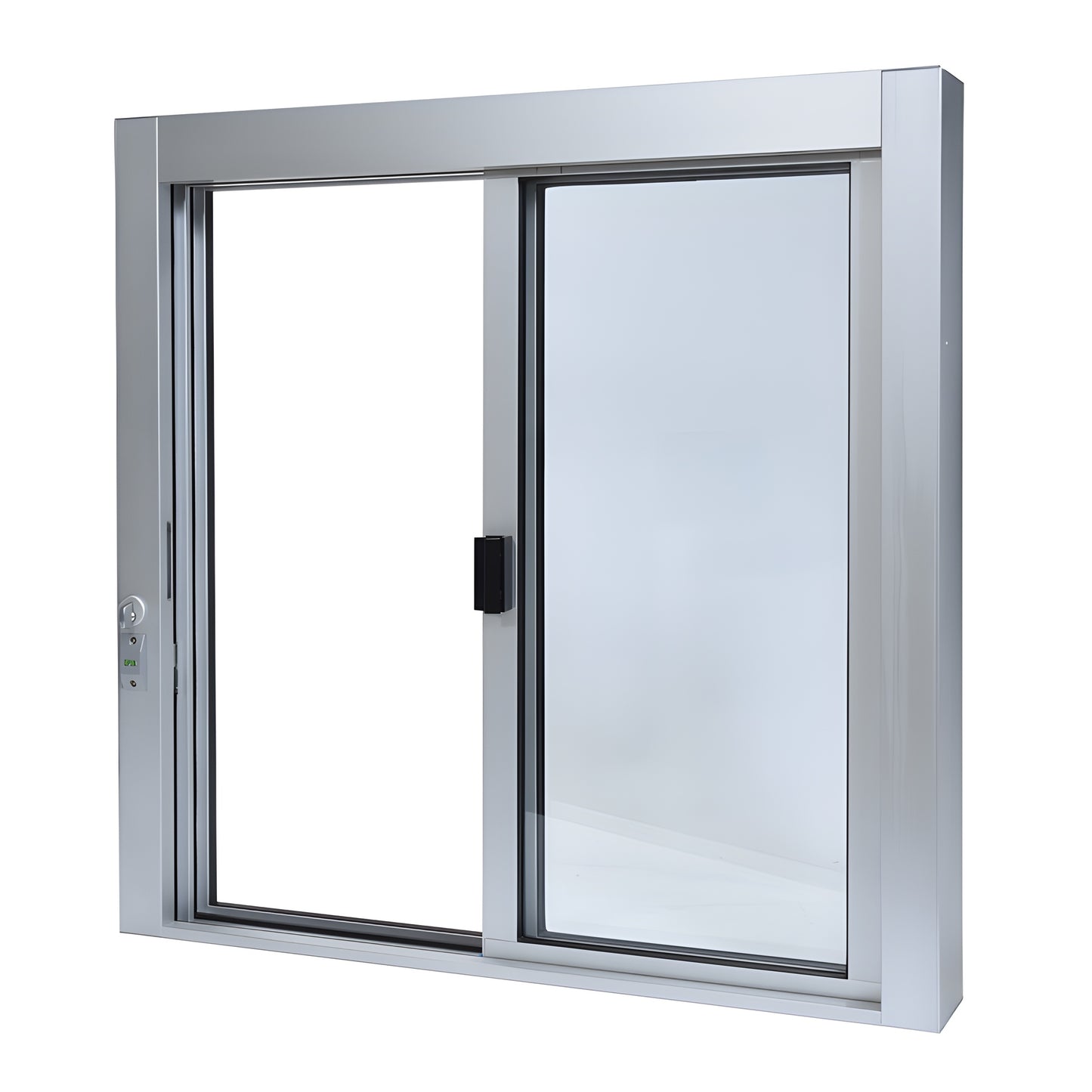

CRL Satin Anodized Self-Closing Service Window, Glazed, Bottom Track
CRL Satin Anodized Self-Closing Service Window, Glazed, Bottom Track
Regular price
$3,711.97 CAD
Regular price
Sale price
$3,711.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCDW3636X0GA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
XO
Finish/Color
Satin Anodized
Frame Depth
4-1/2 in. (114.3 mm)
Glazed
Yes
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
1/4" Clear Tempered Glass
Handle Type
Self Latching
Material
Aluminum
Screen
No
Security Feature

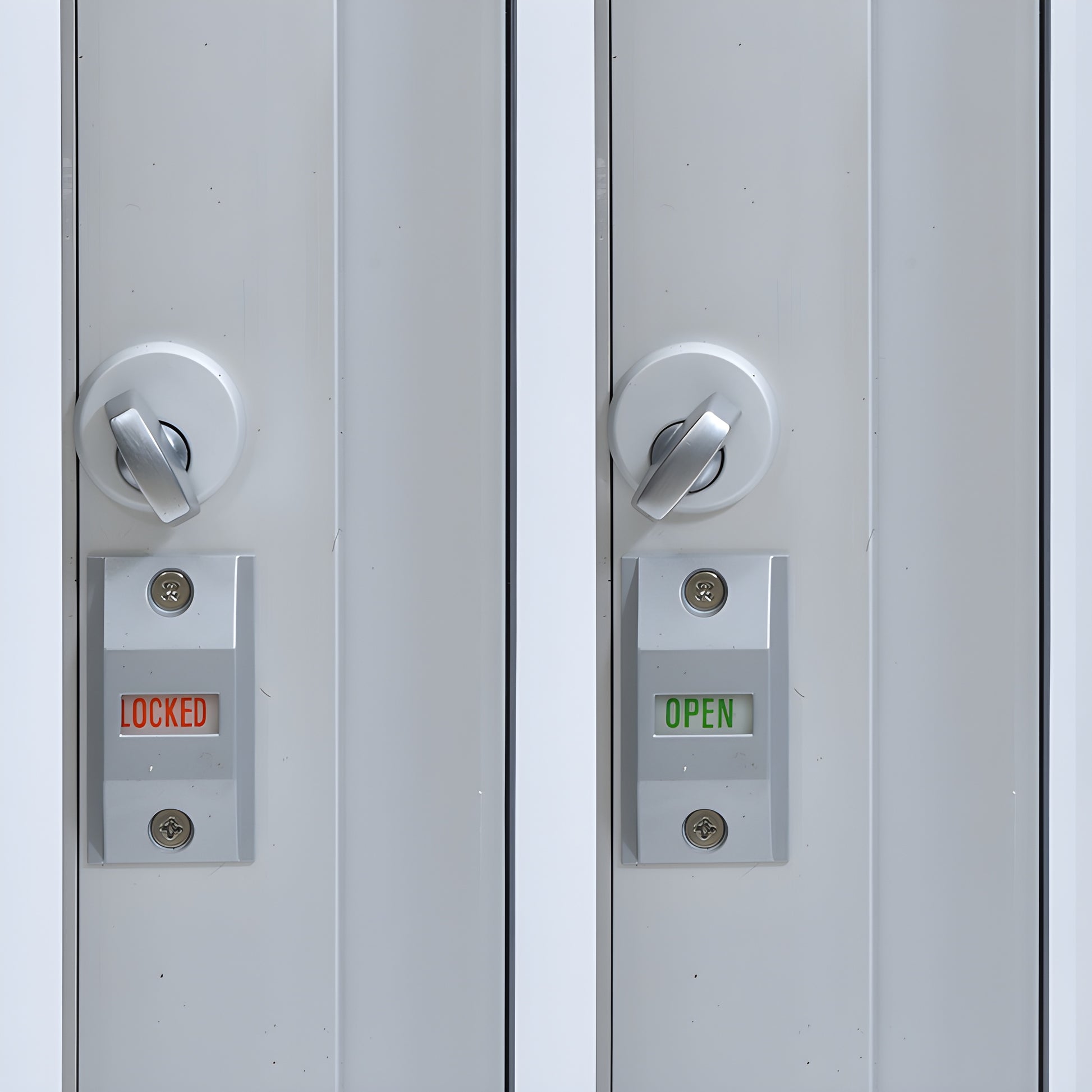

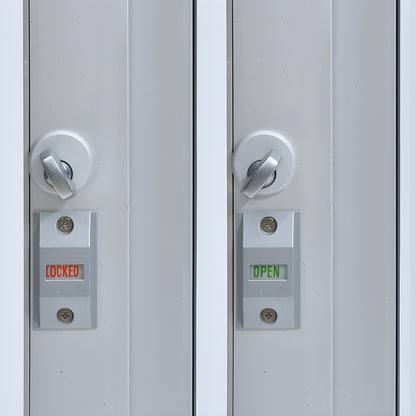

Thumbturn Lock With Indicator
Usage
Interior,Exterior
Overview
- Ships factory-glazed with 1/4" clear tempered glass

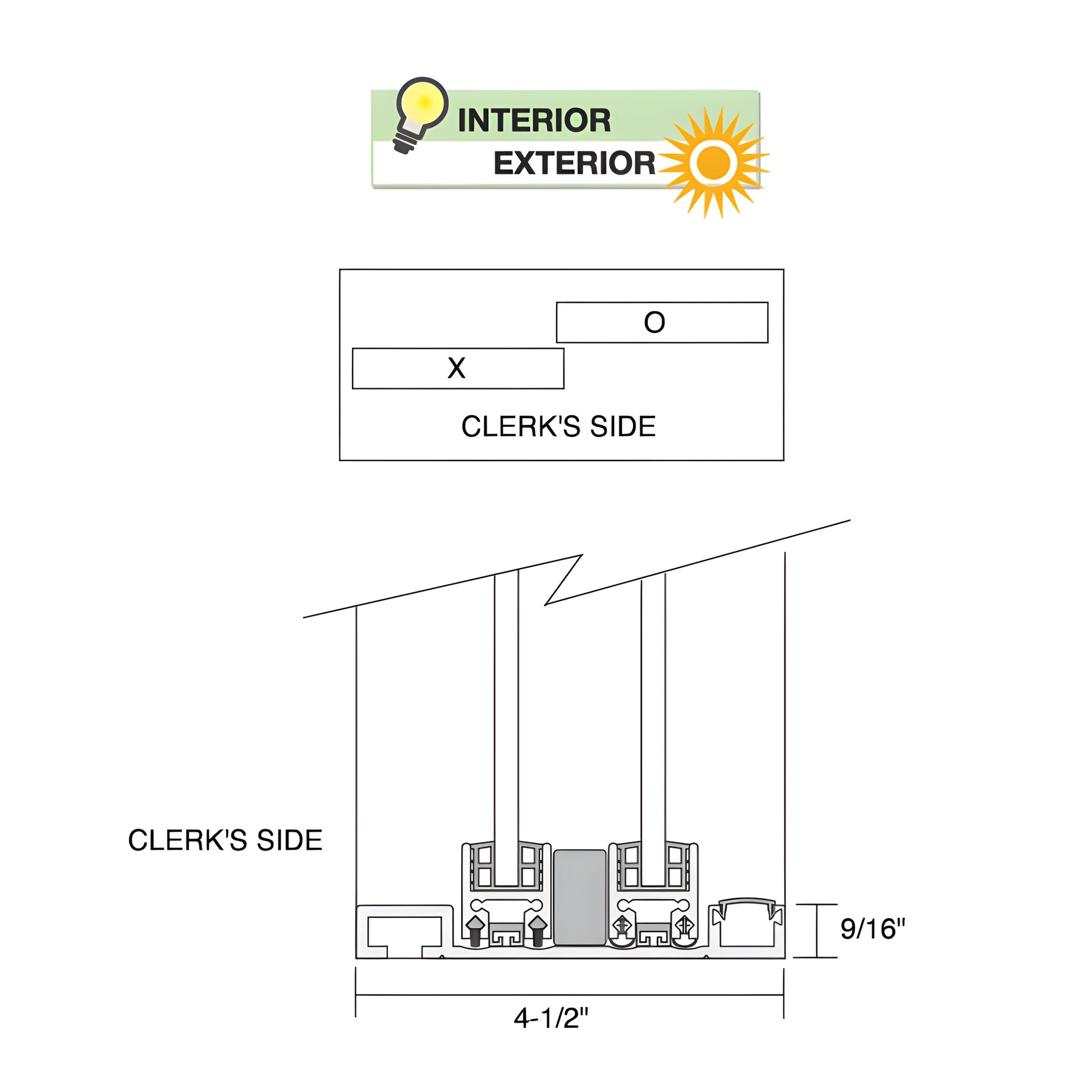

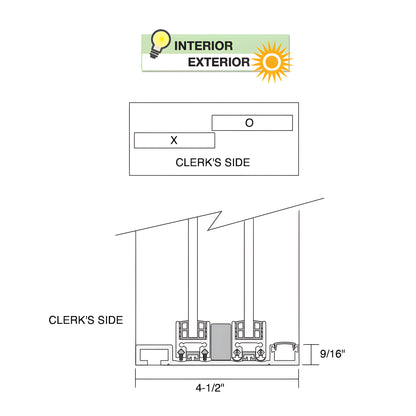

- XO clerkside configuration (X = sliding panel)
- Thumb turn and self-latching handle; full bottom track; manual open / self-closing
- Popular 35-1/2" W x 35-3/4" H frame fits 36" x 36" opening
CRL standard-size self-closing service windows (SKU: SCDW3636X0GA) ship fully assembled—ready to glaze or factory glazed and ready to install. Built for heavy-duty commercial use such as drive-thru and walk-up service windows, these self-closing service windows also suit interior applications requiring enhanced security and durable performance.
The self-closing function uses a hydraulic mechanism concealed in the header for smooth, reliable operation. Standard models are offered in Satin Anodized or Duranodic Bronze finish. Choose from half-track (no track under the sliding panel for clear counter passage) or stainless steel step-sill with water-dam for exterior applications. Custom versions are available upon request.
Product Warning:
Heavy-duty service windows; not intended to serve as the primary building seal in severe weather conditions.
Order SKU SCDW3636X0GA or contact CRL for a custom quote and lead time.
