CRL

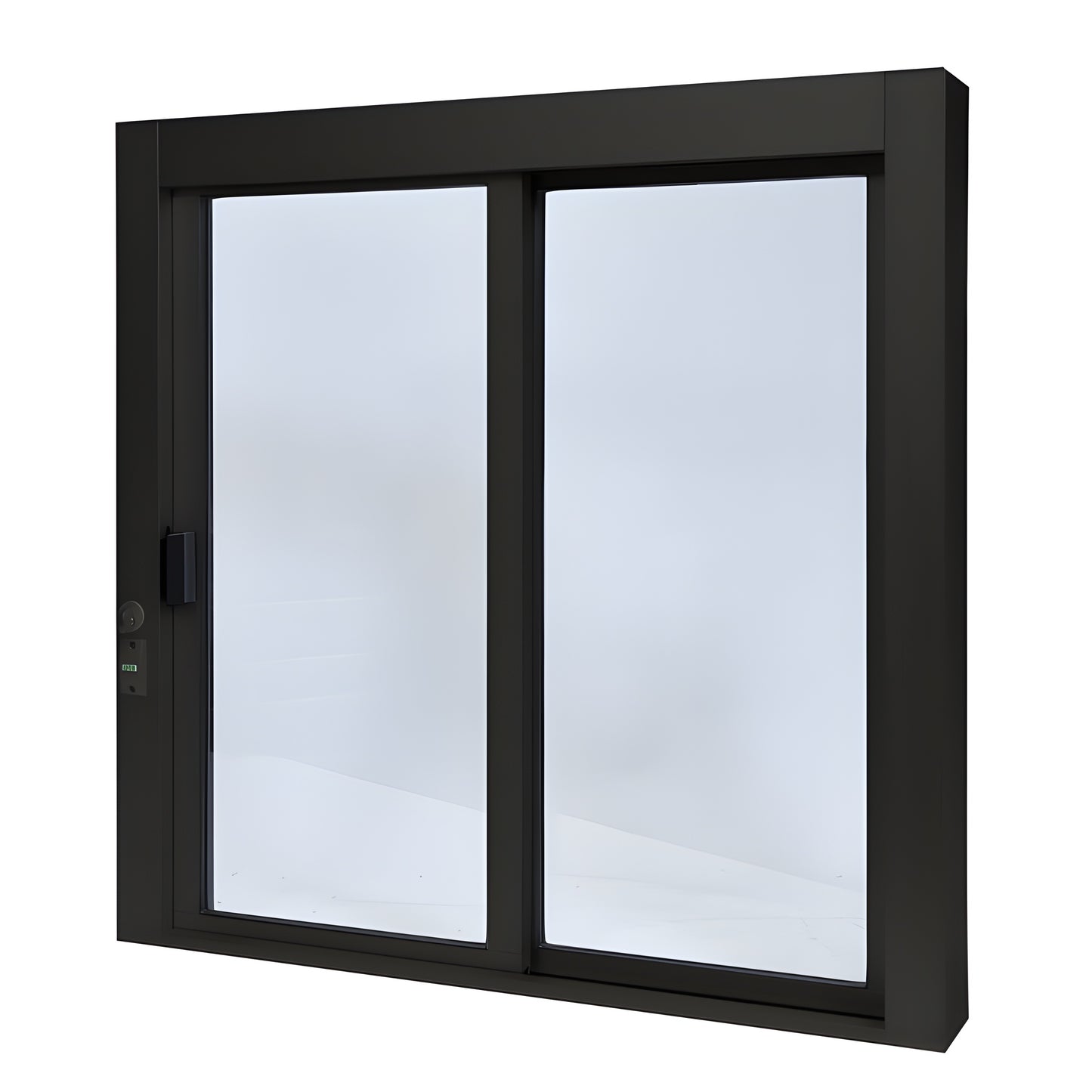

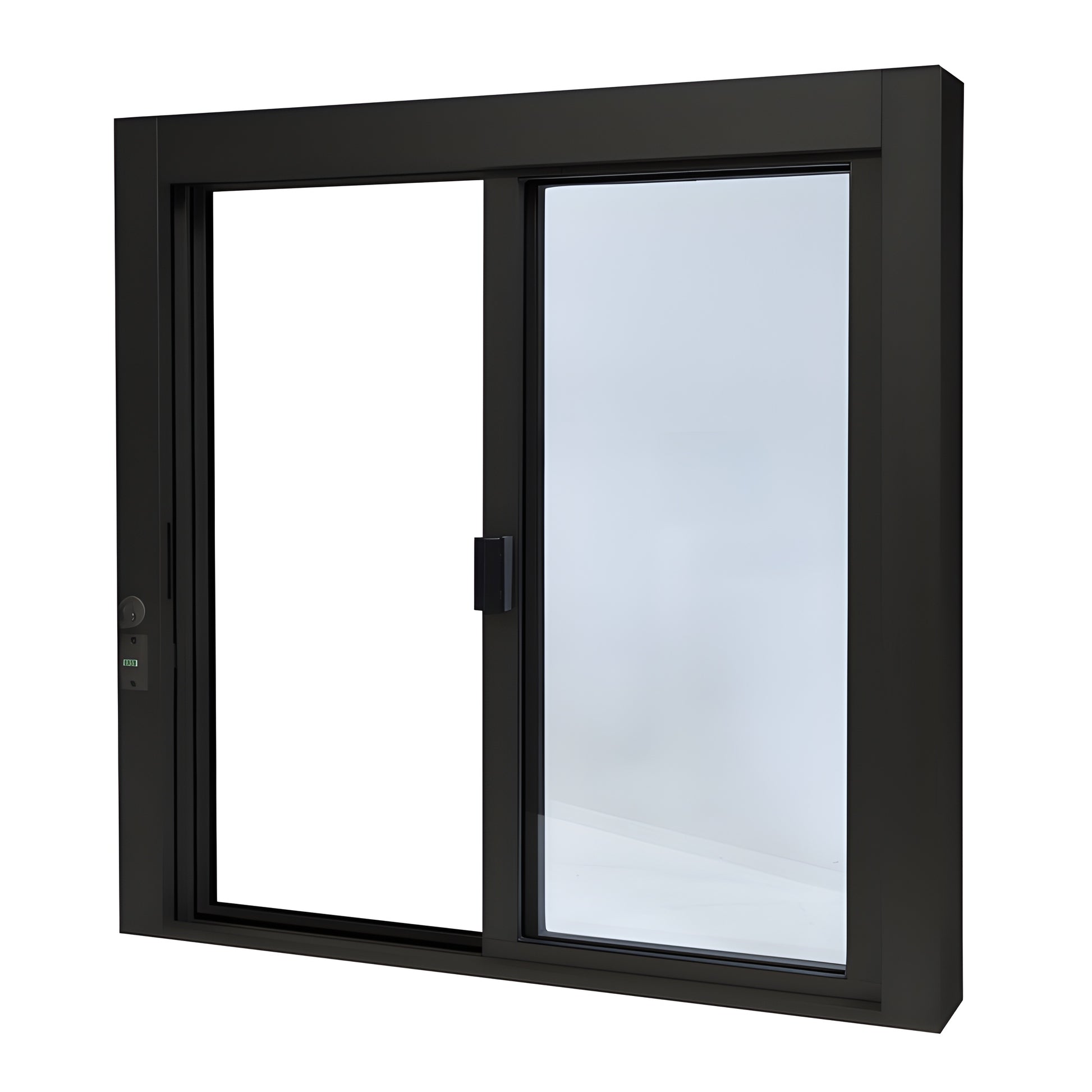

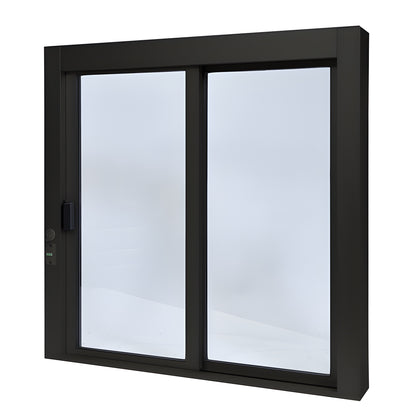

CRL Duranodic Bronze Self-Closing Service Window with Bottom Track

CRL Duranodic Bronze Self-Closing Service Window with Bottom Track

Regular price $3,978.96 CAD
Regular price Sale price $3,978.96 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# SCDW3636X0GDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
XO
Finish/Color
Duranodic Bronze Anodized
Frame Depth
4-1/2 in. (114.3 mm)
Glazed
Yes
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
1/4" Clear Tempered Glass
Handle Type
Self Latching
Material
Aluminum
Screen
No
Security Feature

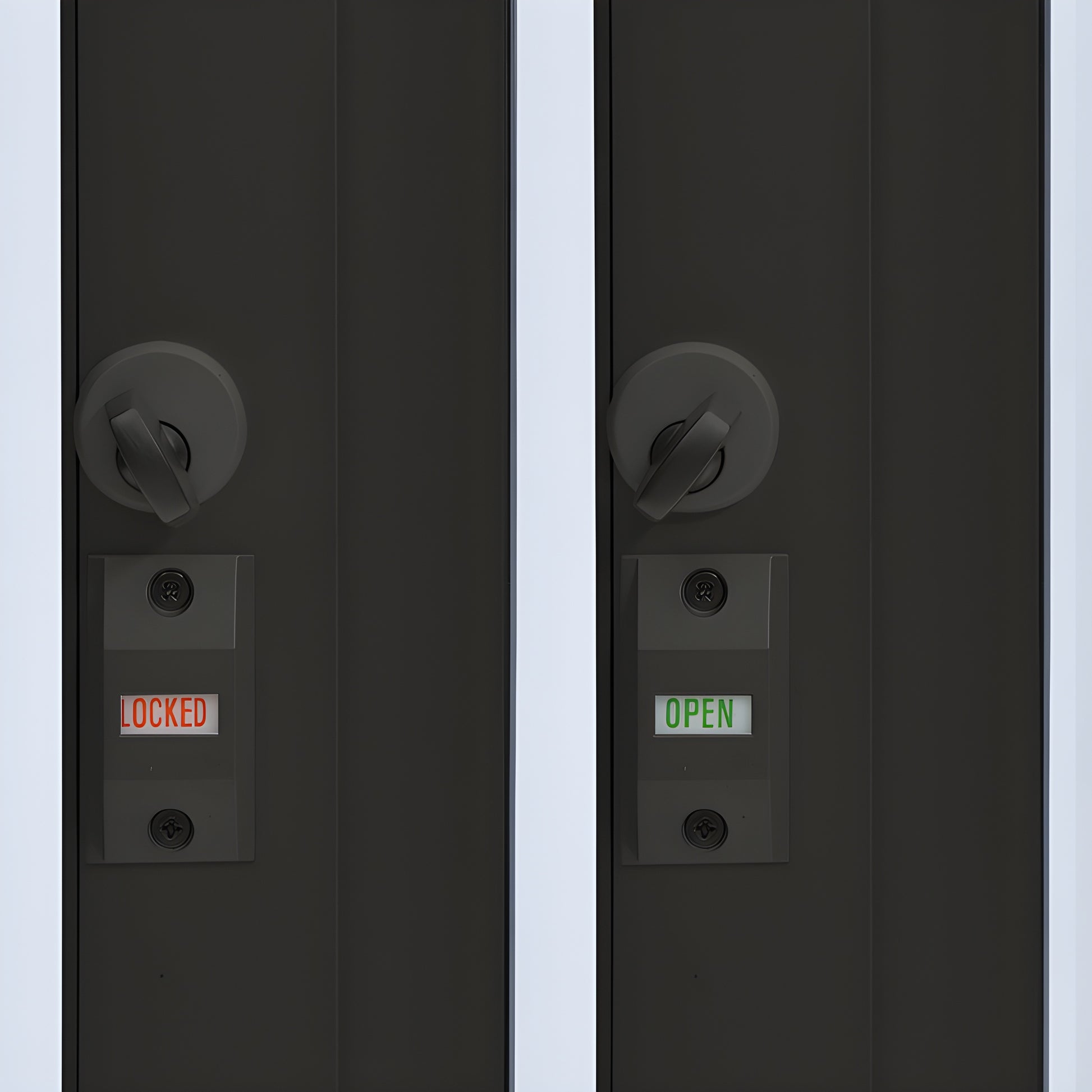

Thumbturn Lock With Indicator
Usage
Interior,Exterior

Overview

  • Ships factory-glazed with 1/4" clear tempered glass

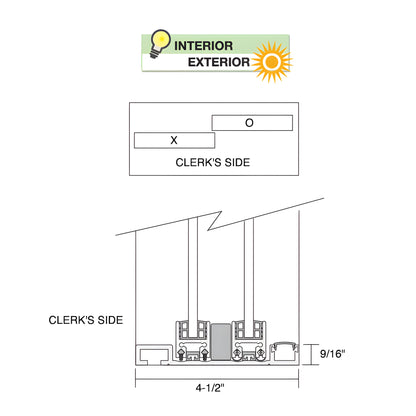

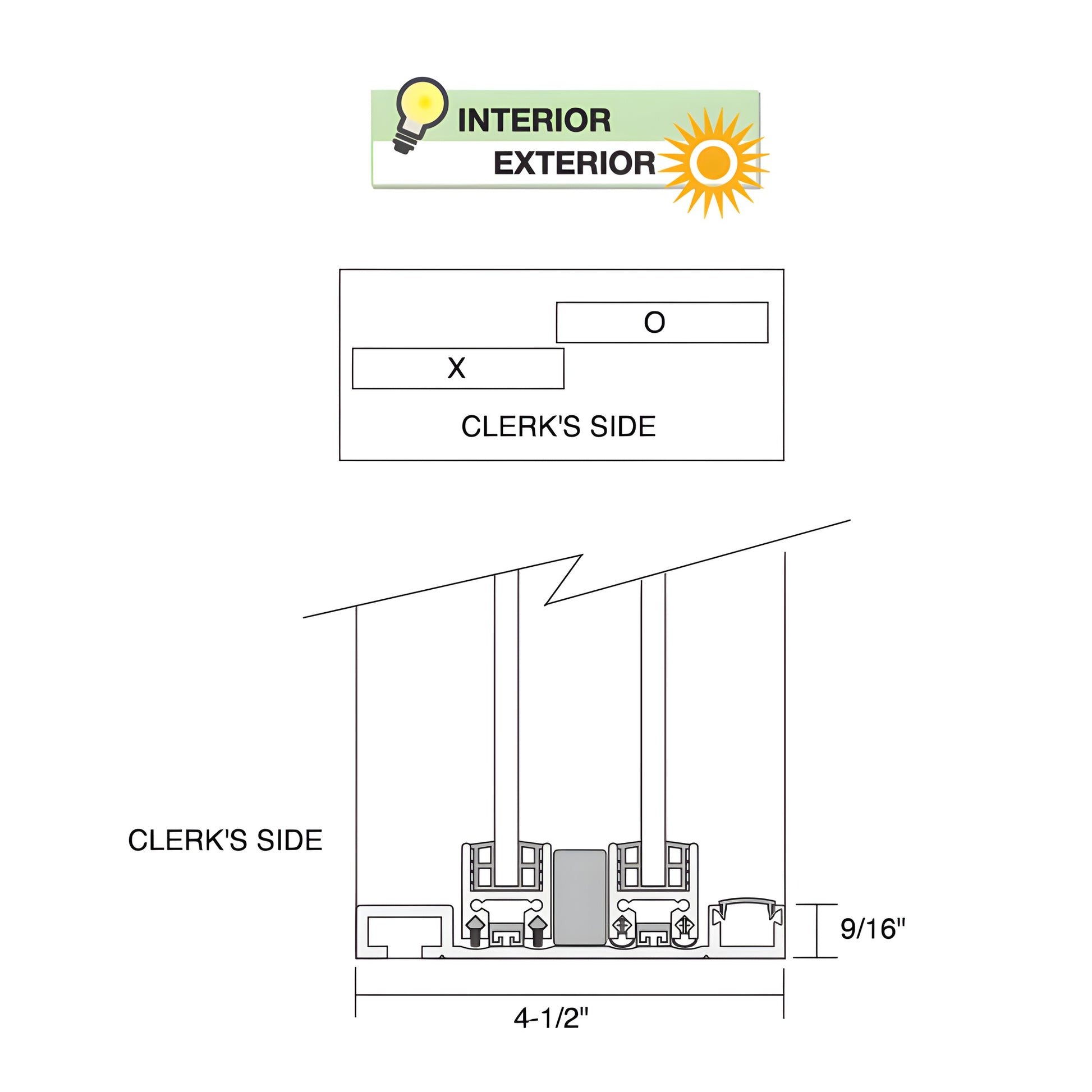

  • XO clerkside configuration (X = sliding panel)
  • Thumb-turn, self-latching handle
  • Popular 35-1/2" W x 35-3/4" H frame fits 36" x 36" opening
  • Full bottom track; manual open with self-closing hydraulic header

CRL standard-size Self-Closing Service Window (SKU: SCDW3636X0GDU) ships fully assembled and can be ordered factory glazed or unglazed for field glazing. Built for heavy-duty commercial use—drive-thru service windows, walk-up transaction counters, and interior security/service openings—this self-closing service window combines durability and security with easy installation.


Key differentiators and features:

  • Concealed hydraulic self-closing mechanism in the header for consistent automatic closing and reduced maintenance.
  • 1/4" clear tempered glass for impact resistance and safety—available factory glazed for faster install.
  • Finish options: satin anodized or Duranodic Bronze to match commercial storefronts and service counters.
  • Bottom-condition options: half-track (no track under sliding panel for unobstructed pass-through) or stainless-steel step-sill with water-dam for exterior installations.
  • Available in standard sizes with CRL custom quoting for non-standard or specialized requirements.

Applications: Drive-thru service windows, walk-up transaction windows, security counters, interior service openings, and heavy-use commercial environments where a reliable self-closing window is required.

Product Warning:
Heavy-duty service window; not intended to serve as a primary building seal for severe weather conditions.

Most shipping weights are approximate and have not been verified. If you need exact shipping weight to calculate costs, contact CRL Customer Service before ordering. Product images are representative; actual color may vary depending on your monitor settings.


Order SKU SCDW3636X0GDU or contact CRL for custom sizes and finish options—ready to install, built for commercial use.

Specifications
