CRL Satin Anodized Self-Closing Service Window w/ Half-Track
CRL Satin Anodized Self-Closing Service Window w/ Half-Track
Regular price
$4,235.89 CAD
Regular price
Sale price
$4,235.89 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCDW48360XGA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Frame Depth
4-1/2 in. (114.3 mm)
Glazed
Yes
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
1/4" Clear Tempered Glass
Handle Type
Self Latching
Material
Aluminum
Screen
No
Security Feature
Thumbturn Lock With Indicator
Sill Condition
Aluminum Half Bottom Track
Usage
Interior,Exterior

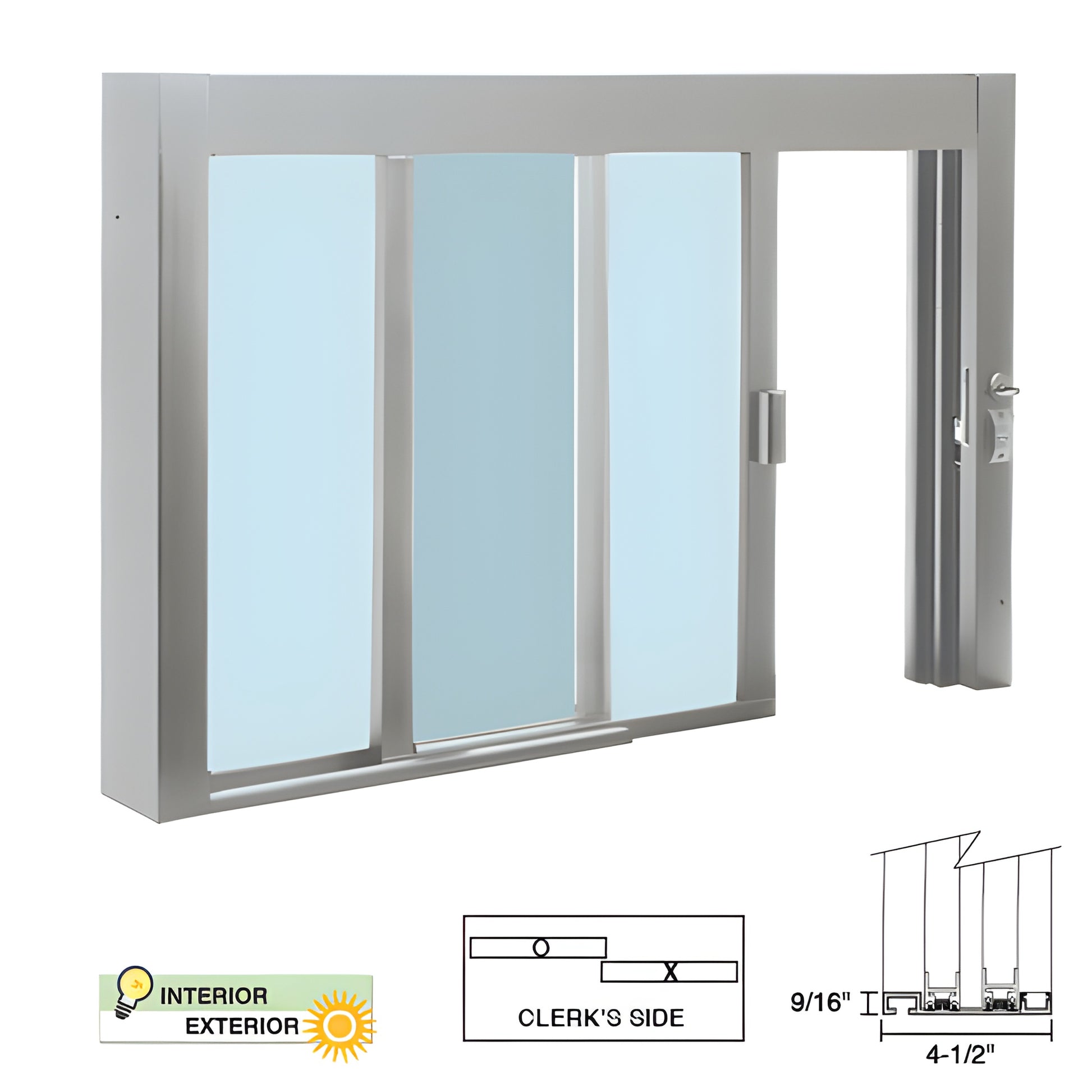

Overview
- Ships factory glazed with 1/4" clear tempered glass
- OX clerkside configuration (X = sliding panel)
- Thumb turn and self-latching handle
- Popular 47-1/2" W x 35-3/4" H frame size — fits 48" x 36" opening (SKU: SCDW48360XGA)
- No track under sliding panel for unobstructed counter passage; manual open with hydraulic self-closing
CRL standard-size self-closing service windows ship fully assembled and can come factory glazed or ready-to-glaze. Built for heavy-duty commercial use (drive-thru, walk-up service), these self-closing service windows also suit interior applications that require enhanced security and durable performance.
The self-closing action is driven by a concealed hydraulic mechanism in the header. Standard finishes: satin anodized or duranodic bronze. Two bottom conditions available: half-track (no track under sliding panel for clear counter access) or stainless steel step-sill with water-dam for exterior use. CRL can quote custom high-quality service window configurations to meet project requirements.
Product Warning:
Heavy-duty service window; not intended as a primary building seal for severe weather conditions.
Order the CRL self-closing service window SCDW48360XGA for reliable commercial drive-thru and walk-up performance — add to cart or contact sales for a custom quote.
