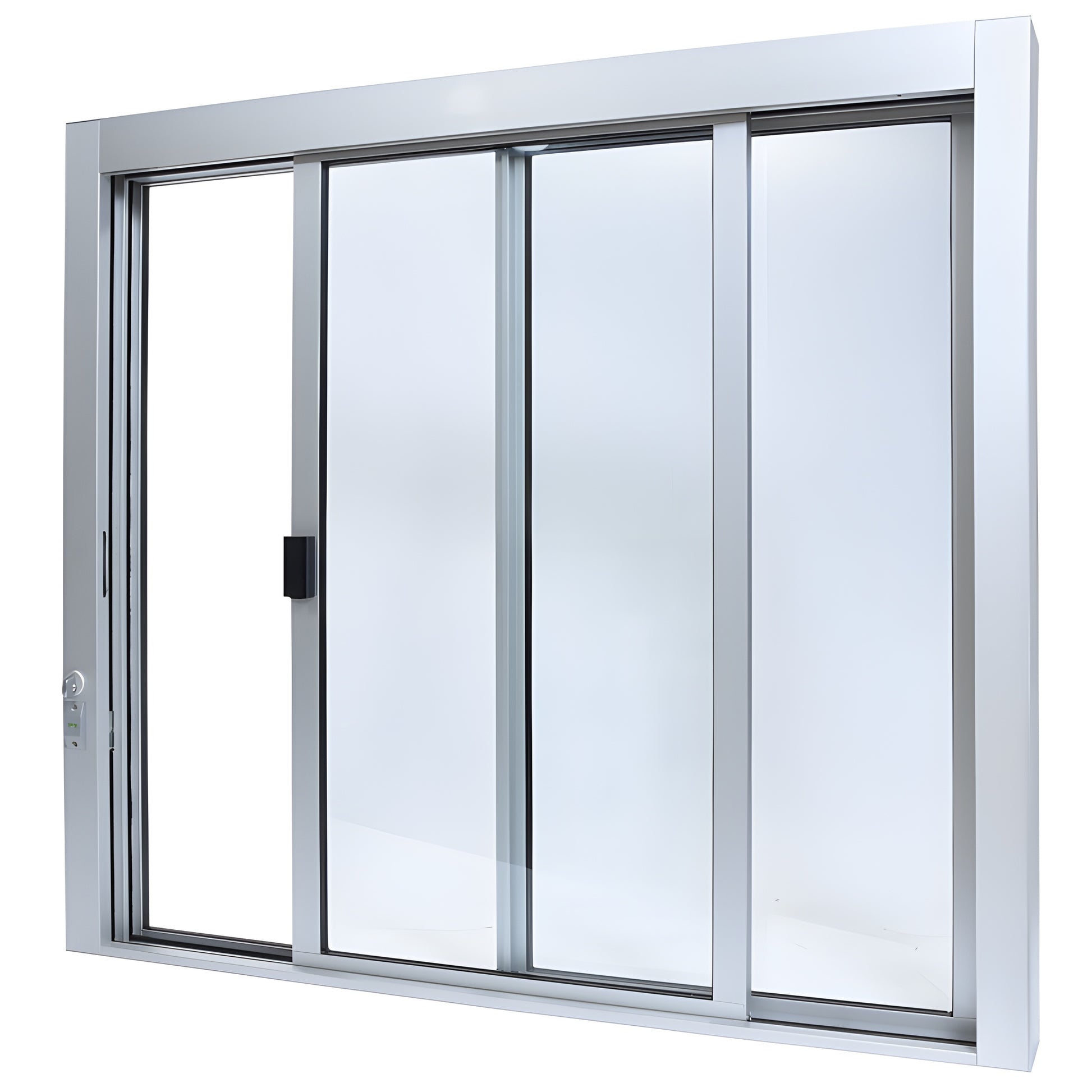

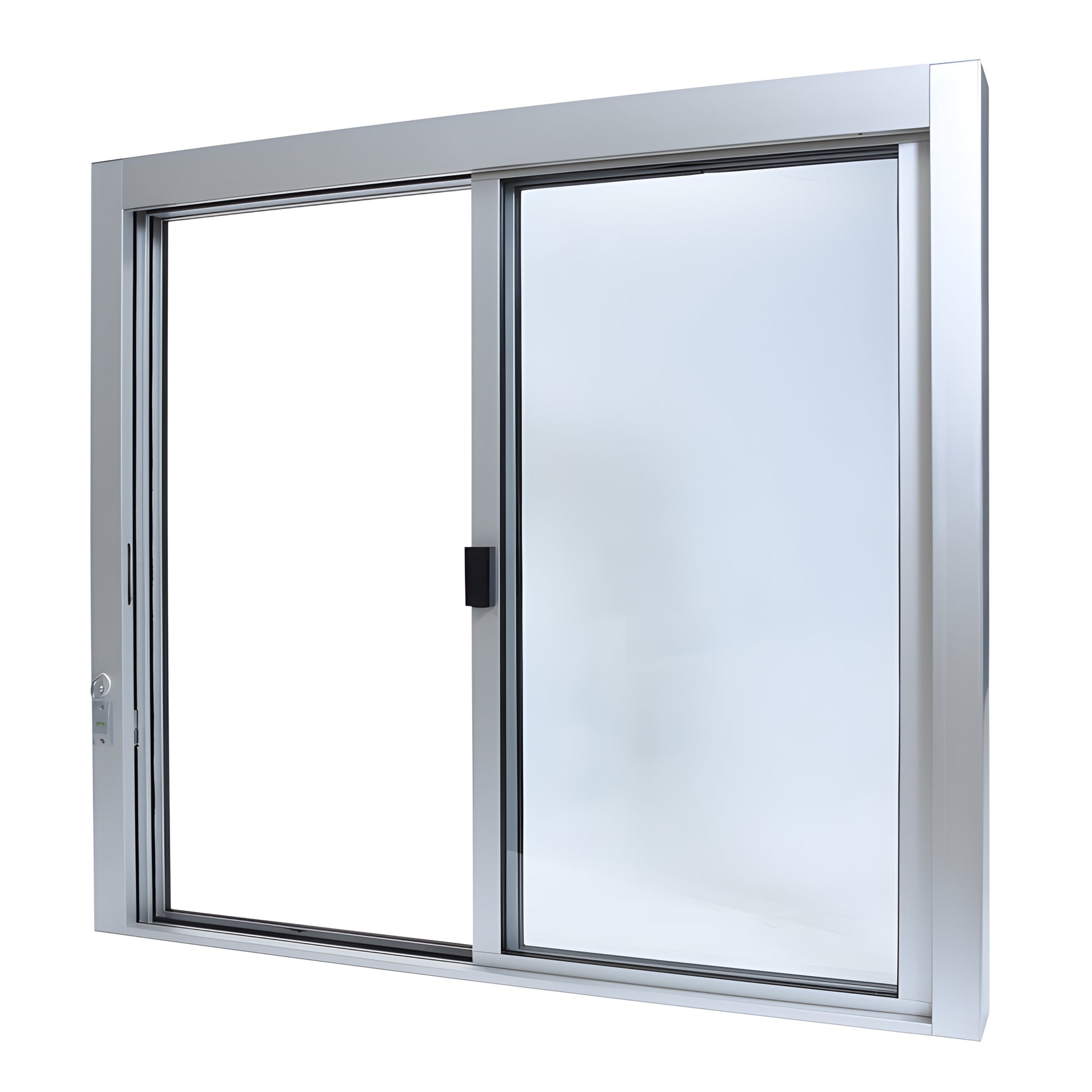

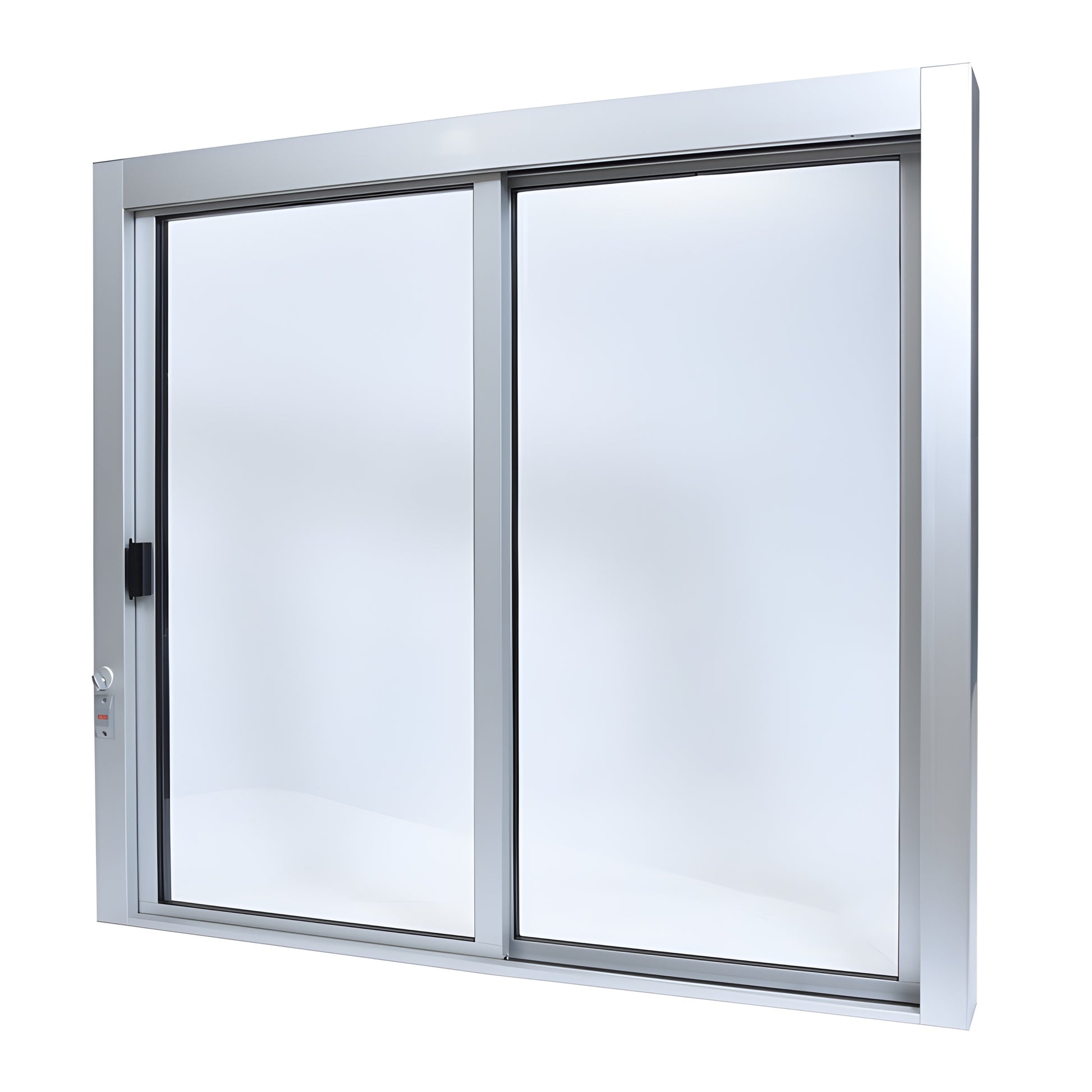

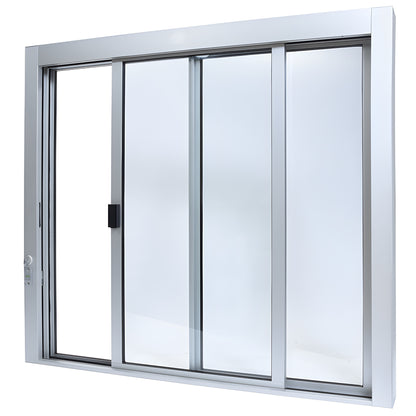

CRL Satin Anodized Self-Closing Glazed Service Window - Bottom Track
CRL Satin Anodized Self-Closing Glazed Service Window - Bottom Track
Regular price
$4,062.20 CAD
Regular price
Sale price
$4,062.20 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCDW4844X0GA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
XO
Finish/Color
Satin Anodized
Frame Depth
4-1/2 in. (114.3 mm)
Glazed
Yes
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
1/4" Clear Tempered Glass
Handle Type
Self Latching
Material
Aluminum
Screen
No
Security Feature

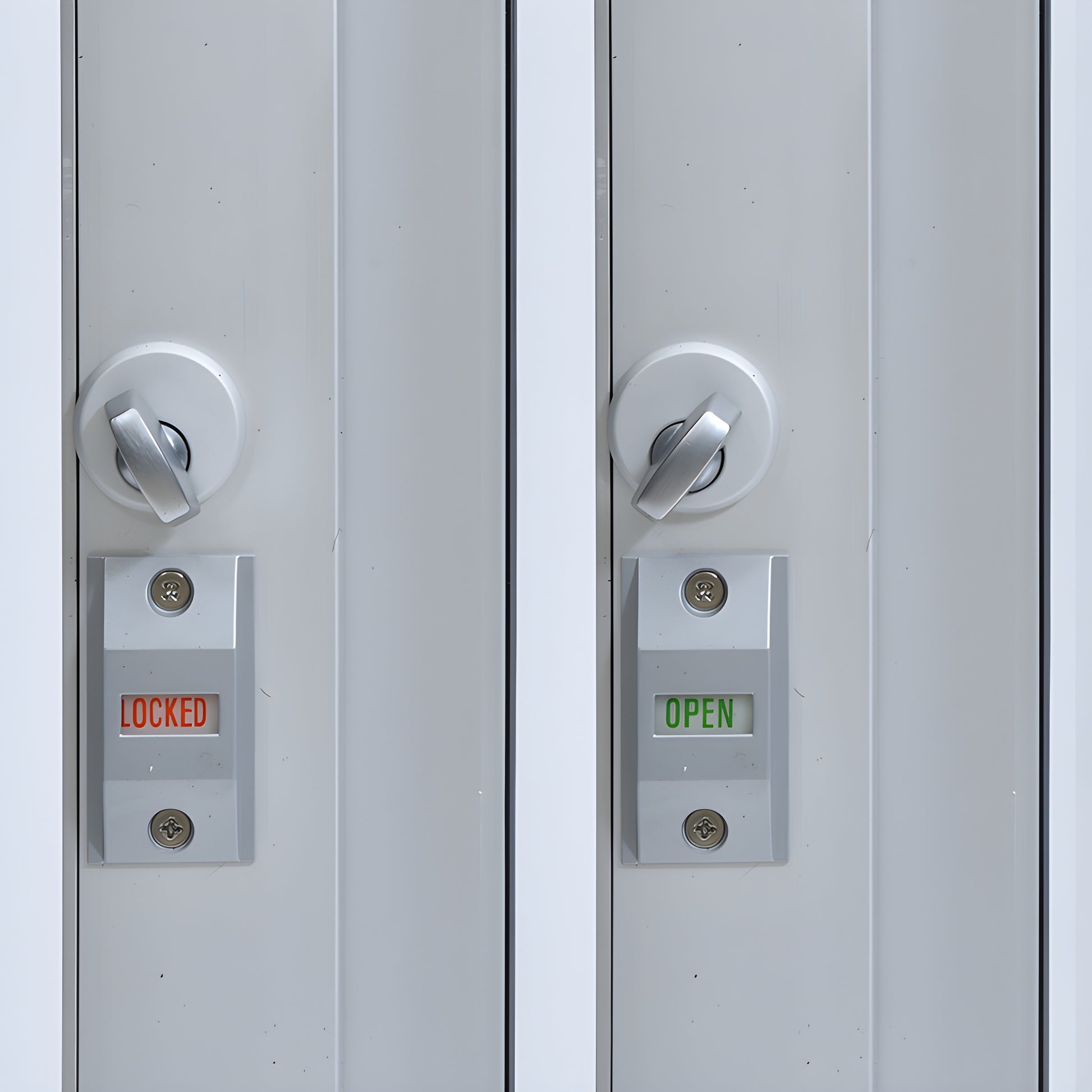

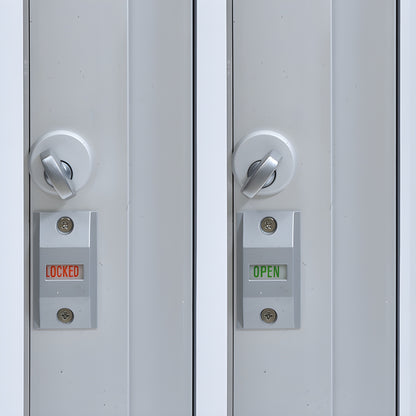

Thumbturn Lock with Indicator

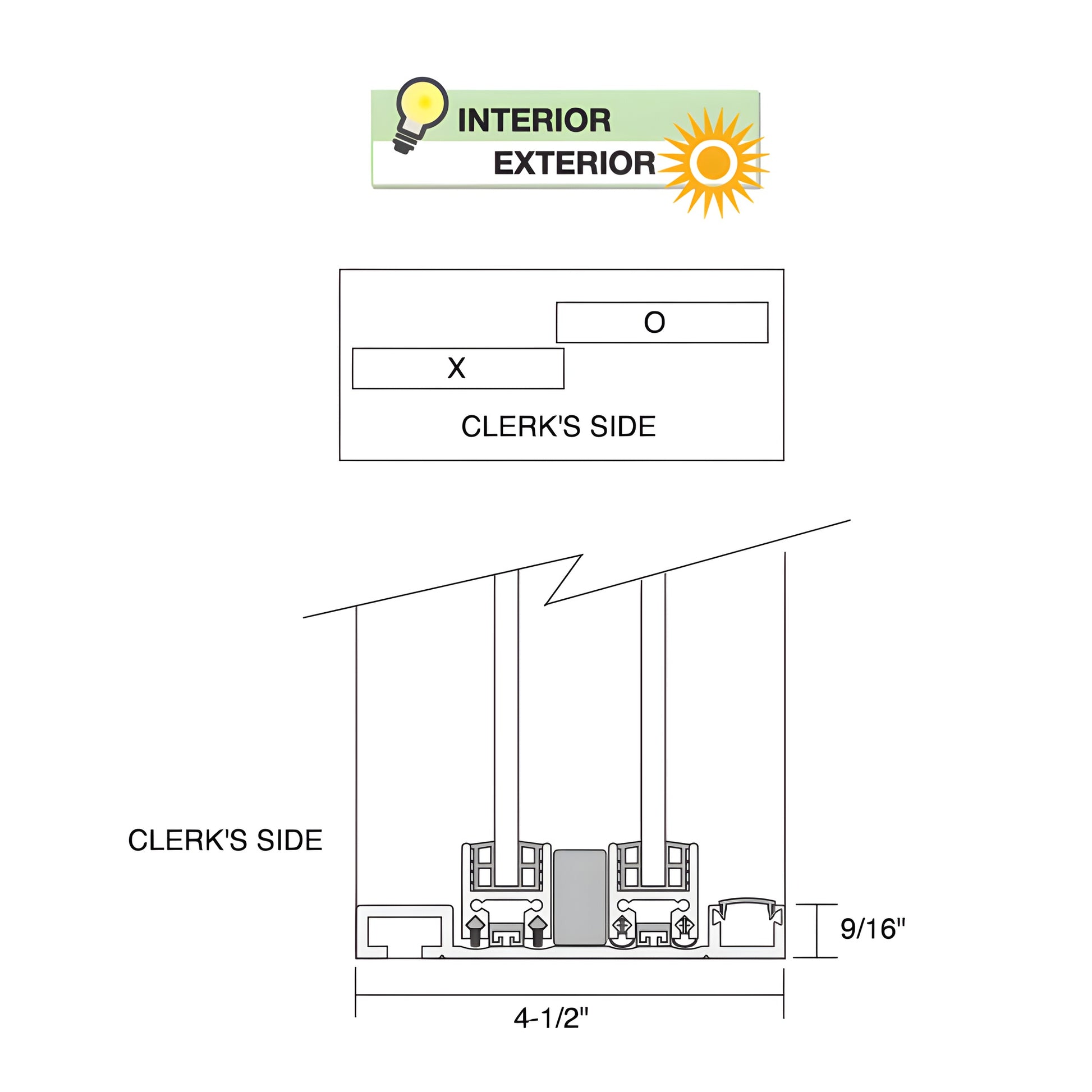

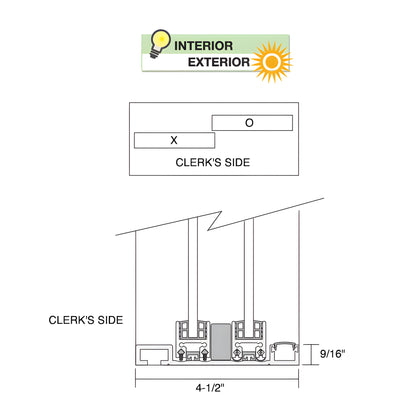

Sill Condition
Full Bottom Track
Usage
Interior,Exterior
Overview
- Ships assembled and unglazed; vinyl glazing for 1/4" or 1/2" glass
- XO clerkside configuration (X = sliding panel) for one-handed operation
- Thumb-turn, self-latching handle with hydraulic self-closing mechanism
- Popular 47-1/2" W x 43-3/4" H frame size — fits 48" x 44" opening
- Full bottom track; manual open with self-closing functionality (drive-thru & walk-up compatible)
CRL standard-size Self-Closing Service Windows (SKU SCDW4844X0GA) ship fully assembled and ready to glaze or can be factory glazed for quick installation. Built for heavy-duty commercial use—ideal as a drive-thru window, walk-up service window, or interior security window where a self-closing, tamper-resistant solution is required.
The self-closing action uses a hydraulic mechanism concealed in the header for smooth, reliable operation. Standard finishes: Satin Anodized or Duranodic Bronze. Bottom-condition options include half-track (clear passage under sliding panel) or stainless steel step-sill with water dam for exterior applications. Custom sizes and configurations are available on request.
Product Warning:
Heavy-duty service window; not intended as a primary building seal for severe weather conditions.
For pricing, factory glazing options, or a custom quote for SKU SCDW4844X0GA, contact CRL or order online today.
