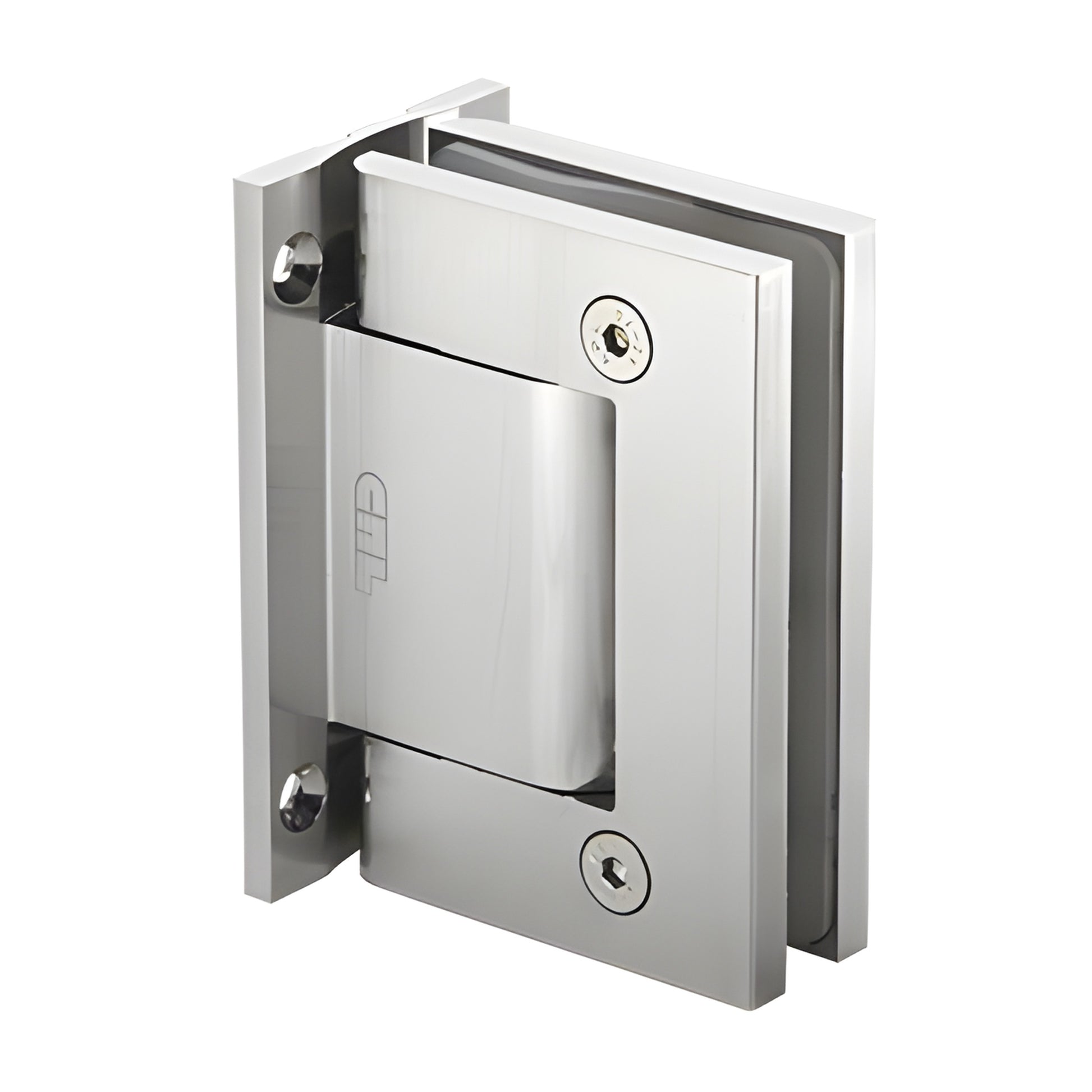

CRL Satin Anodized Vernon Oil Dynamic Full Back Plate Wall-to-Glass Hinge - Hold Open
CRL Satin Anodized Vernon Oil Dynamic Full Back Plate Wall-to-Glass Hinge - Hold Open
Regular price
$588.09 CAD
Regular price
Sale price
$588.09 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# H8010SA
Shipping Weight: 1.678 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.678 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description
Adjustable | Closing Speed Yes |
Finish/Color | Satin Anodized |
Glazing Thickness | 5/16 in., 3/8 in., 1/2 in., 9/16 in. (8 mm, 10 mm, 12 mm, 14 mm) |
Hold | Open Yes |
Material | Aluminum |
Maximum Door Width 39 in. | (991 mm) |
Mounting | Type Wall Mount |
Weight Capacity 221 lbs. | (100.2 kg) |
Width 1 in. | (25 mm) |
Overview
The CRL Full Back Plate Wall Mount Hinge is expertly designed for self-closing glass doors with thicknesses ranging from 5/16" to 9/16" (8 to 13.52 mm).
This innovative hinge swings in and out a full 90 degrees and is ideal for interior doors, providing a sleek alternative to traditional floor closers and patch fittings.
The hinge boasts an adjustable closing speed and an aluminum body available in various finishes, ensuring both functionality and style.
Suitable for doors up to 39" (1 m) wide and with a maximum weight capacity of 220 lbs.
(100 kg) per two hinges, the Oil Dynamic Hinge offers a seamless design solution without the need for extensive retrofitting, making it perfect for creating 'all-glass' doors.
This innovative hinge swings in and out a full 90 degrees and is ideal for interior doors, providing a sleek alternative to traditional floor closers and patch fittings.
The hinge boasts an adjustable closing speed and an aluminum body available in various finishes, ensuring both functionality and style.
Suitable for doors up to 39" (1 m) wide and with a maximum weight capacity of 220 lbs.
(100 kg) per two hinges, the Oil Dynamic Hinge offers a seamless design solution without the need for extensive retrofitting, making it perfect for creating 'all-glass' doors.
