CRL Satin Anodized Vertical Sliding Ticket Window with 18" x 3-1/2" Opening
CRL Satin Anodized Vertical Sliding Ticket Window with 18" x 3-1/2" Opening
Regular price
$534.32 CAD
Regular price
Sale price
$534.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 702A
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Satin Anodized |
| Frame Depth 1 in. | (25.4 mm) |
| Frame Width 5/8 in. | (15.9 mm) |
| Glazing Thickness | 1/4 in. (6 mm) |
| Height 8-1/2 in. | (215.9 mm) |
| Material | Aluminum |
| Width 19-1/4 in. | (489 mm) |
| Window | Style Vertical Slider |
Overview

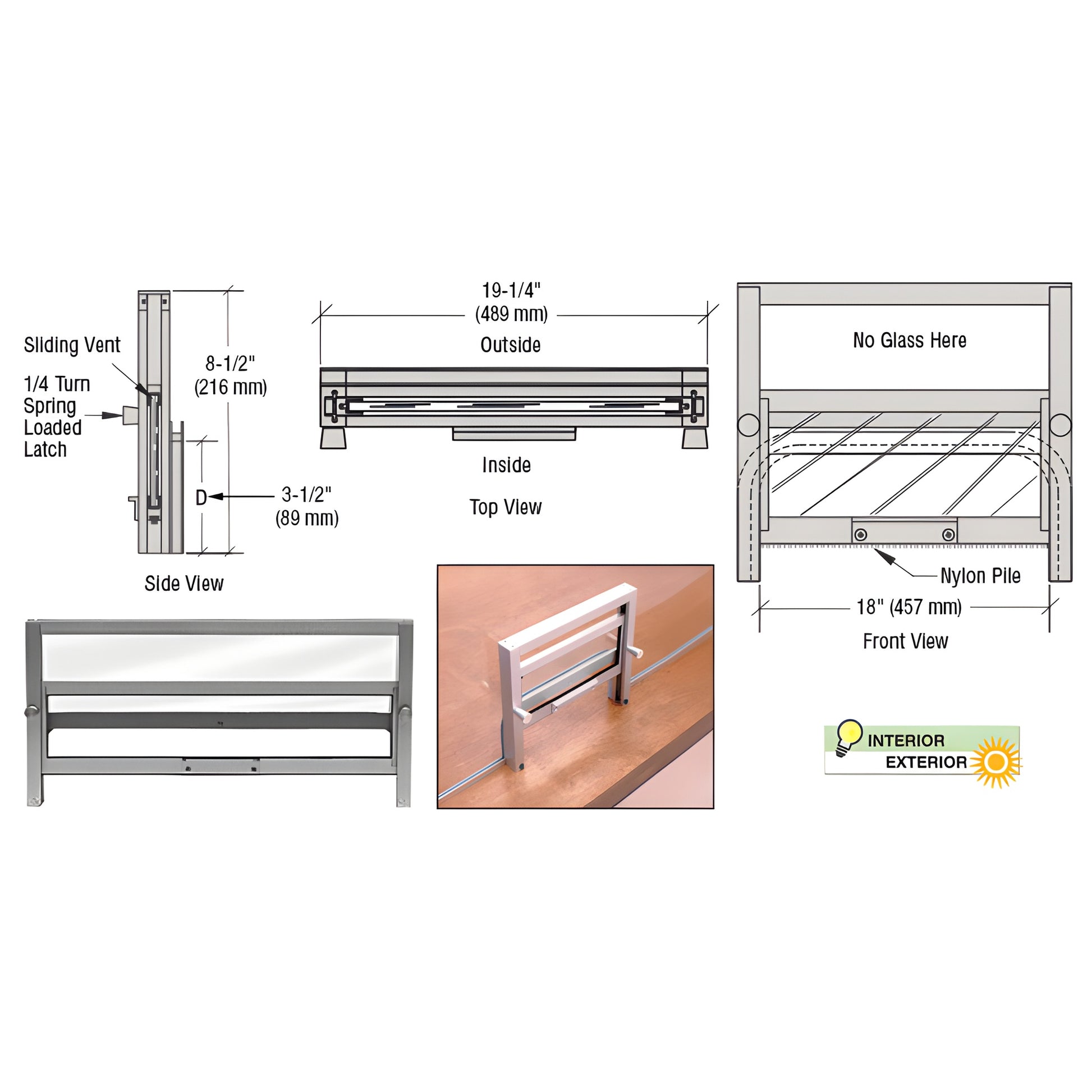

The CRL Vertical Sliding Ticket Window is a versatile solution for installation above countertops without requiring any groove modifications.
Made from durable extruded aluminum, it comes in two attractive finishes: satin anodized and bronze anodized.
The window features a sliding lower panel with 1/4" (6 mm) clear glass, secured by spring-loaded latches and spring-tensioned guides.
Additional benefits include effective pile weather stripping to prevent drafts and a template for easy installation.
Custom-sized channels are available upon special request.
For more information, contact CRL Customer Service.
Made from durable extruded aluminum, it comes in two attractive finishes: satin anodized and bronze anodized.
The window features a sliding lower panel with 1/4" (6 mm) clear glass, secured by spring-loaded latches and spring-tensioned guides.
Additional benefits include effective pile weather stripping to prevent drafts and a template for easy installation.
Custom-sized channels are available upon special request.
For more information, contact CRL Customer Service.
Specifications
Installation Instructions
CAD Drawings - pdf
