CRL Satin Anodized Vertical Sliding Ticket Window With 8-1/4" x 3-1/2" Opening
CRL Satin Anodized Vertical Sliding Ticket Window With 8-1/4" x 3-1/2" Opening
Regular price
$424.25 CAD
Regular price
Sale price
$424.25 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 701A
Shipping Weight: 2.85 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.85 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description
Finish/Color | Satin Anodized |
Frame Depth 1 in. | (25.4 mm) |
Frame Width 5/8 in. | (15.9 mm) |
Glazing Thickness | 1/4 in. (6 mm) |
Height 8-1/2 in. | (215.9 mm) |
Material | Aluminum |
Width 9-1/2 in. | (241.3 mm) |
Window | Style Vertical Slider |
Overview

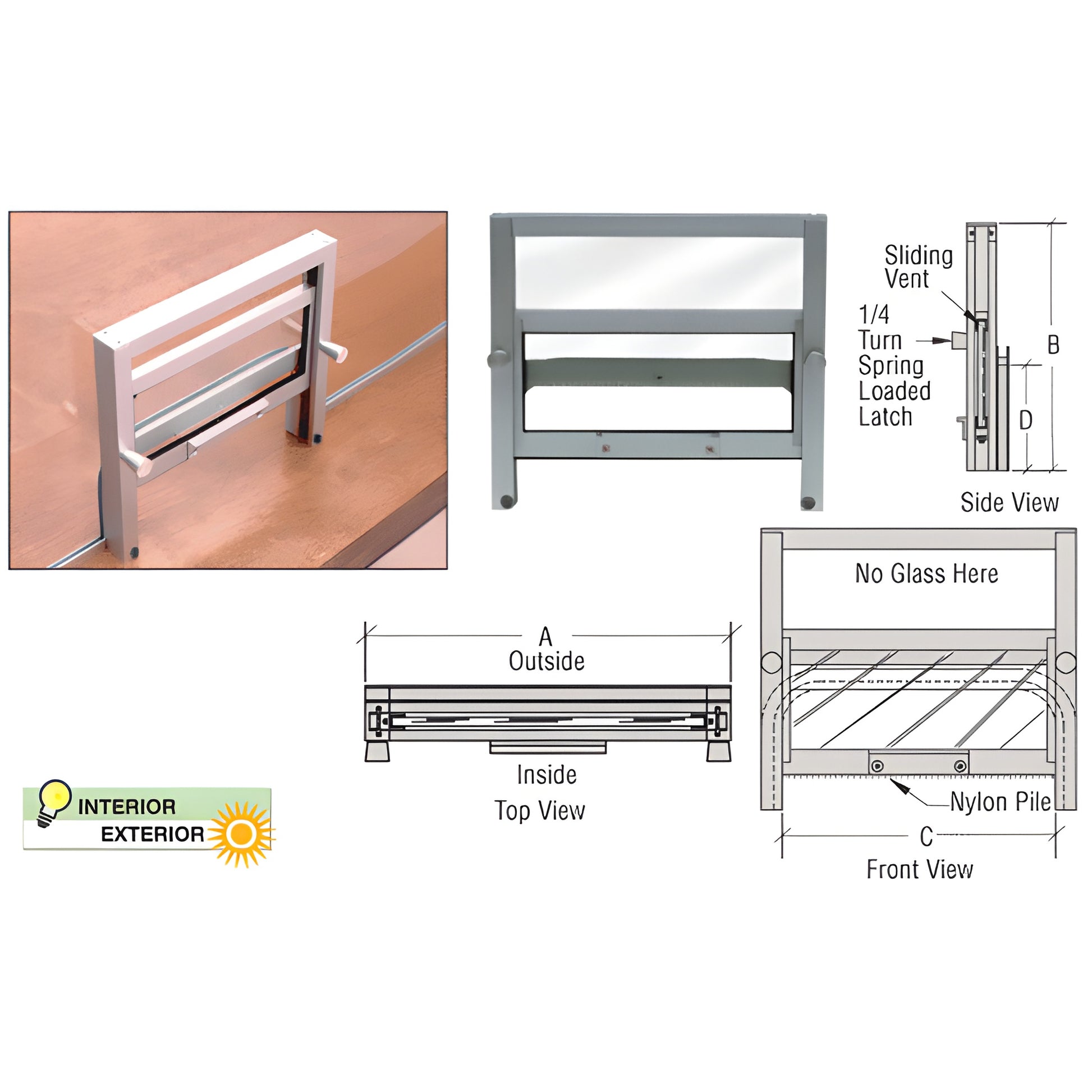

The CRL Vertical Sliding Ticket Window offers an easy installation above countertops without the need for grooves, making it a convenient solution for ticketing stations.
This robust window is constructed from high-quality extruded aluminum and comes in either satin anodized or bronze anodized finishes, providing a sleek look for any setting.
Featuring a 1/4" (6 mm) clear glass panel, the window is equipped with spring-loaded latches and spring-tensioned guides to ensure smooth operation and secure closure.
Additionally, pile weather stripping along the lower frame helps prevent drafts, while the included template and installation guide make setup straightforward.
Custom-sized channels for thicker glass units are available upon request.
This robust window is constructed from high-quality extruded aluminum and comes in either satin anodized or bronze anodized finishes, providing a sleek look for any setting.
Featuring a 1/4" (6 mm) clear glass panel, the window is equipped with spring-loaded latches and spring-tensioned guides to ensure smooth operation and secure closure.
Additionally, pile weather stripping along the lower frame helps prevent drafts, while the included template and installation guide make setup straightforward.
Custom-sized channels for thicker glass units are available upon request.
Specifications
Installation Instructions
CAD Drawings - pdf
CAD Drawings - dwg
