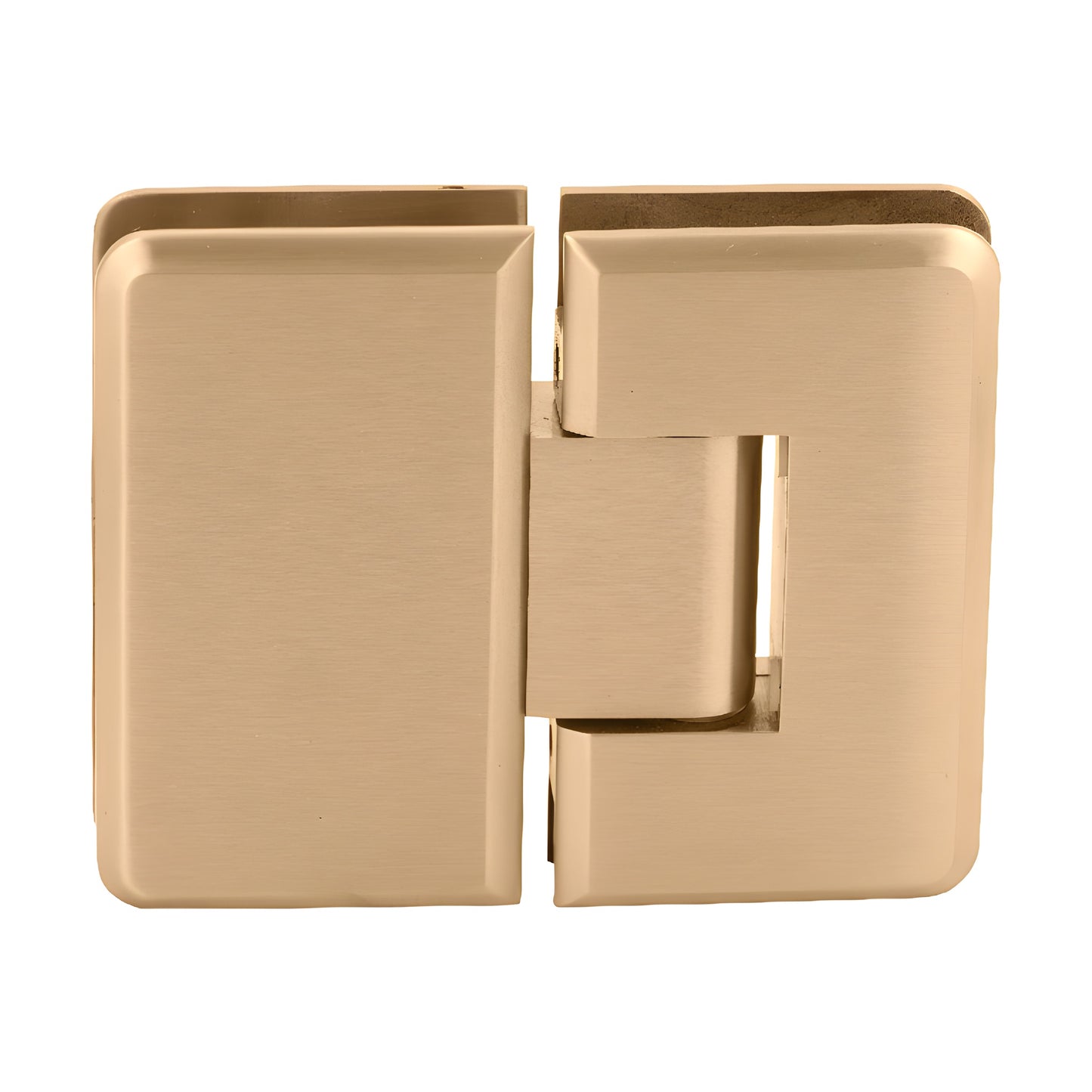

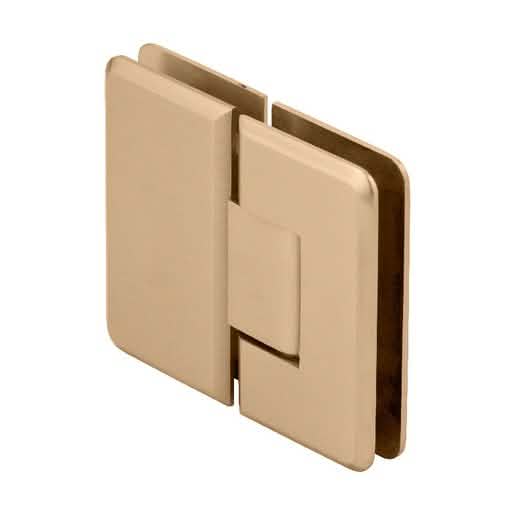

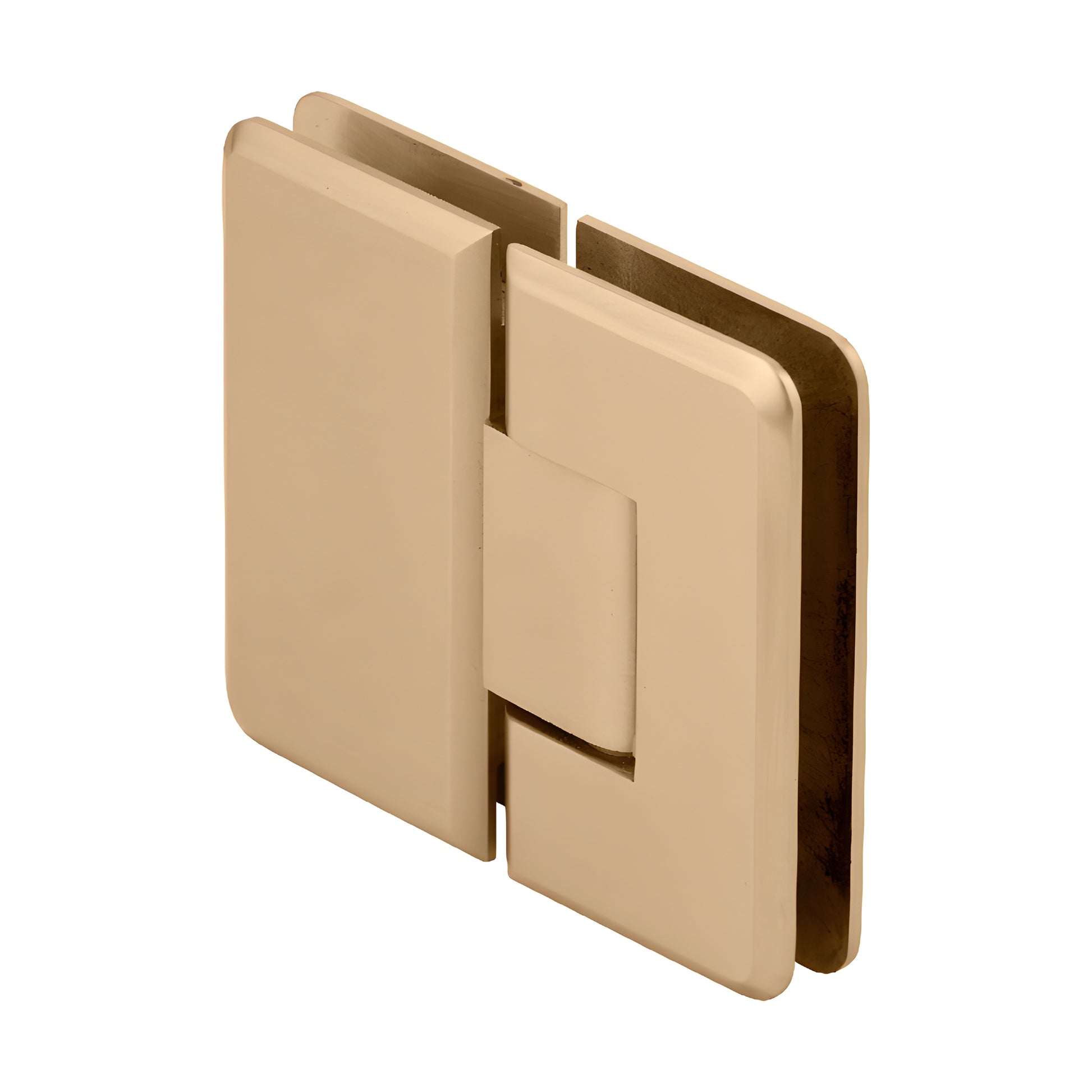

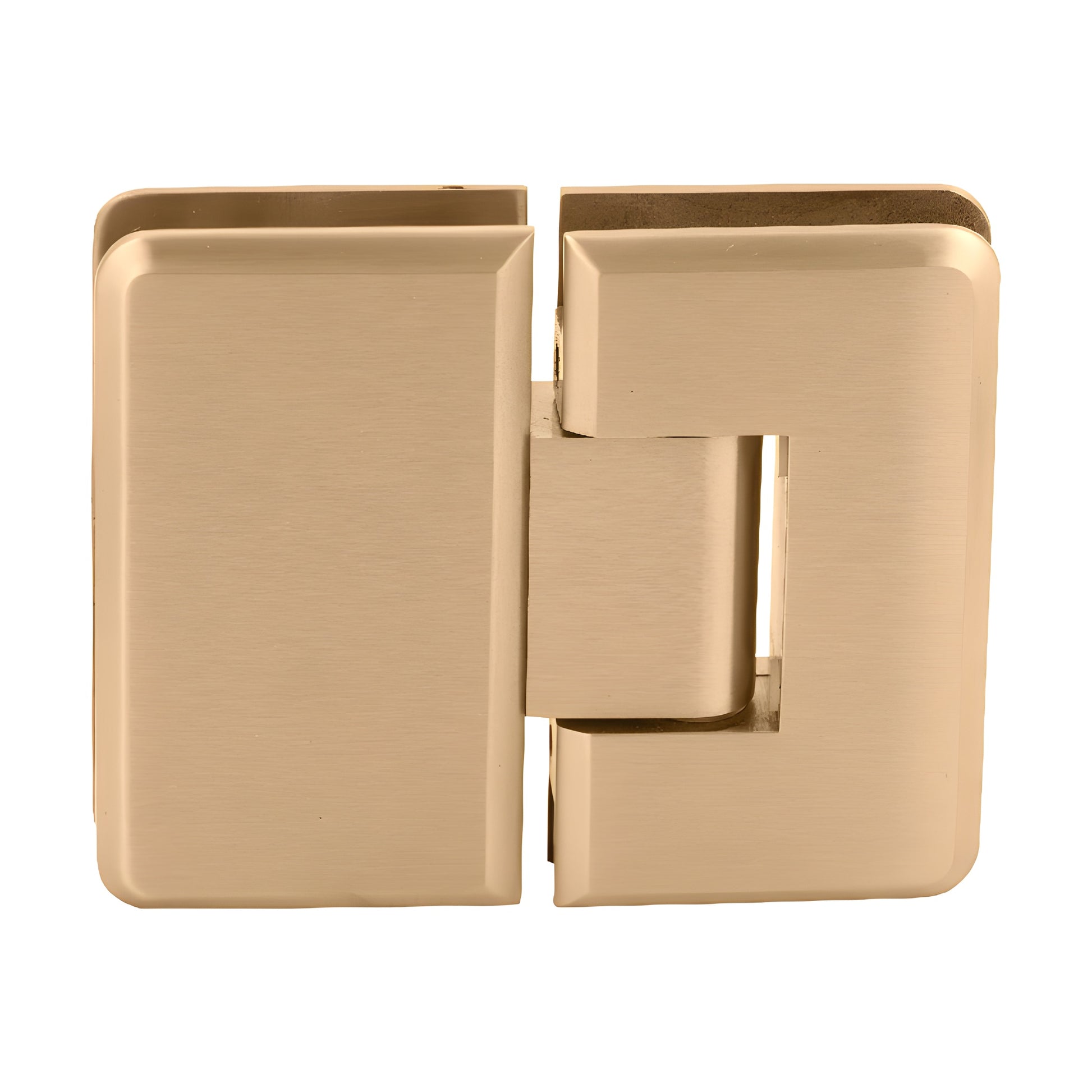

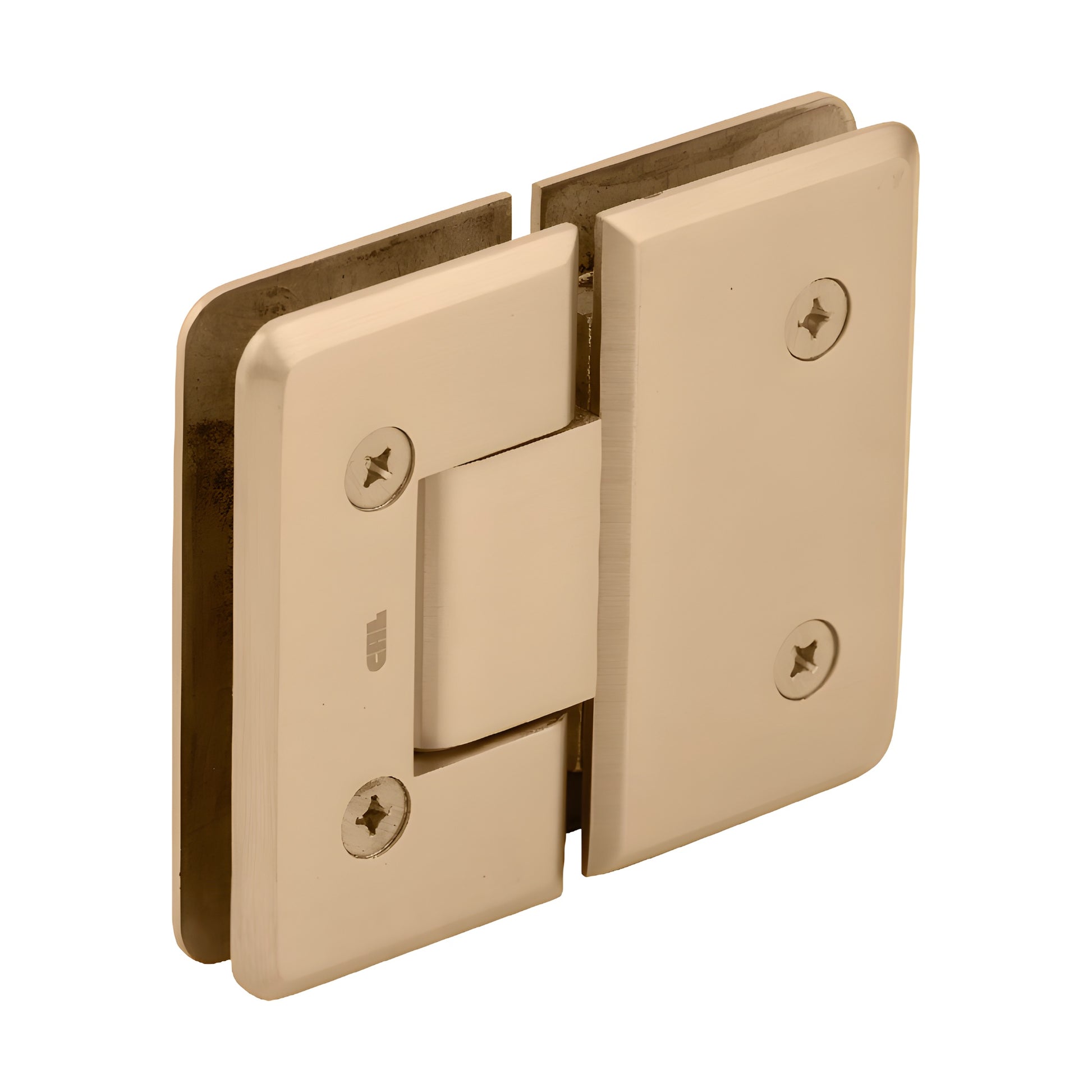

CRL Cologne 180 Series Satin Brass 180° Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes; custom finishes available on request
• 180º glass-to-glass hinge for frameless shower doors
• Use with monolithic tempered glass

CRL Cologne Hinges (SKU: C0L180SB) are radius‑corner, beveled‑edge shower door hinges that offer a sleeker appearance than traditional Vienna hinges. Designed for wider, heavier frameless shower doors, these solid brass hinges include two internal steel pins that can be left in place for CRL "mouse‑ears" cut‑outs or removed for greater adjustability and compatibility with rectangular, square‑corner cut‑outs (may fit some competitive cut‑outs).

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin with two settings: 90º (standard) and 85º (pre‑set models). Rotate the pin (do not flip) to switch between tighter or standard closing angles.

CUSTOM PIVOT PIN: Custom pivot pins up to 45º are available for off‑angle installations when the standard 5º adjustment is insufficient.

LOAD CAPACITY:
Using two hinges: Supports up to 110 lbs (50 kg) with 3/8"–1/2" glass and maximum door width of 36" (914 mm).
Using three hinges: Supports up to 140 lbs (63 kg) with 3/8"–1/2" glass and maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out (self‑centering within 15º of closed position)
Cut‑Out: Cut‑out required (except C0L092, which requires cut‑out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request—contact CRL Technical Sales Department to order.

Product Warning:

CRL shower door hinges are intended for residential or hotel shower applications only. For other uses, obtain approval from CRL Shower Door Technical Sales Department. Use only the template included with this hinge; CRL cut‑
