CRL Satin Brass Square 90 Degree Glass-to-Glass Clamp
CRL Satin Brass Square 90 Degree Glass-to-Glass Clamp
Regular price
$74.52 CAD
Regular price
Sale price
$74.52 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC90SB
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1




Description
Design | Style Squared |
Enclosure | Type Corner, Niche, Bathtub, Tailor Made Solutions |
Finish/Color | Satin Brass |
Glass To Glass Angle | 90 |
Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |

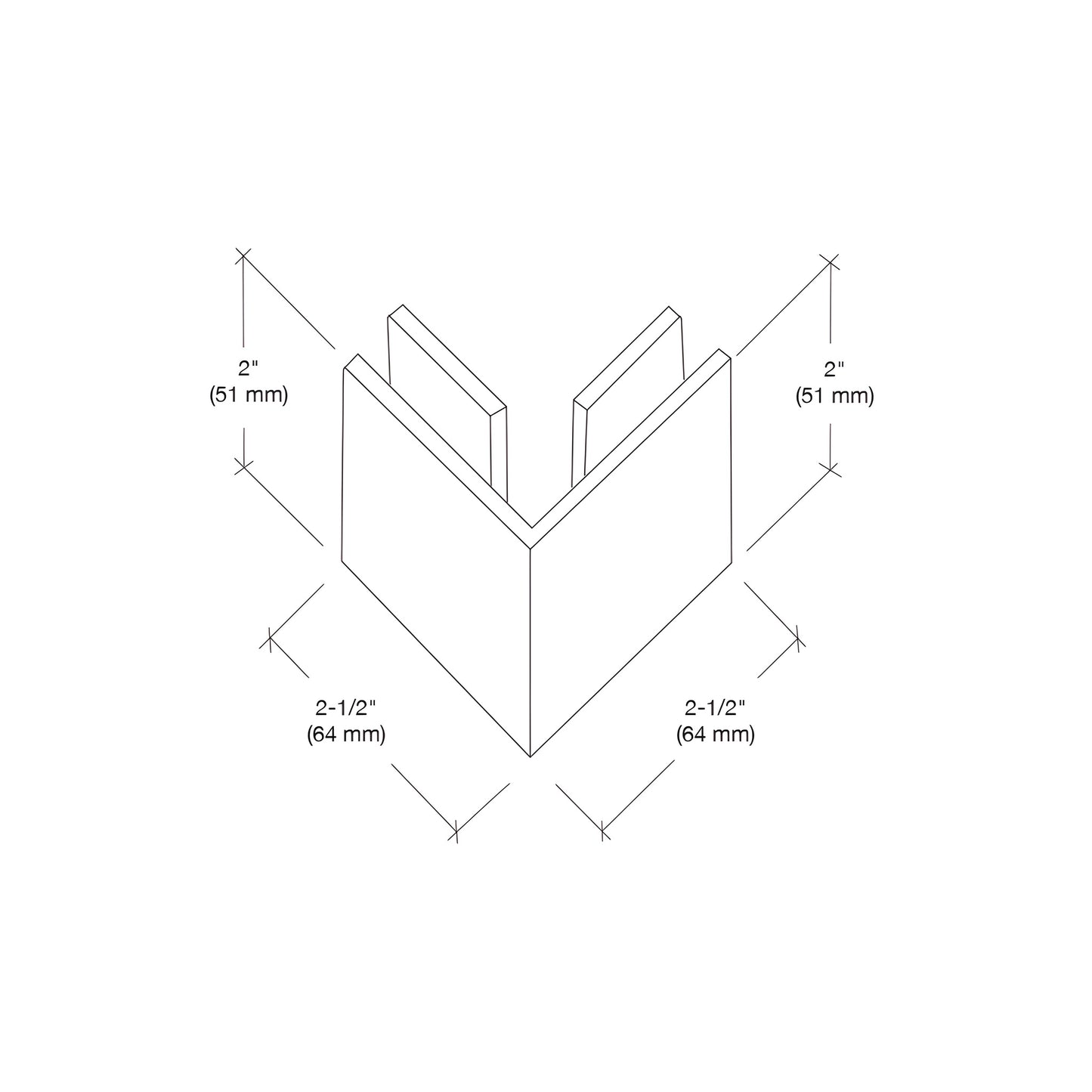

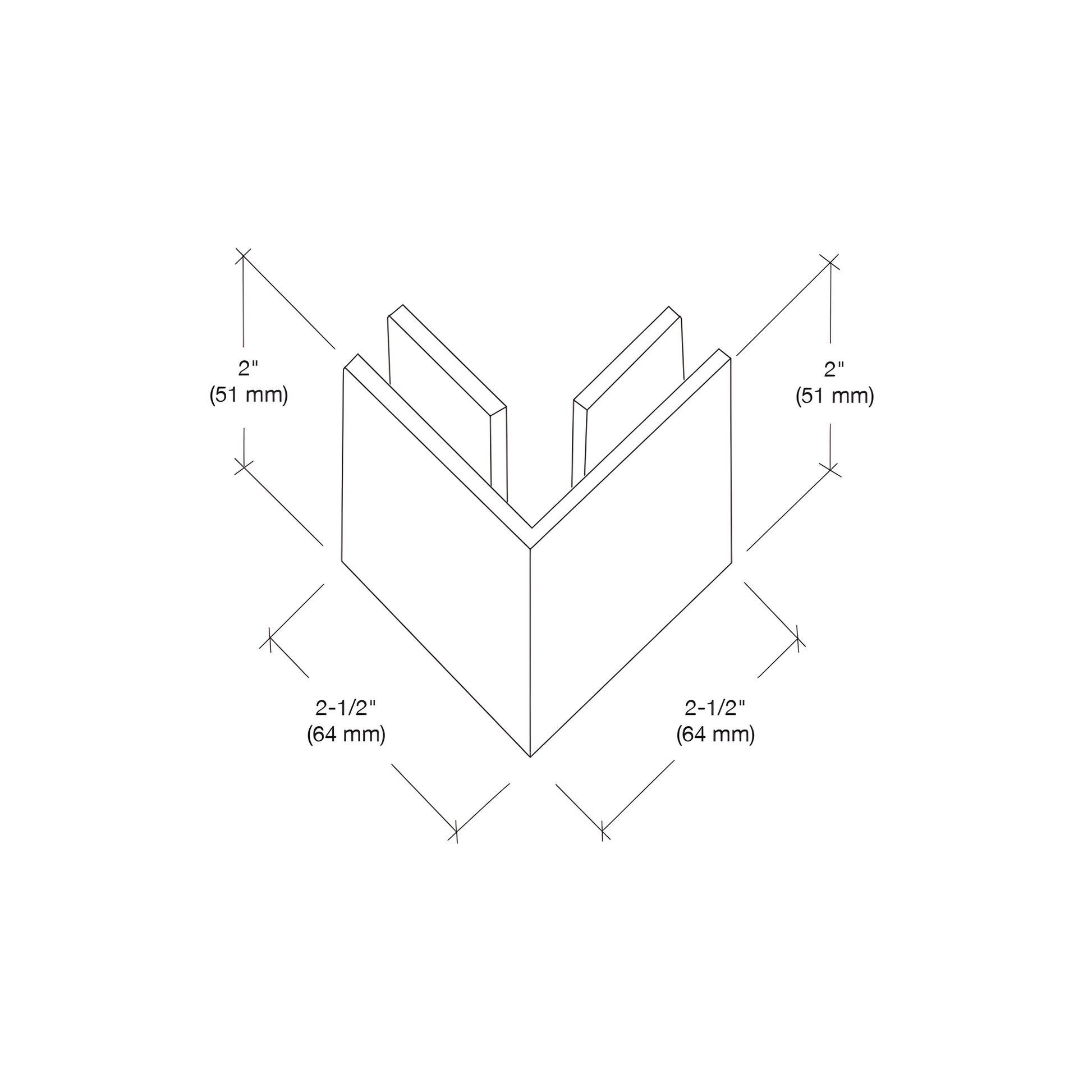

Height 2 in. | (51 mm) |
Leg Width 2-1/2 in. | (64 mm) |
Material | Brass |
Mounting | Type Glass To Glass |
Overview

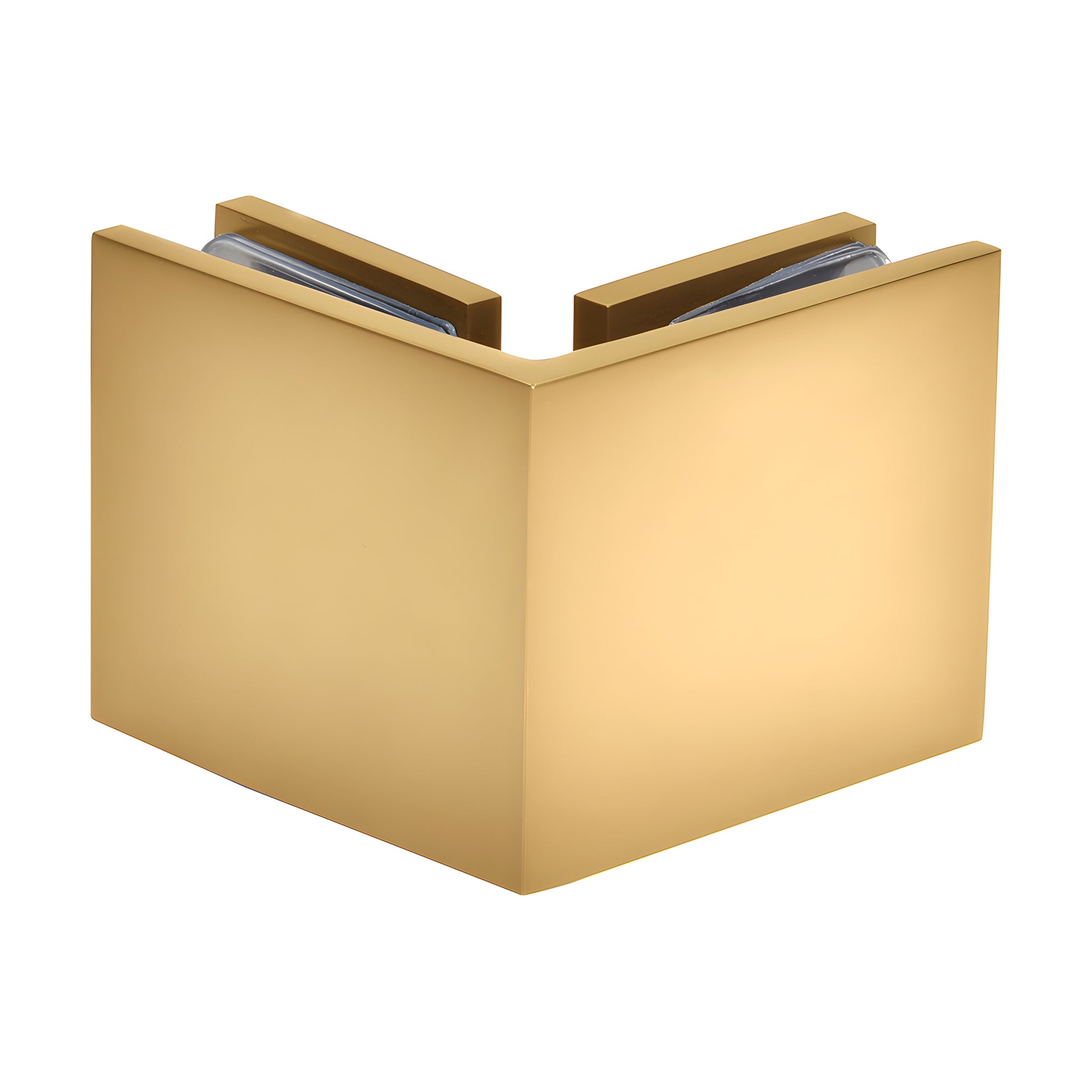

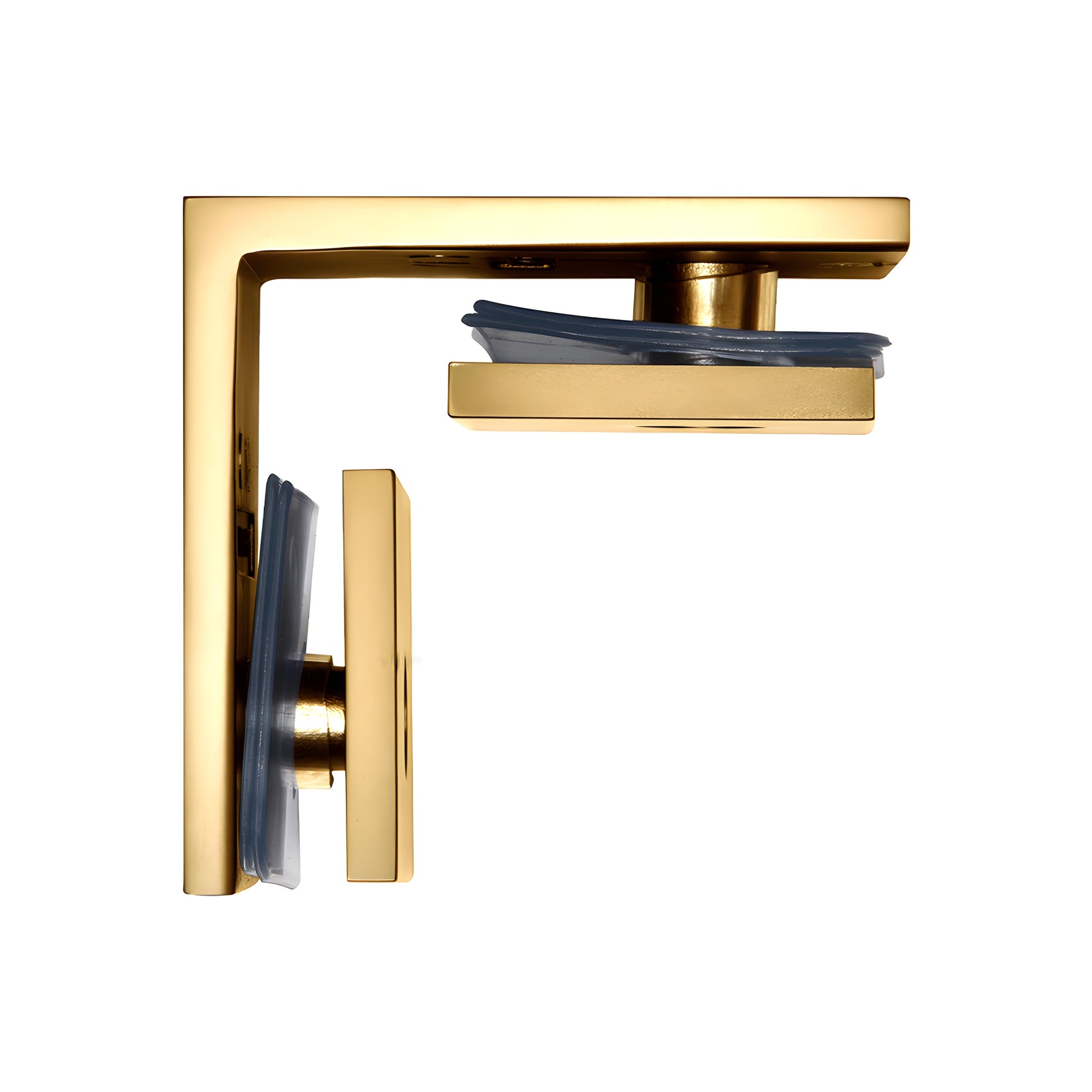

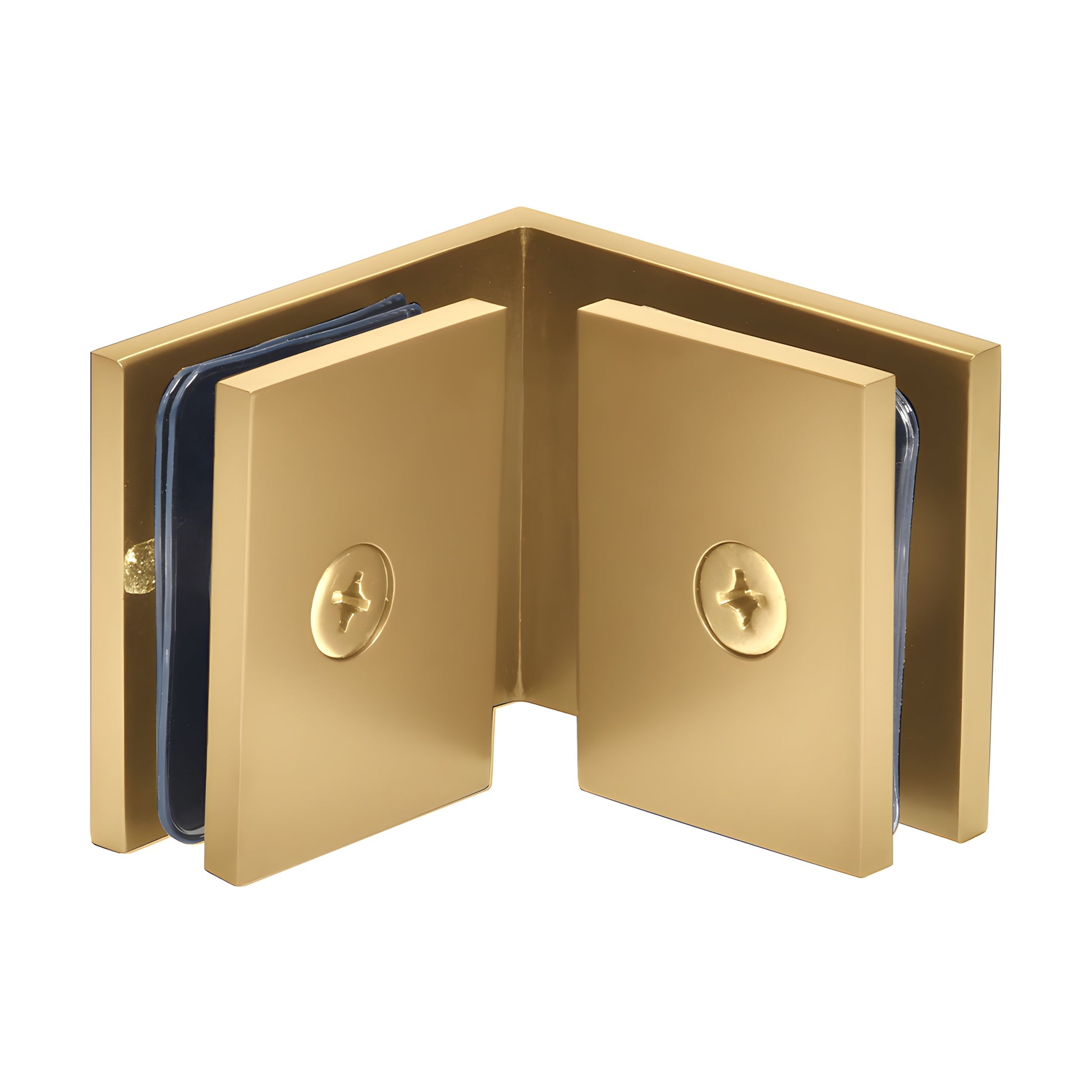

The CRL Square 90 Degree Glass-to-Glass Clamps are expertly designed for securing 5/16" to 1/2" (8 to 12 mm) glass panels in frameless shower enclosures, offering a sleek 'all-glass' aesthetic.
Made from solid brass, these clamps require specific glass fabrication to accommodate their installation, utilizing monolithic tempered glass for optimal results.
The clamps are ideal for connecting two fixed glass panels at a 90-degree angle, with the option for panels to be overlapped or mitered at the corner.
For detailed specifications, drawings, and templates, please refer to the product details, and note that shipping weights are approximate and colors may vary based on monitor settings.
Made from solid brass, these clamps require specific glass fabrication to accommodate their installation, utilizing monolithic tempered glass for optimal results.
The clamps are ideal for connecting two fixed glass panels at a 90-degree angle, with the option for panels to be overlapped or mitered at the corner.
For detailed specifications, drawings, and templates, please refer to the product details, and note that shipping weights are approximate and colors may vary based on monitor settings.
Specifications
Brochures & Literature
Quote Request Forms
Templates
Cleaning & Maintenance
