CRL Satin Chrome 6x10 LHR Center Push-Button Door Lock with Housing

• Requires No Electrical Connections
• Complies with A.D.A. Standards
• Five Finishes Available
• Use Monolithic Tempered Glass

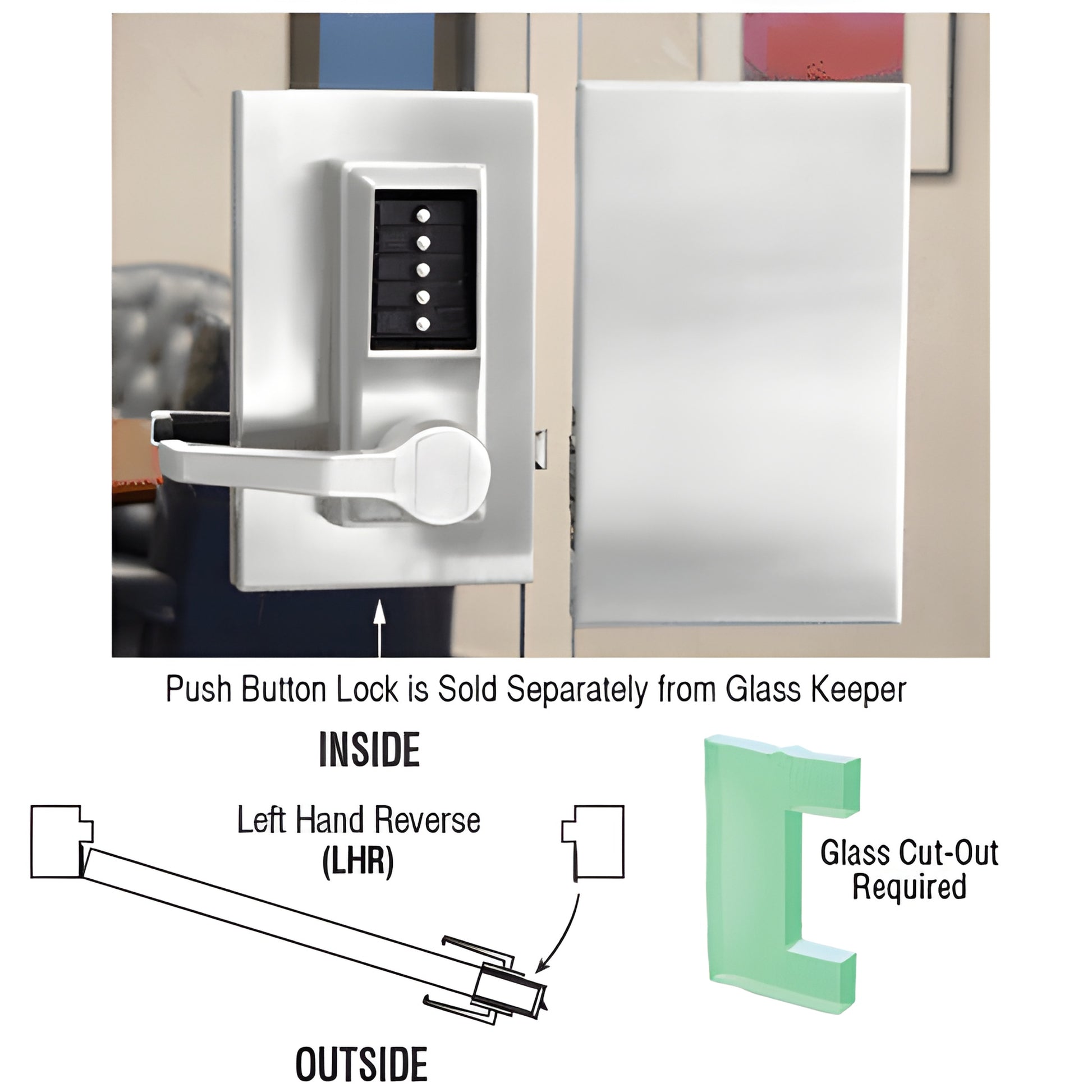

CRL 6" x 10" Center Locks with Deadlatch — SKU: DL611LCSC provide flexible lock functions and reliable security for 1/2" (12 mm) heavy glass doors. Designed for use with monolithic tempered glass, these 6" x 10" center locks require only a simple cut-out in the glass for installation — no cement or silicone needed. Available left- and right-handed and in five attractive finishes, they are a popular choice for commercial glass door applications where ADA compliance and ease of installation matter.

Office Lock Function: Latchbolt operates by lever on either side (outside lever can be locked by rocker in faceplate) or by key outside. Auxiliary latchbolt deadlocks the main latchbolt to prevent jimmying. Inside lever always retracts the lock for egress.

Entrance Lock: Latchbolt operates by lever on either side (except when deadbolt is projected). Deadbolt operated by key outside and thumbturn inside. Inside lever retracts both latchbolt and deadbolt for exiting.

Passage Lock: Latchbolt operates by lever on either side. Inside lever always retracts the lock to allow exit.

Storeroom Lock: Latchbolt operates by lever inside and by key outside; outside lever is fixed. Auxiliary latchbolt deadlocks the main latchbolt to prevent jimmying. Inside lever always allows exit. Commonly used with electric strikes.

Classroom Lock: Latchbolt operates by lever on either side except when outside lever is locked by key. Key operates latch and unlocks outside lever; inside lever always operable for immediate egress.

Ideal for commercial glass door projects, the DL611LCSC center lock combines deadlatch security with easy, non-invasive installation. Order now to specify finish and handing.
