CRL Satin Chrome Flush Mount Cabinet Pivot Hinges

CRL Satin Chrome Flush Mount Cabinet Pivot Hinges

$188.74 CAD
$188.74 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# FA55SC
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack
View full details

Product Information

Description

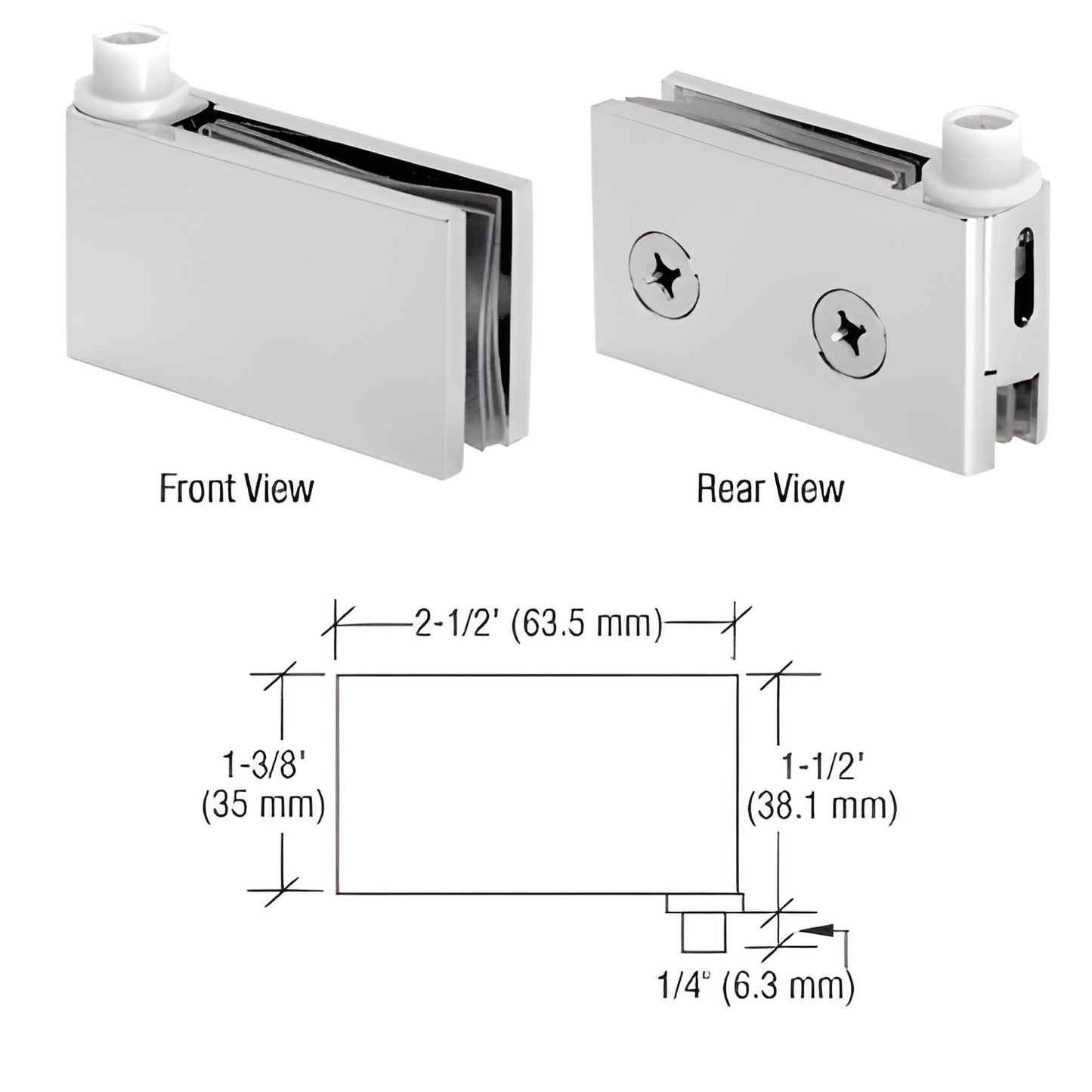

Finish/Color:Satin ChromeSatin Chrome
Glazing Thickness1/4 in. To 5/16 in. (6mm To 8 mm)1/4 in. To 5/16 in. (6mm To 8 mm)
Height1-1/2 in. (38.1 mm)1-1/2 in. (38.1 mm)
MaterialBrassBrass
Maximum Door Width24 in. (609.6 mm)24 in. (609.6 mm)
Pack Quantity22
Weight Capacity50 lbs. (22.7 kg)50 lbs. (22.7 kg)
Width2-1/2 in. (63.5 mm)2-1/2 in. (63.5 mm)

Overview

  • For 1/4" to 5/16" (6 to 8 mm) Glass
  • Requires One Hole and One Cut-Out
  • One Set Top and Bottom Per Package

The CRL Flush Mount Cabinet Pivot Hinge can be used with 1/4" or 5/16" (6 or 8 mm) glass. The maximum recommended door width is 24" (610 mm). The recommended maximum weight of the door should not exceed 50 lbs. (22.7 kg). Minimum clearance required is 1/8" (3.2 mm) top and 1/8" (3.2 mm) bottom. Required glass fabrication for hinge installation is one hole and one cut out. One set top and bottom per pack.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
