CRL Satin Chrome Surface Mount Cabinet Pivot Hinges
CRL Satin Chrome Surface Mount Cabinet Pivot Hinges
Regular price
$140.10 CAD
Regular price
Sale price
$140.10 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FA50SC
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

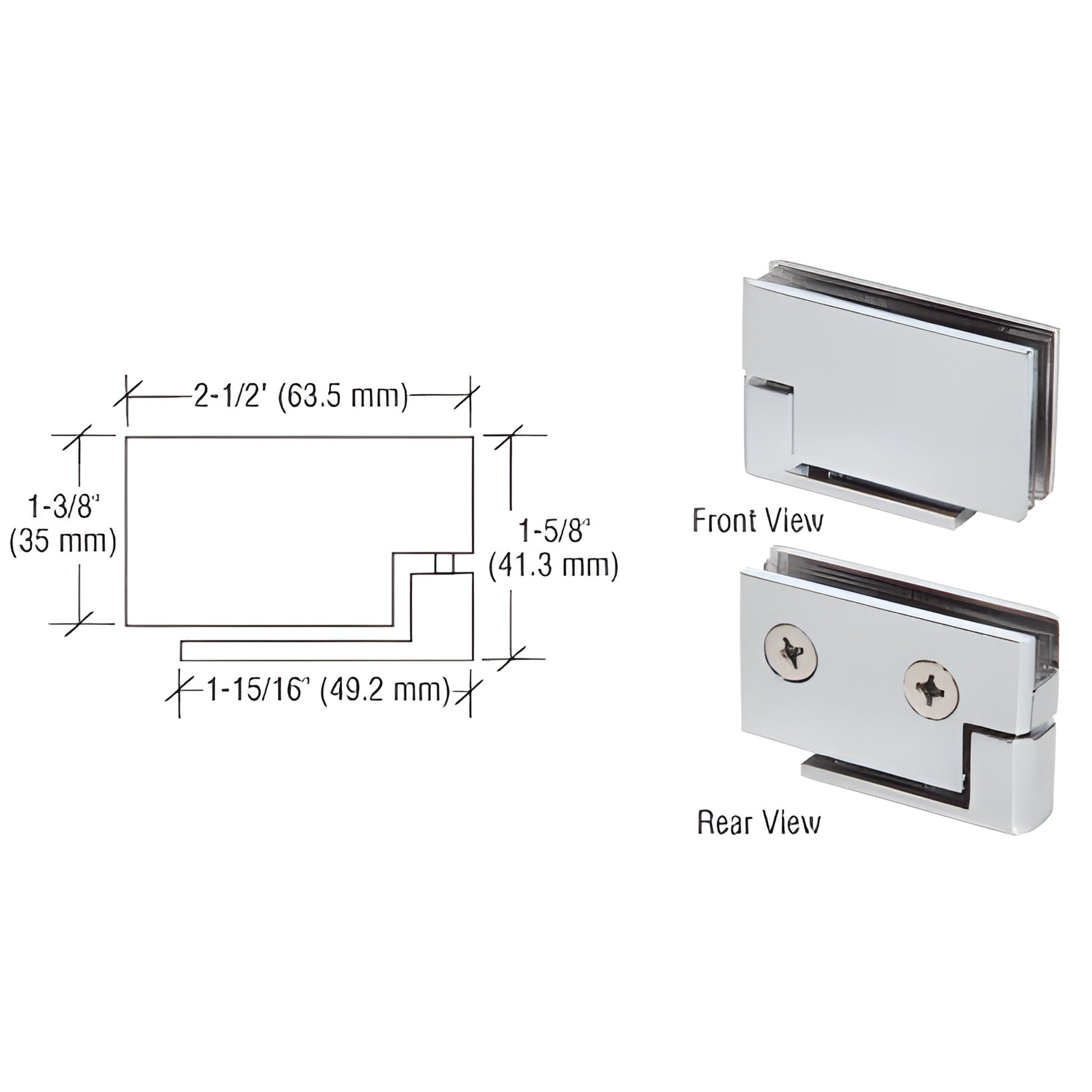

| Finish/Color | Satin Chrome |
| Glazing Thickness | 1/4 in. To 5/16 in. (6mm To 8 mm) |
| Height 1-5/8 in. | (41.3 mm) |
| Material | Brass |
| Maximum Door Width 24 in. | (609.6 mm) |
| Pack Quantity | 2 |
| Weight Capacity 50 lbs. | (22.7 kg) |
| Width 2-1/2 in. | (63.5 mm) |
Overview
The CRL Surface Mount Cabinet Pivot Hinge is designed for use with 1/4" to 5/16" (6 to 8 mm) glass, making it a versatile choice for your cabinet needs.
This hinge supports a maximum door width of 24" (610 mm) and a weight of up to 50 lbs.
(22.7 kg).
Installation requires minimal clearance of 1/4" (6 mm) at the top and bottom, and involves one hole and one cut-out in the glass.
Each package includes a set for both the top and bottom, ensuring a complete installation.
If precise shipping weights are necessary for your order, please contact CRL Customer Service before finalizing your purchase.
This hinge supports a maximum door width of 24" (610 mm) and a weight of up to 50 lbs.
(22.7 kg).
Installation requires minimal clearance of 1/4" (6 mm) at the top and bottom, and involves one hole and one cut-out in the glass.
Each package includes a set for both the top and bottom, ensuring a complete installation.
If precise shipping weights are necessary for your order, please contact CRL Customer Service before finalizing your purchase.
Specifications
Templates
CAD Drawings - pdf
CAD Drawings - dwg
