CRL Satin Chrome Wide Glass Door Pivot Hinge
CRL Satin Chrome Wide Glass Door Pivot Hinge
Regular price
$88.91 CAD
Regular price
Sale price
$88.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH328
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

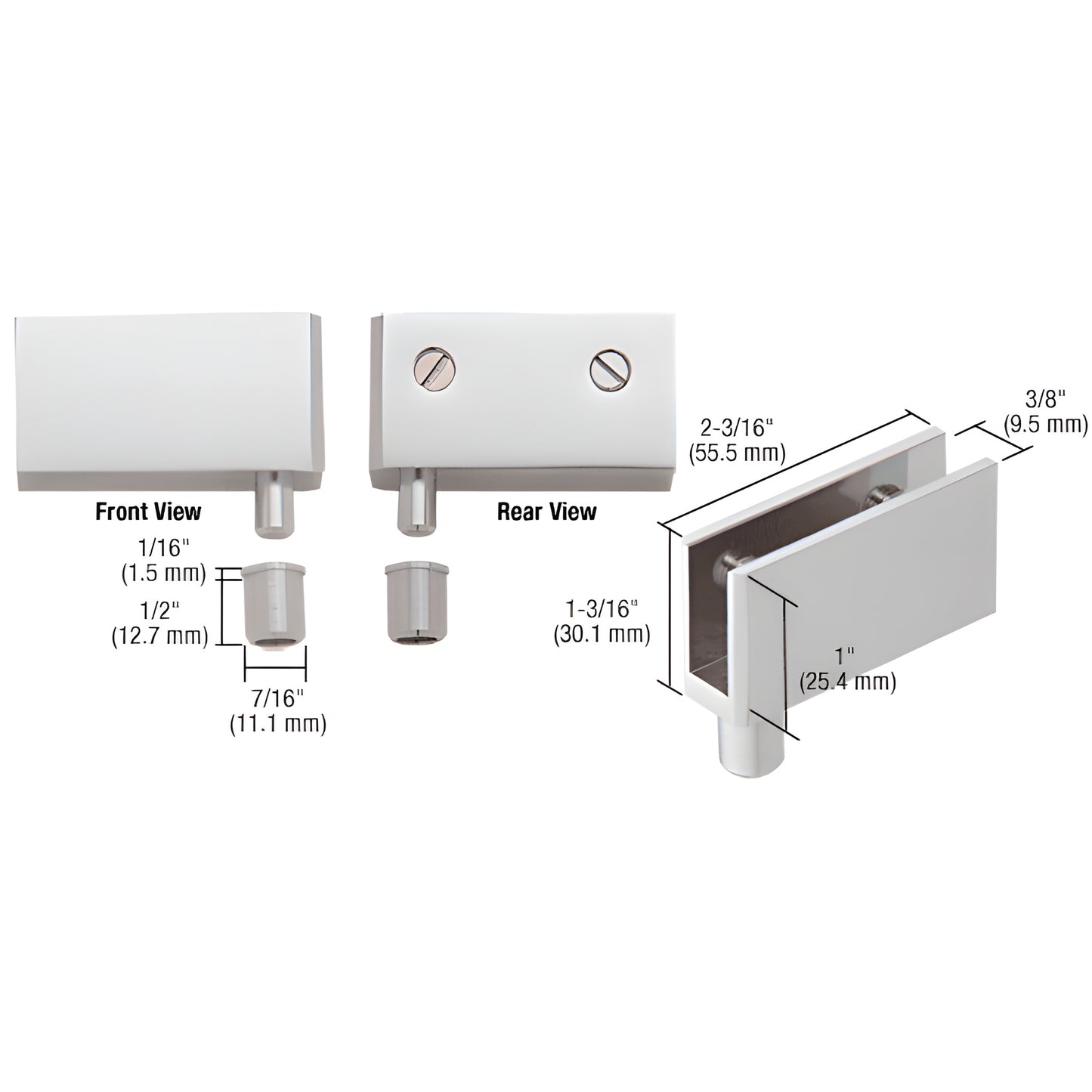

| Finish/Color | Satin Chrome |
| Glazing Thickness | 1/4 in. To 5/16 in. (6mm To 8 mm) |
| Height 1-3/16 in. | (30.2 mm) |
| Material | Brass |
| Maximum Door Width 20 in. | (508 mm) |
| Pack Quantity | 2 |
| Weight Capacity 28 lbs. | (12.7 kg) |
| Width 2-3/16 in. | (55.6 mm) |
Overview
CRL's Wide Glass Door Pivot Hinges are designed for easy installation on glass thicknesses ranging from 1/4" to 5/16" (6 to 8 mm), without requiring any holes or cut-outs.
With multiple finish options, these hinges are perfect for larger and heavier doors, offering a sleek look and secure fit by simply tightening two set screws.
Ideal for doors up to 20" (508 mm) wide and weighing no more than 28 lbs.
(12.7 kg), each pack includes a top and bottom set.
Ensure a minimum clearance of 5/16" (7.9 mm) at the top and bottom for optimal performance, and consult CRL Customer Service for exact shipping weights if needed.
With multiple finish options, these hinges are perfect for larger and heavier doors, offering a sleek look and secure fit by simply tightening two set screws.
Ideal for doors up to 20" (508 mm) wide and weighing no more than 28 lbs.
(12.7 kg), each pack includes a top and bottom set.
Ensure a minimum clearance of 5/16" (7.9 mm) at the top and bottom for optimal performance, and consult CRL Customer Service for exact shipping weights if needed.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
