- Low Maintenance Vinyl Screening System
- Accepts Standard Fiberglass and Aluminum Screen Wire and Serrated Retainer Spline
- No Rusty Nails, Staples or Loose Screens
- 1. Base component is easily cut to fit with CRL PTS89 Trimming Snips.
- 2. Attach base to existing wooden frame with screws or roofing tacks.
- 3. Secure screen to base with screen spline by rolling spline into groove.
- 4. Trim excess screen and snap cap into base.
CRL Screen Tight™ Vinyl Screen Frame
is a common sense approach to screening a porch or sunroom area. This Vinyl Screen Frame has been designed with the home builder in mind.

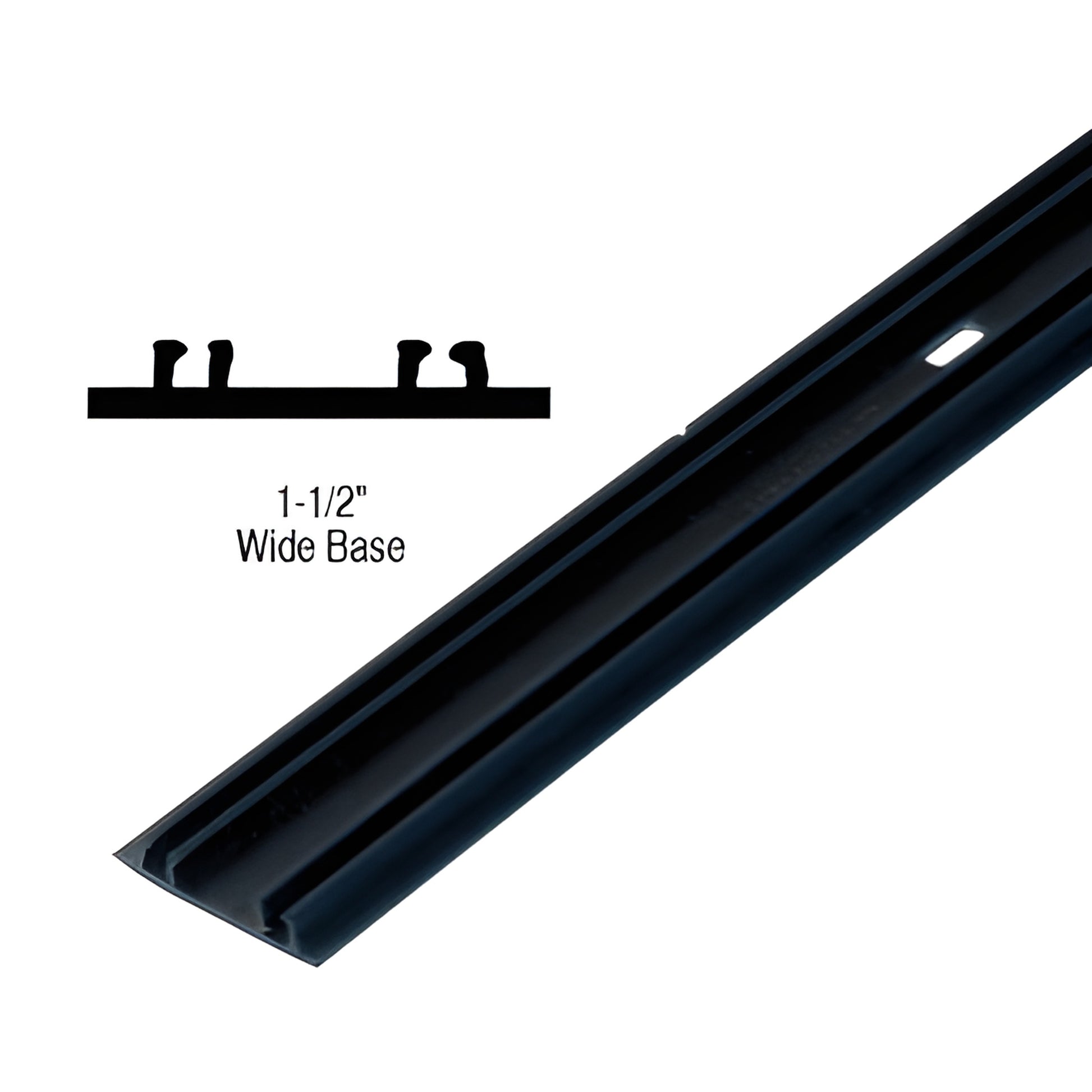

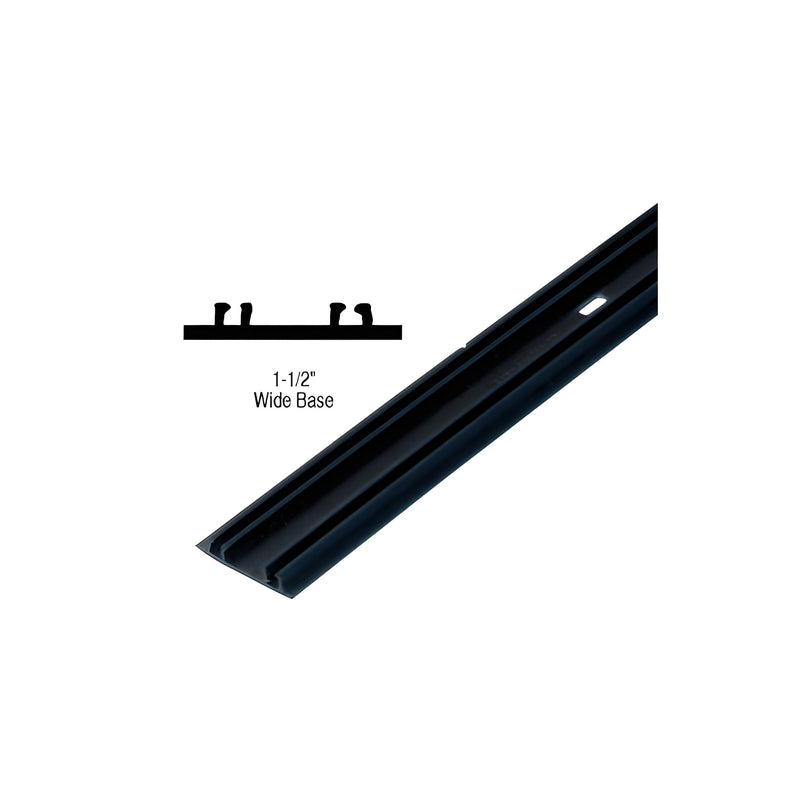

Screen Tight's unique system is easily adaptable to most screen porches. The Base attaches to existing 2" x 4" or 4" x 4" framing with wood screws, roof tacks or staples. Once the Base is attached, the screen is rolled into place with a standard screen roller tool. The excess screen is cut and removed. The Cap snaps into the Base, completing the installation.
Screen Tight is durable and weather resistant. It is low maintenance because it won't corrode, rust or rot, and never needs painting.
NOTE
Screen wire and spline not included. Recommended spline size is .175" when using fiberglass screen wire; .165" when using aluminum screen wire.
Pre-punched holes on 8" (196 mm) centers result in a quick and consistent attachment. Once the base is attached, the screen and spline are rolled into place with a standard
screen spline roller
. If aluminum screen wire is being used, the
SS165 series
spline is recommended; for fiberglass wire use
SS175 series
spline. The excess screen is cut and removed. The cap snaps into the base, completing the installation.
Screen Tight™ is durable and weather resistant. It never needs painting, and won't corrode, rust or rot. Re-screening is fast and easy. Simply pop off the cap and roll in the new screen wire.
Four Easy Installation Steps Shown in the Photo Above
1. Base component is easily cut to fit with CRL
PTS89
Trimming Snips.
2. Attach base to existing wooden frame with screws or roofing tacks.
3. Secure screen to base with screen spline by rolling spline into groove.
4. Trim excess screen and snap cap into base.
Five length minimum order of one size and color.
