CRL Stainless European Patch Door Kit w/ Lock for Overhead Closer
CRL Stainless European Patch Door Kit w/ Lock for Overhead Closer
Regular price
$472.57 CAD
Regular price
Sale price
$472.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE2LBS
Shipping Weight: 6.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Single
Door Type
F Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- Adjustable Top Fitting
- Five Architectural Finishes
- Door Closer Not Included
CRL PHE2 European Patch Door Kits include the hardware required to finish a single frameless glass door (overhead door closer and glass not included). Pivot setback is 2-9/16" (65 mm). The Top Patch Fitting (PH21C) is adjustable after installation. Overhead door closer must be ordered separately.

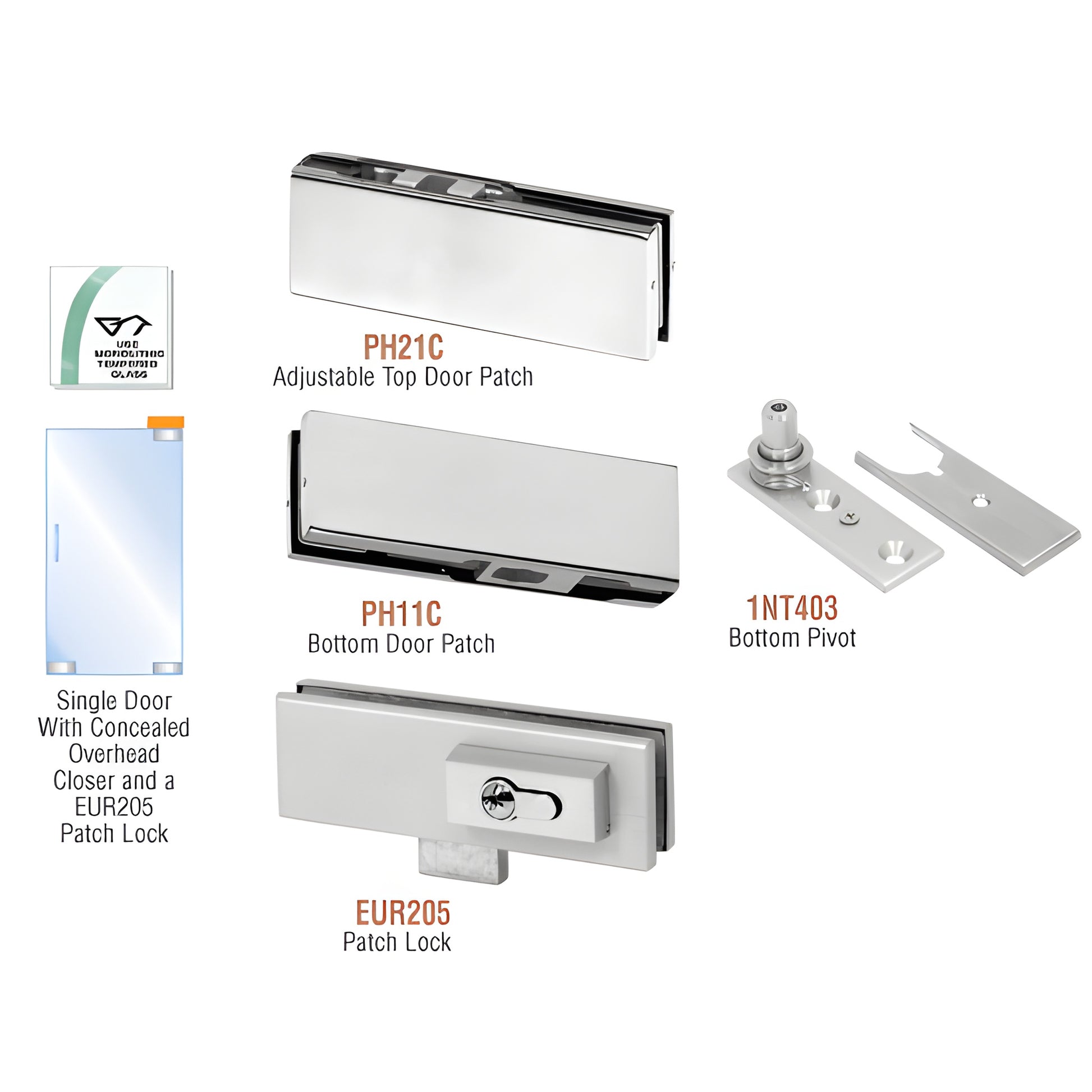

Kit Contains:
- 1 - PH21C Adjustable Top Door Patch
- 1 - PH11C Bottom Door Patch
- 1 - 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 mm or 12 mm) tempered glass (glass must have required holes and notches)
Kits with lock include one EUR205 patch lock; cylinders, thumbturns, and keepers are ordered separately.
NOTE For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
SKU: PHE2LBS — Ideal for frameless glass door installations requiring an adjustable top patch fitting and 65 mm pivot setback. Order accessories and overhead closer separately.
