CRL Stainless European Patch Door Kit w/ Lock for Transom & 2 Sidelites
CRL Stainless European Patch Door Kit w/ Lock for Transom & 2 Sidelites
Regular price
$765.27 CAD
Regular price
Sale price
$765.27 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE5LBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Sidelite-Single With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- 'All-Glass' Look
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks (SKU: PHE5LBS)
CRL PHE5 European Door Kits include the hardware to build a free-swinging glass door with a fixed transom and two sidelites (glass and any extra supports for transom/sidelites not included). Pivot setback: 2-9/16" (65 mm). Compatible with a floor closer using a tapered spindle (floor closer ordered separately).

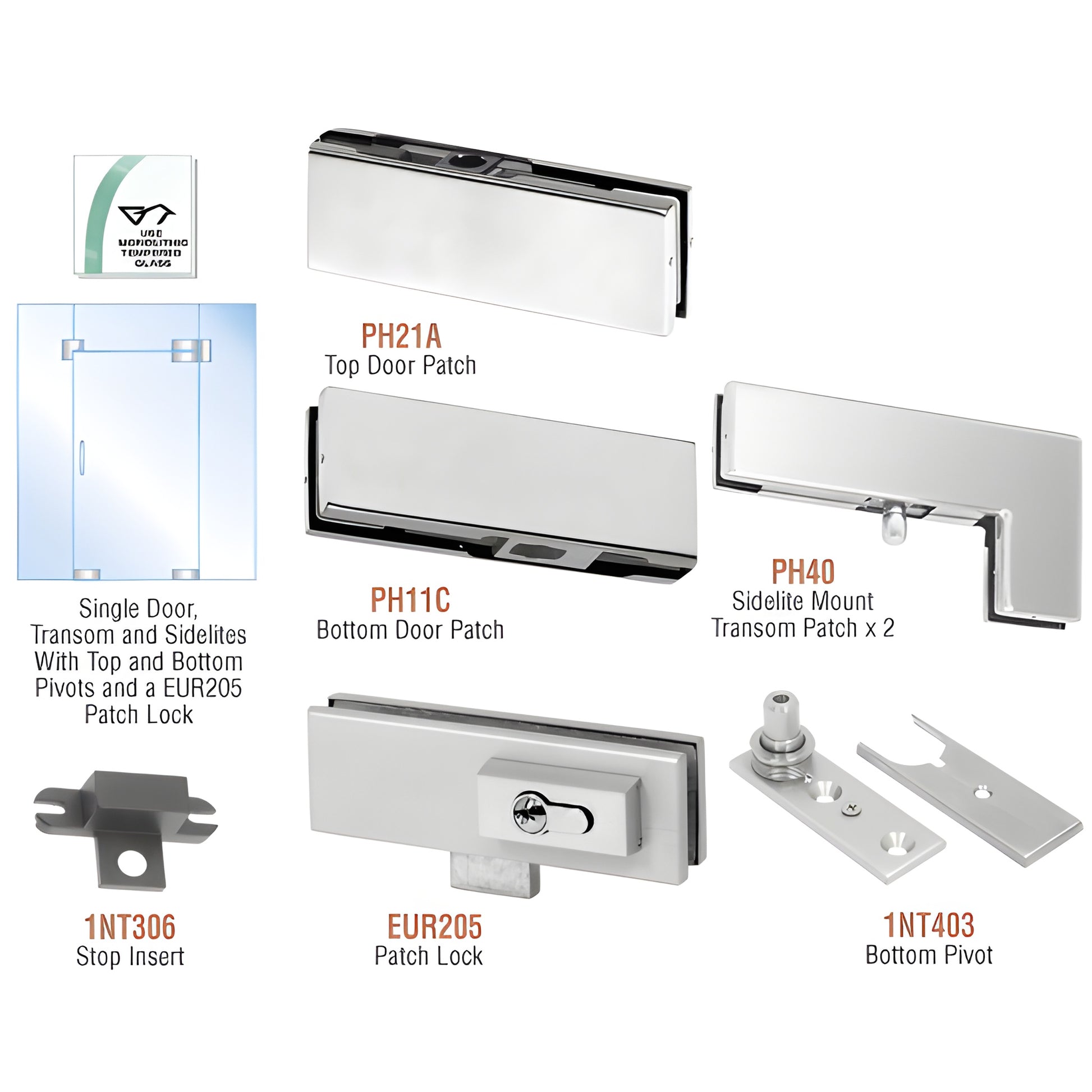

Kit Contains:
- 2 - PH40 sidelite mount transom patches
- 1 - PH21A top door patch
- 1 - PH11C bottom door patch
- 1 - 1NT306 stop insert
- 1 - 1NT403 bottom pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must have required holes and notches)
Kits with a lock include one EUR205 patch lock. Cylinders, thumbturns, and keepers are sold separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not impervious to rust or staining. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the CRL PHE5 European Door Kit (PHE5LBS) for a clean all-glass commercial door appearance—contact us to confirm glass cutouts and place your order.
