CRL Stainless European Patch Kit for Double Glass Doors - No Lock
CRL Stainless European Patch Kit for Double Glass Doors - No Lock
Regular price
$849.51 CAD
Regular price
Sale price
$849.51 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE7PS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Pair With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Five architectural finishes
- Available with or without locks
CRL PHE7 European Double Door Kits (SKU: PHE7PS) include the core hardware to assemble a pair of free-swinging European-style glass doors with a fixed transom and sidelite (glass and additional supports for the fixed transom and sidelite not included). Pivot setback is 2-9/16" (65 mm). Compatible with a floor closer using a tapered spindle (ordered separately). Ideal for commercial and residential pivot glass door installations that require durable tempered glass pivot door hardware.

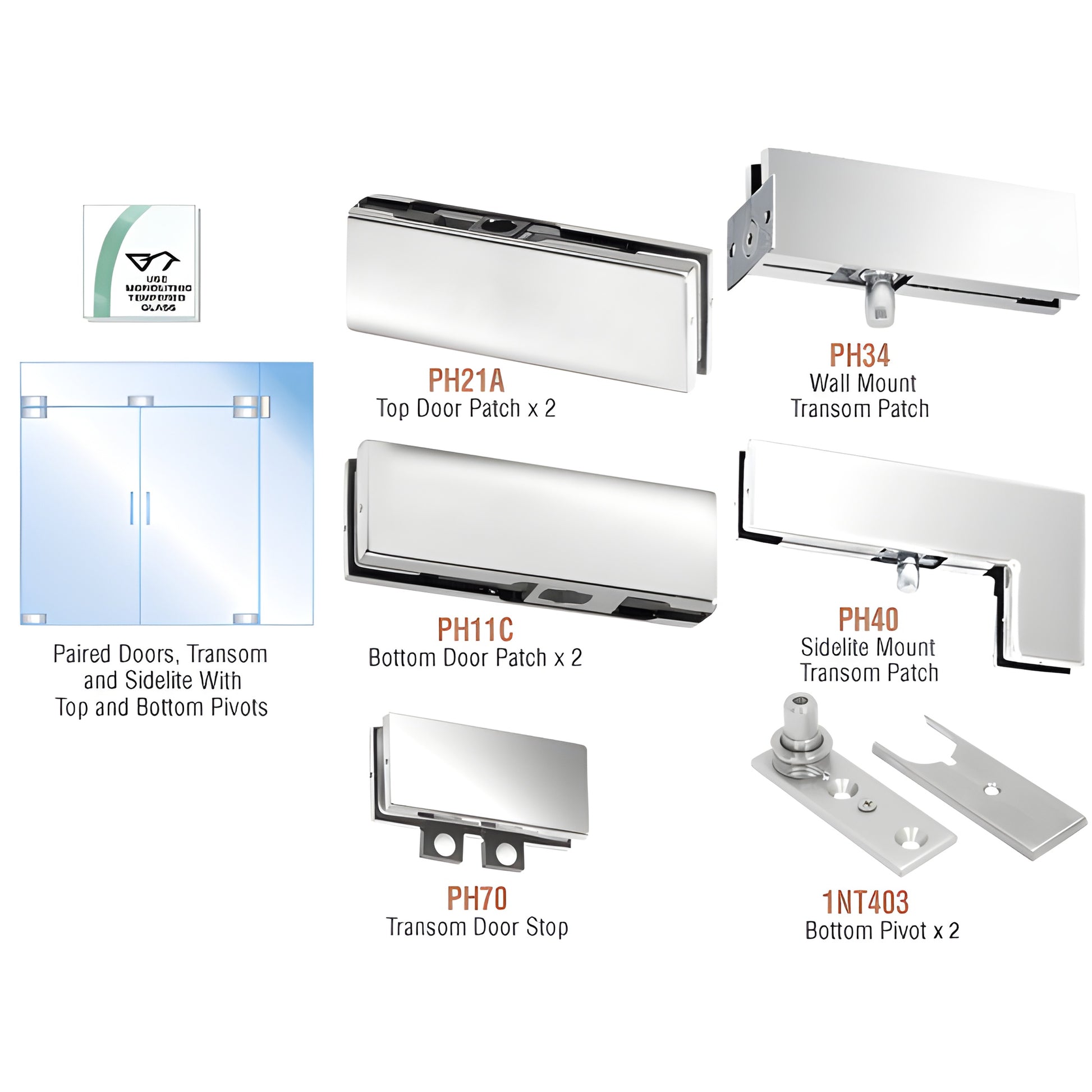

Kit contains:
- 1 - PH34 Wall Mount Transom Patch
- 1 - PH40 Sidelite Mount Transom Patch
- 2 - PH21A Top Door Patches
- 2 - PH11C Bottom Door Patches
- 1 - PH70 Transom Door Stop
- 2 - 1NT403 Bottom Pivots
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits configured with locks include two Cat. No. EUR205 patch locks. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Ready to specify a PHE7 European double door kit for your tempered glass pivot door project? Contact CRL or your local distributor to order or request product details.
