CRL Stainless European Patch Kit for Double Glass Doors, No Lock
CRL Stainless European Patch Kit for Double Glass Doors, No Lock
Regular price
$919.47 CAD
Regular price
Sale price
$919.47 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE8PS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Sidelite-Pair With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks
Complete hardware kit for a pair of free-swinging glass doors with fixed transom and two sidelites (glass and additional supports for transom/sidelites not included). Pivot setback: 2-9/16" (65 mm). Compatible with a floor closer that uses a tapered spindle (floor closer ordered separately).

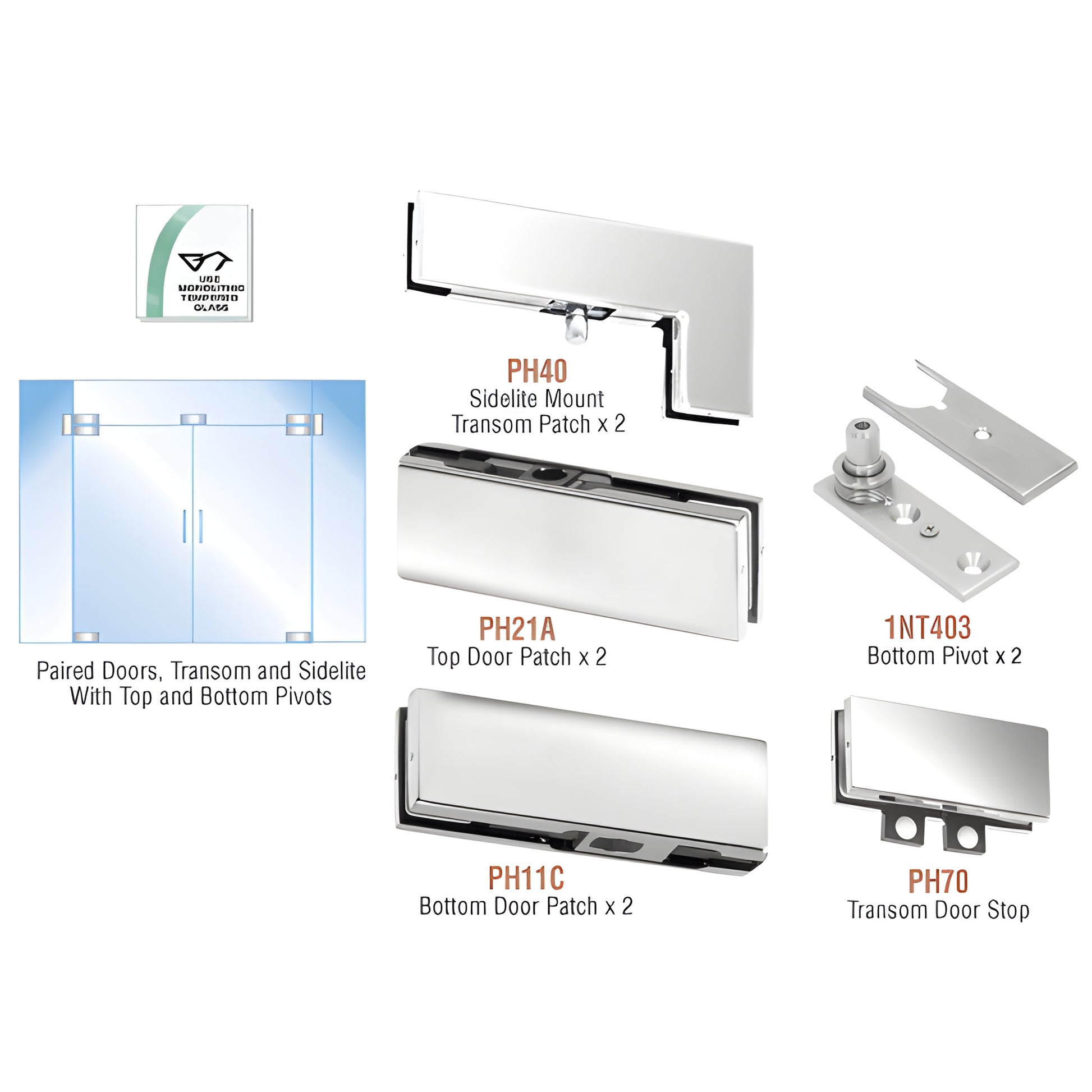

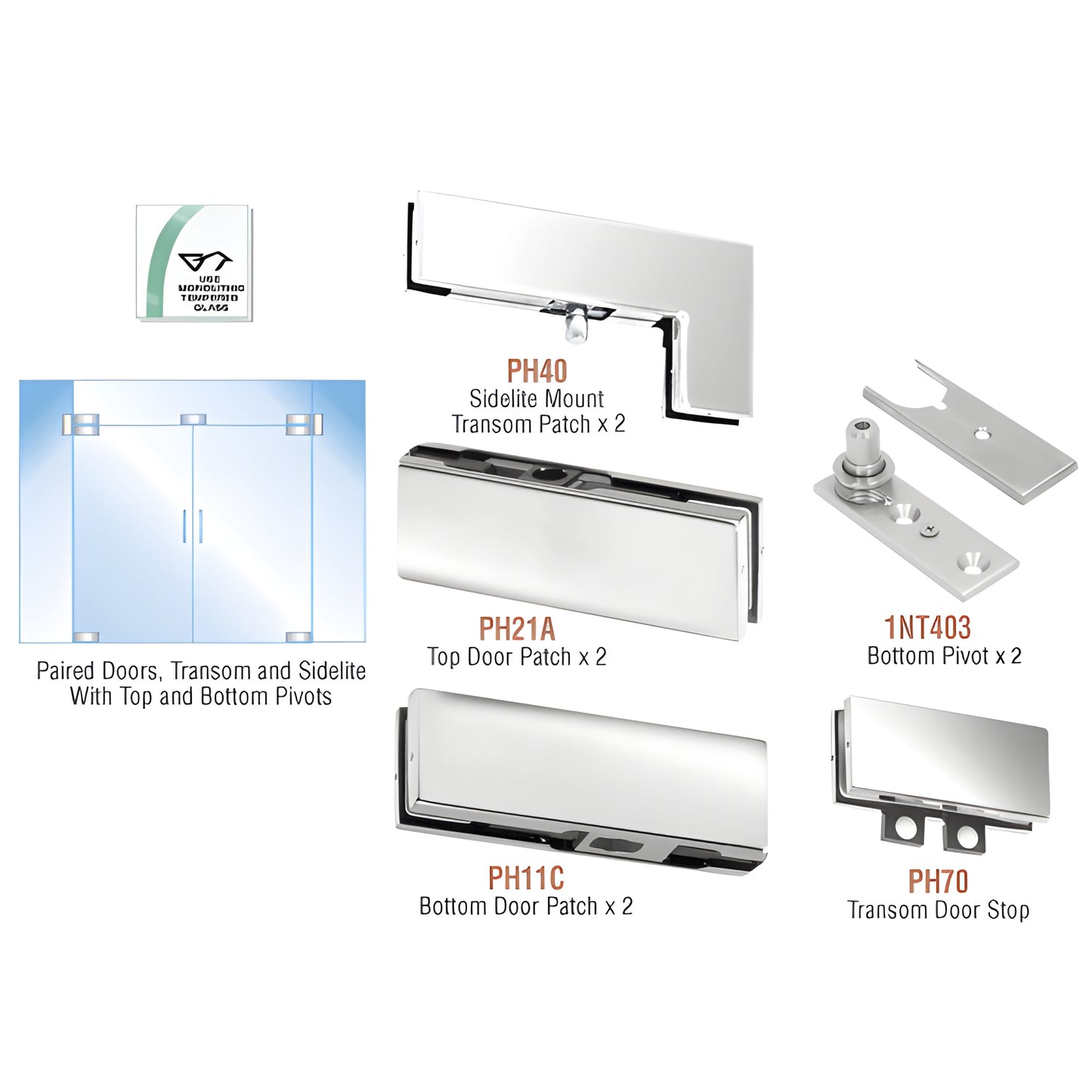

Kit Contains:- 2 - PH40 sidelite mount transom patches
- 2 - PH21A top door patches
- 2 - PH11C bottom door patches
- 1 - PH70 transom door stop
- 2 - 1NT403 bottom pivots
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must have required holes and notches)
Kits with locks include two Cat. No. EUR205 patch locks; cylinders, thumbturns, and keepers sold separately.
Compliance: For maximum door sizes, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Perfect for architects and contractors seeking a European double glass door hardware kit for 3/8" or 1/2" tempered glass. Order your PHE8PS kit today.
