CRL Stainless Patch Kit for Double Doors, Fixed Transom (No Lock)

• Most Popular Design
• For 3/8" or 1/2" (10 or 12 mm) tempered glass doors
• Available with or without locks

CRL PHA6 North American Door Kits (SKU: PHA6PS) provide a complete glass door pivot hardware kit to build a pair of free-swinging glass doors with a fixed transom (glass and additional transom supports not included). Pivot setback is 2-3/4" (70 mm). A floor closer with tapered spindle (ordered separately) may be used with this kit for controlled closing on commercial or residential glass doors.

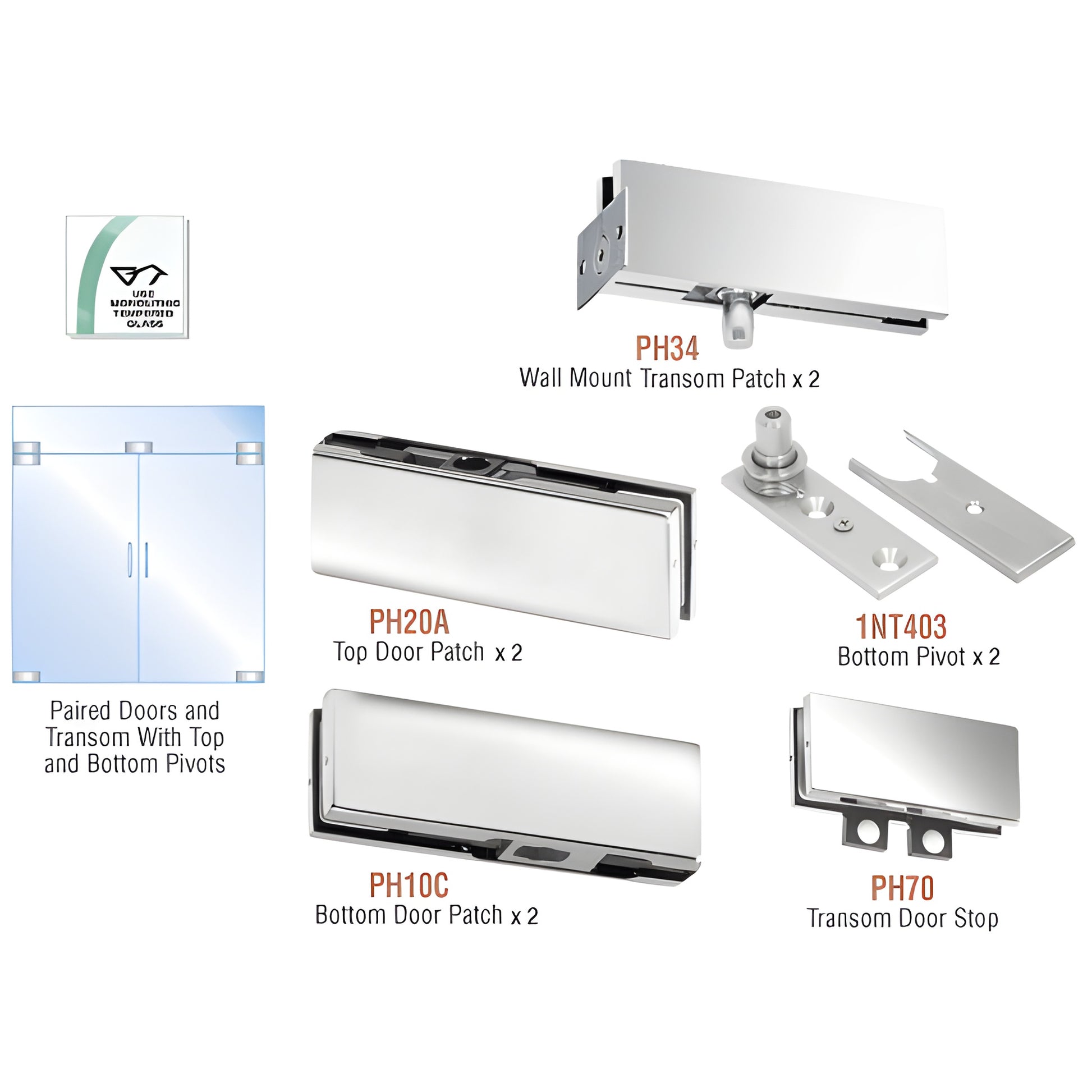

Kit contains:

• 2 — PH34 wall mount transom patches
• 2 — PH20A top door patches
• 2 — PH10C bottom door patches
• 1 — PH70 transom door stop
• 2 — 1NT403 bottom pivots
• Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)

Kits with locks also include two AMR205 patch locks; cylinders, thumbturns, and keepers are ordered separately. This tempered glass door patch kit is ideal for frameless storefronts, office entries, and interior glass partitions where a clean stainless steel finish and reliable pivot hardware are required.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Stainless Steel Advisory:

Key differentiators: Complete pivot hardware kit for pairs of free-swinging tempered glass doors, compatible with 3/8" or 1/2" glass, optional factory-compatible patch locks, and designed to meet GANA maximum size guidelines
