CRL Stainless Patch Kit for Double Doors (Fixed Transom) No Lock
CRL Stainless Patch Kit for Double Doors (Fixed Transom) No Lock
Regular price
$779.56 CAD
Regular price
Sale price
$779.56 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE6PS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Pair With Transom
Door Type
A Style Glass Door
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- Most Popular Design
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks
CRL PHE6 European Double Door Kits (SKU: PHE6PS) include all hardware required to assemble a pair of free-swinging glass doors with a fixed transom, except glass and any additional supports for the fixed transom. Pivot setback: 2-9/16" (65 mm). A floor closer with tapered spindle (ordered separately) can be used with this kit.

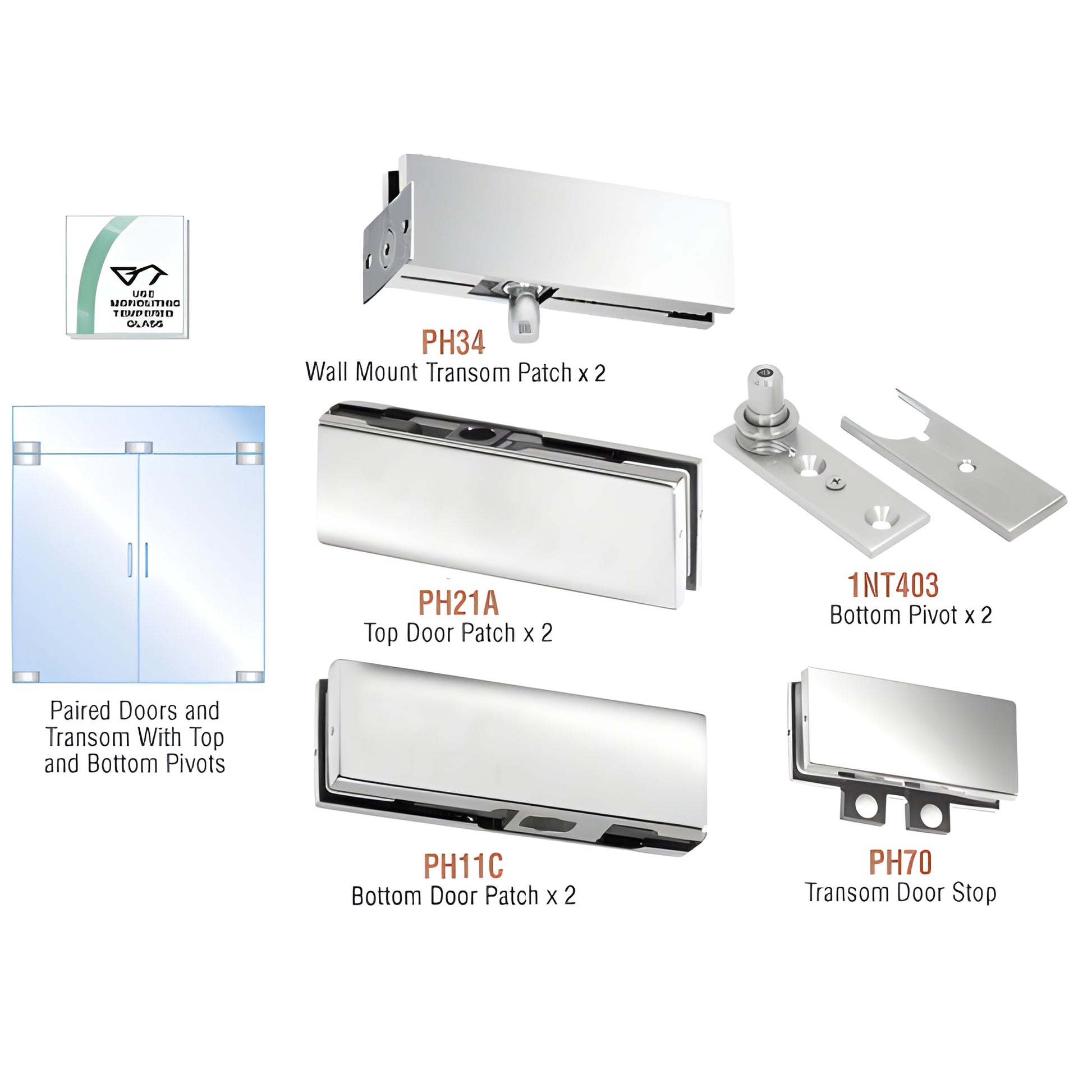

Kit contains:
- 2 - PH34 wall mount transom patches
- 2 - PH21A top door patches
- 2 - PH11C bottom door patches
- 1 - PH70 transom door stop
- 2 - 1NT403 bottom pivots
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits with locks include two EUR205 patch locks. Cylinders, thumbturns, and keepers are ordered separately.
Note: For maximum door sizes, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Ideal for commercial glass storefronts and interior glass partitions, this European double door patch kit (PHE6PS) delivers durable pivot hardware and flexible lock options. Order now to complete your tempered glass double door assembly.
Specifications
Cleaning & Maintenance
