CRL Stainless Patch Kit with Lock for Glass Transom & 2 Sidelites
CRL Stainless Patch Kit with Lock for Glass Transom & 2 Sidelites
Regular price
$702.46 CAD
Regular price
Sale price
$702.46 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHA5LPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Sidelite-Single With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4
Overview
- 'All-Glass' look for contemporary storefronts and interior glass doors
- Designed for 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks (lock components sold separately)
CRL PHA5 North American Door Kits (SKU: PHA5LPS) include the hardware needed to complete a free-swinging tempered glass door with fixed transom and two sidelites, excluding glass and any additional supports for the fixed transom and sidelites. Pivot setback: 2-3/4" (70 mm). Compatible with a separately ordered floor closer with tapered spindle. Ideal for all-glass storefronts, interior glass partitions, and commercial tempered glass door installations.

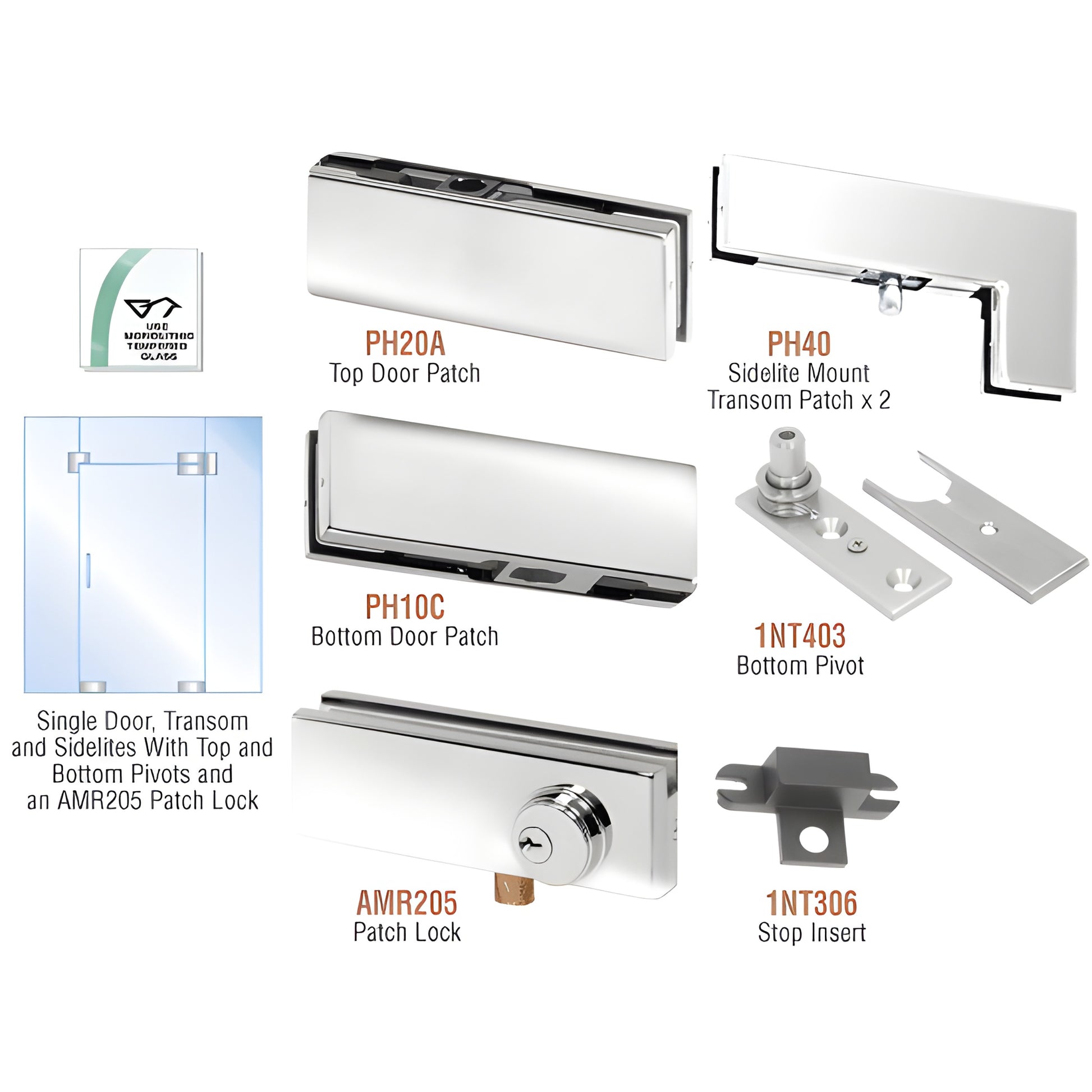

Kit Contains:
- 2 - PH40 sidelite mount transom patches
- 1 - PH20A top door patch
- 1 - PH10C bottom door patch
- 1 - 1NT306 stop insert
- 1 - 1NT403 bottom pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must be prepped with required holes and notches)
Kits supplied with a lock also include one Cat. No. AMR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Optimize your commercial tempered glass door project with the PHA5LPS North American Door Kit — order or request a quote today.
