CRL Tremco® .200" Wedge Gasket Glazing Spline
CRL Tremco® .200" Wedge Gasket Glazing Spline
Regular price
$902.32 CAD
Regular price
Sale price
$902.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1768013
Shipping Weight: 17.095 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 17.095 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Tremco |
| Finish/Color | Black |
| Durometer | 70 |
| Face Clearance 0.200 in. | (5.1 mm) |
| Material | EPDM |
| Metal Requirements 0.062 in. X 0.09 in. Metal Nib | (1.5 mm X 2 mm Metal Nib) |
| Roll Length 500 ft. | (152.4 m) |
Overview

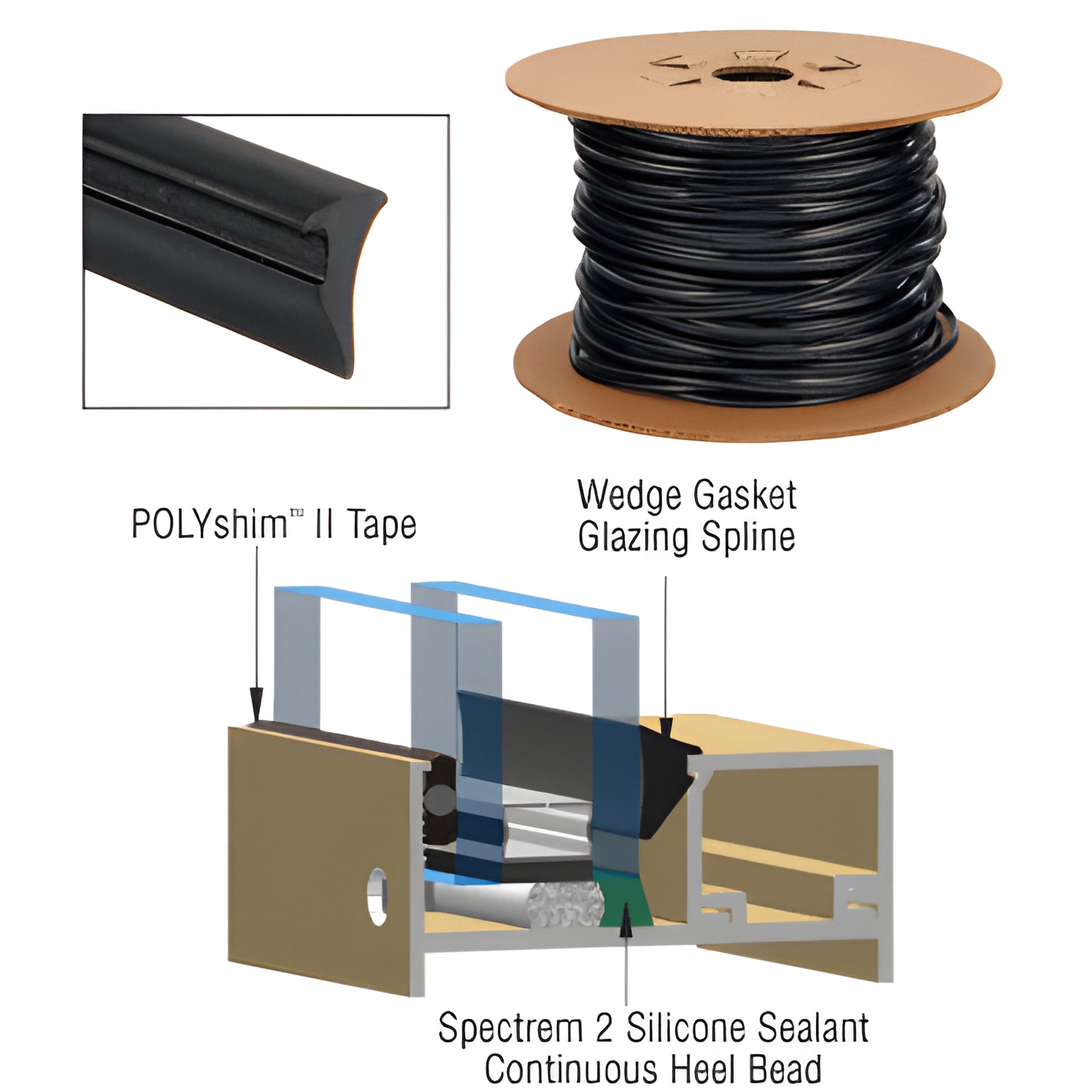

The CRL Tremco® Wedge Gasket Glazing Spline is expertly crafted from extruded 70 durometer dense EPDM, designed specifically for compression glazing systems with Tremco® POLYshim II Glazing Tapes.
This high-quality wedge profile requires a .090" x .062" (2.3 x 1.6 mm) metal nib for secure engagement, ensuring optimal performance in your glazing projects.
Tremco® recommends a mock-up to confirm proper mating between the Glazing Spline and the Metal Nib, enhancing installation accuracy.
For precise shipping costs, please contact CRL Customer Service, as most shipping weights are approximate.
This high-quality wedge profile requires a .090" x .062" (2.3 x 1.6 mm) metal nib for secure engagement, ensuring optimal performance in your glazing projects.
Tremco® recommends a mock-up to confirm proper mating between the Glazing Spline and the Metal Nib, enhancing installation accuracy.
For precise shipping costs, please contact CRL Customer Service, as most shipping weights are approximate.
