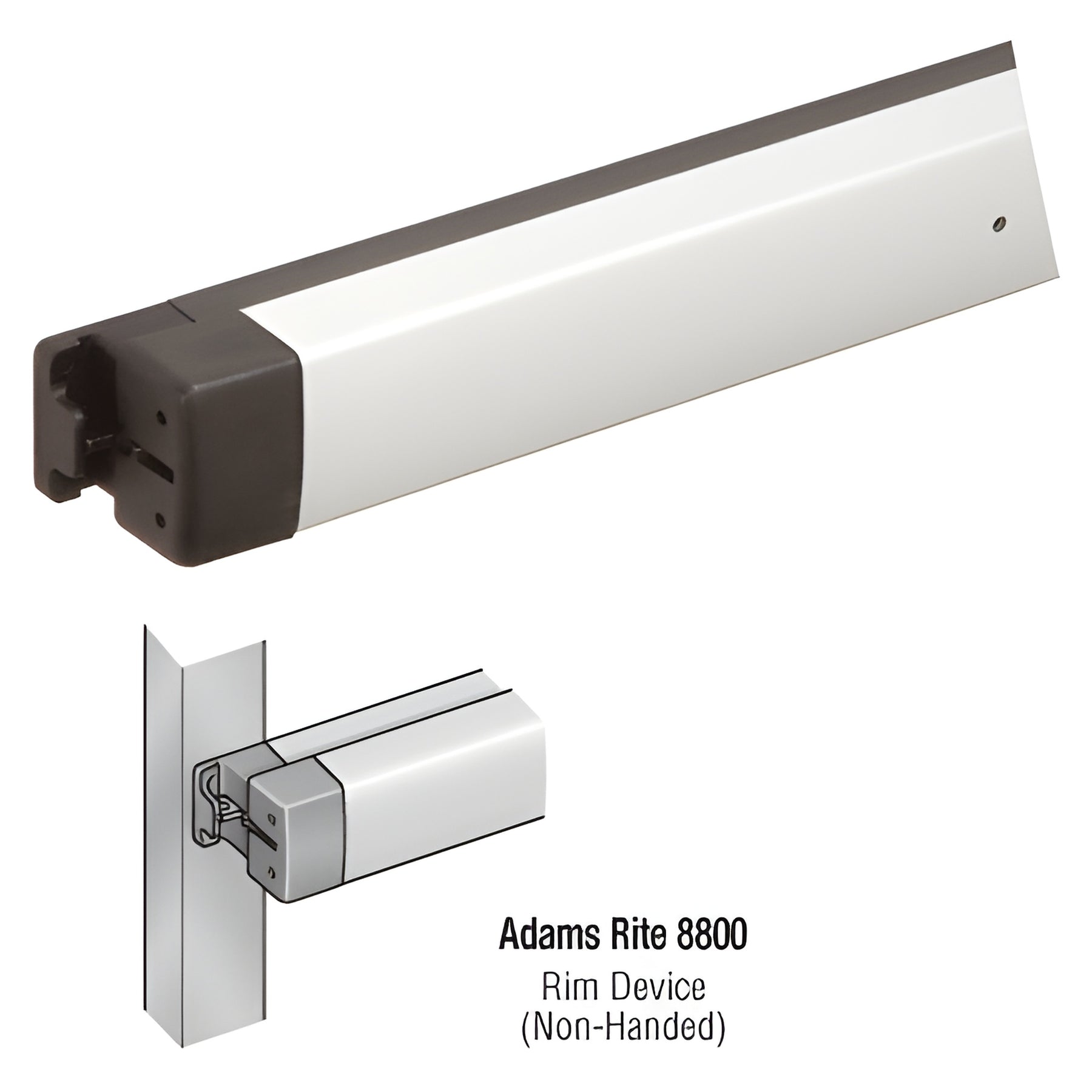

CRL-U.S. Aluminum Clear Anodized Panic Rim Adams Rite® 8800 Only 42"

Finish (2)

Clear Anodized
Dark Bronze

Overview

SKU	DH8801142
Sold as	1 Each
Brand	Adams Rite
Certification	ANSI A156.3 Grade 1
Door Height	96
Door Thickness Range	1-3/4 To 2-1/4
Door Width	42
Finish/Color:	Clear Anodized
Handing	Non Handed
Includes	Mounting Hardware
Material	Aluminum
Minimum Stile Width	2
Model	8801
Panic Bar Base Height	2-3/4
Panic Bar Projection	2-5/8
Panic Dogging	Standard Hex Key Dogging
Panic Type	Rim Exit Device Patented Starwheel
Push Pad Width	29-1/4
Recommended Door Type	Aluminum, Wood, Hollow Metal
Series	8800
UL Listed	Yes

Description

Product Details

Fits Door Stiles as Narrow as 2" (51 mm)
UL Listed and Tested to ANSI A156.3, Grade 1
Easy-to-Install
DL2170SCKDA
DL2170Y8KDA
Special Order

U.S. Aluminum products are made in the U.S.A. to the exacting standards you expect from the leader in aluminum architectural systems. Over the years U.S. Aluminum has created hundreds of custom items to satisfy specific job requirements.

REPLACEMENT PARTS: DL2170SCKDADL2170Y8KDASpecial Order
