CRL-U.S. Aluminum 250 Narrow Stile Entrance Door, KYNAR® Geared Hinge

• Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating glass unit (glass not included)
• Includes standard push/pull hardware, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders
• 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 21 applications
• Custom fabricated to accept a wide range of optional hardware applications (ready for Gear Hinge, pivots, and more)

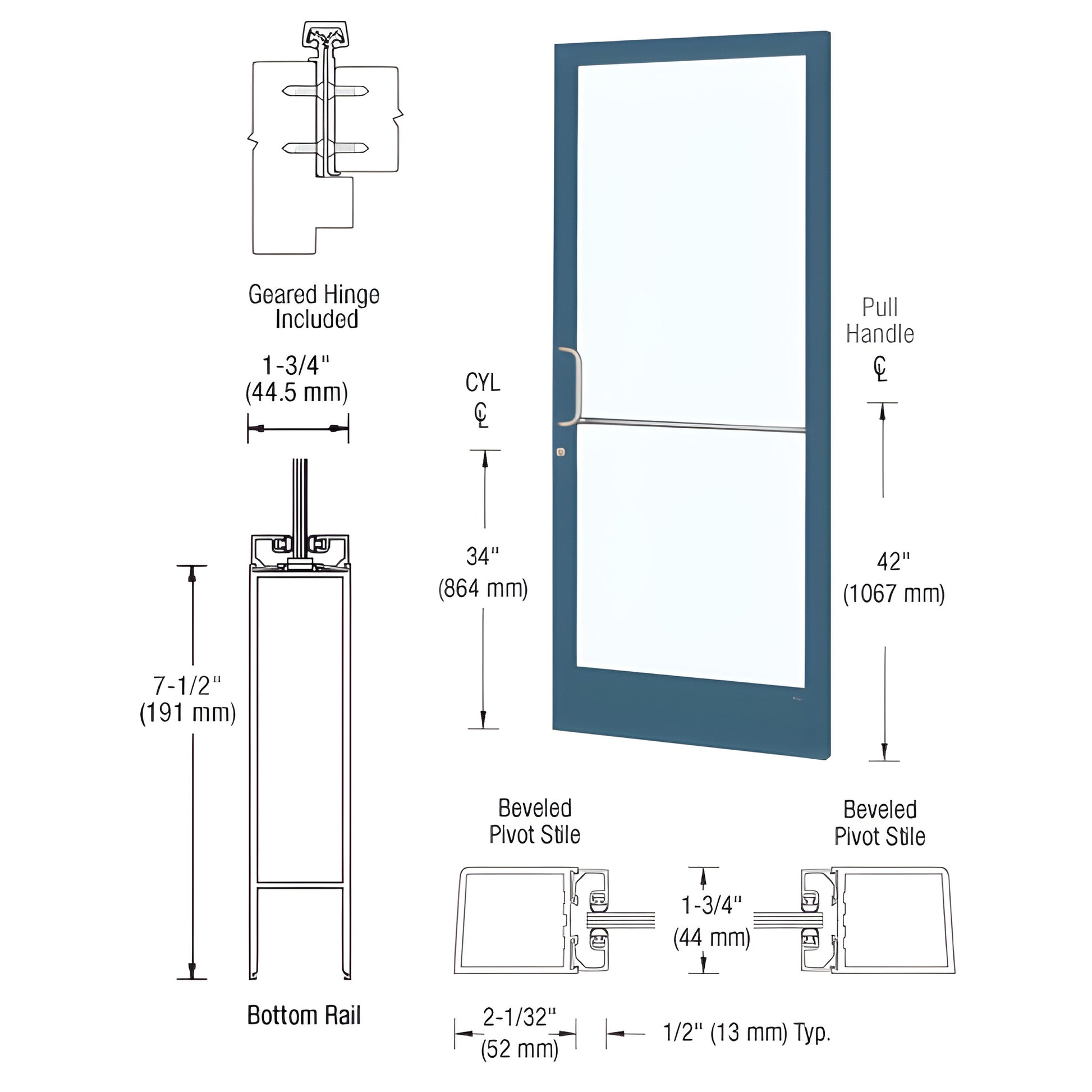

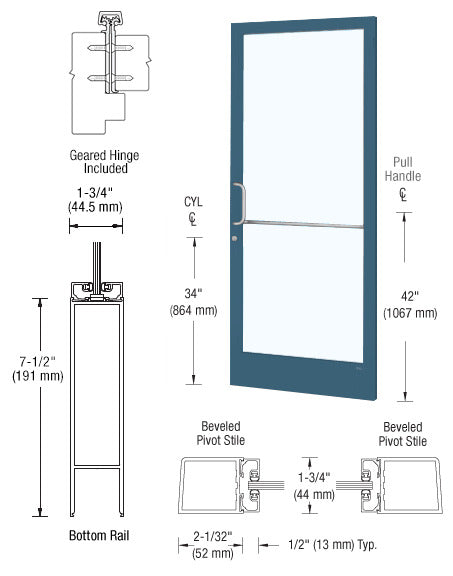

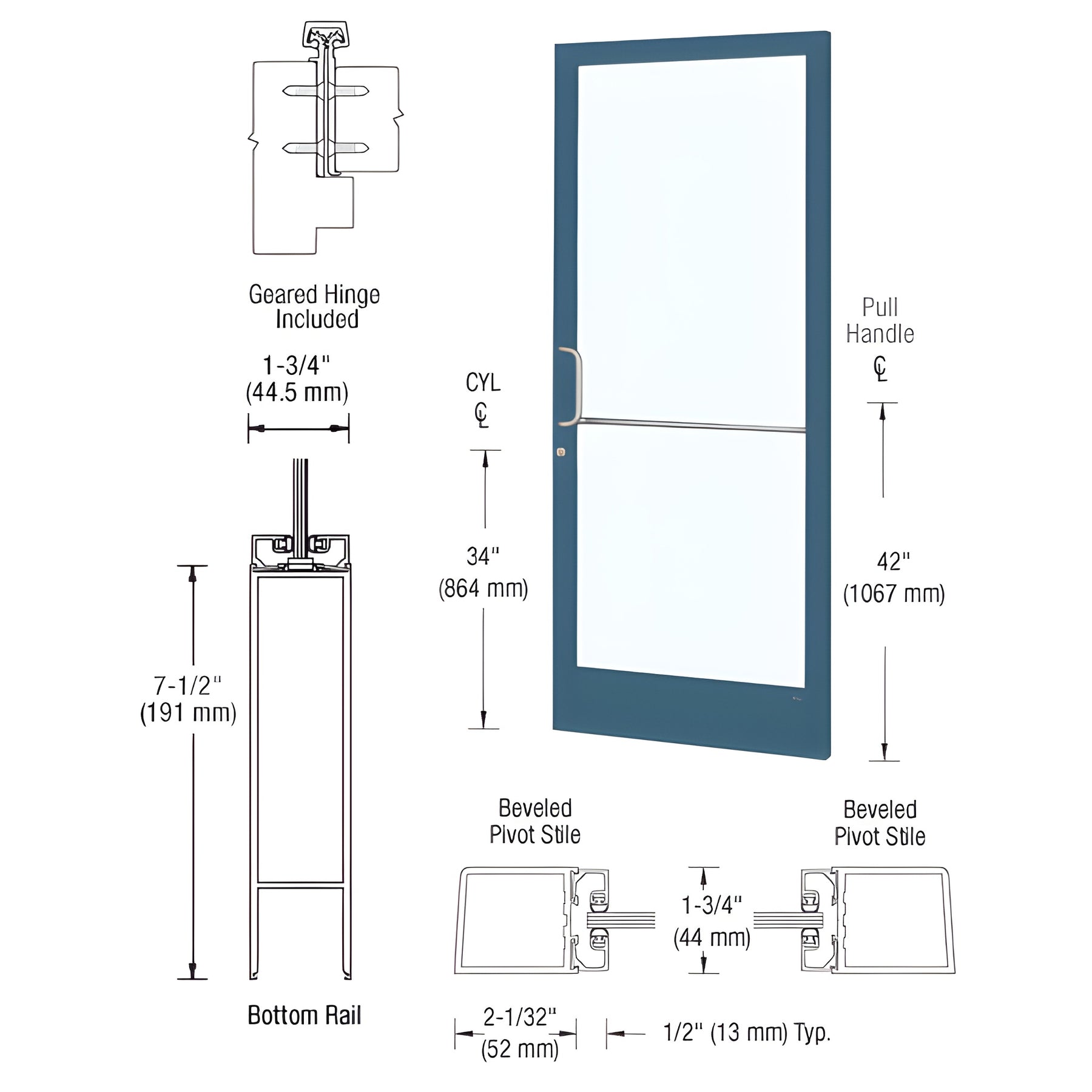

This Custom Narrow Stile Entrance Door (SKU HE21871) is a commercial-grade narrow stile door designed for storefront and entrance applications. Built with 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail, it includes stiles prepared for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. Ideal as a narrow stile storefront door, it can be custom fabricated to accept additional optional hardware for locks, closer devices, and ADA-compliant configurations.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to avoid transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Order the HE21871 custom narrow stile entrance door or contact us for a quote and customization options.
