CRL-U.S. Aluminum Anodized 75-1/2x85-3/4 Door Frame Kit Tubular Hinge
CRL-U.S. Aluminum Anodized 75-1/2x85-3/4 Door Frame Kit Tubular Hinge
Regular price
$632.88 CAD
Regular price
Sale price
$632.88 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FZ4251172
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

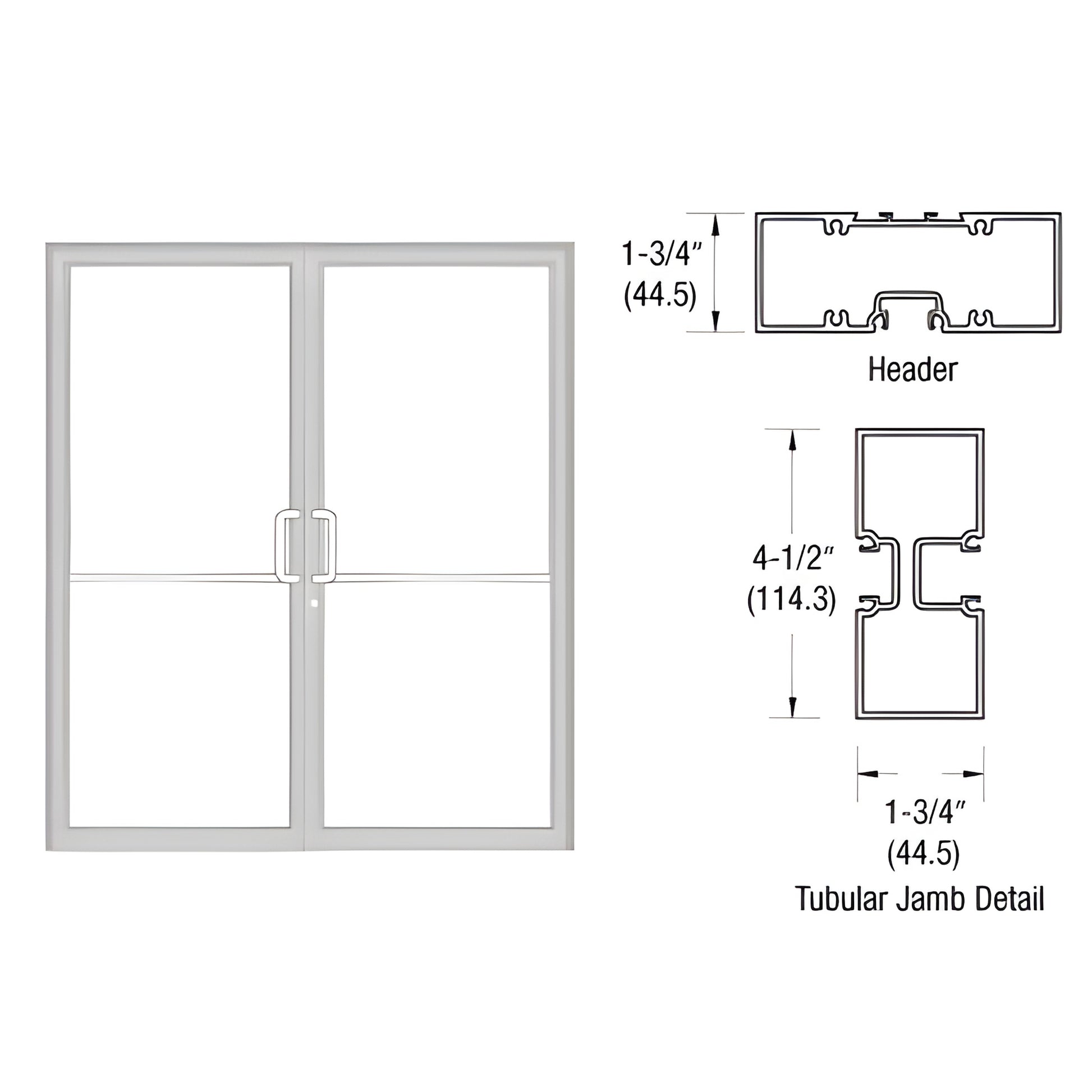

- 1-3/4" x 4-1/2" (44.5 x 114.3 mm) Butt Hinge Up and Over Frame with Tubular Jambs
- 75-1/2" x 85-3/4" (outside dimensions) base frame size (1.9 x 2.2 m)
- 72" x 84" (1.8 x 2.1 m) door opening
- Aluminum threshold included
Complete Frame built to accommodate a 72" x 84" butt hinge Concealed Vertical Rod panic door for a surface mount closer. Constructed with 1S456 tubular jambs and 1S467 header. Includes all associated extrusions, weatherstrip, standard hardware, and hardware preparations — assembled with standard fasteners (customer supplies fasteners to attach frame to opening). No modifications available on Standard Frames. SKU: FZ4251172.
All assembly fasteners, standard hardware, and hardware fabrication are included. Customer supplies fasteners to attach the frame to the opening. No modifications are offered on Standard Frames.
Why choose this frame: purpose-built for concealed vertical rod panic doors, compatible with surface mount closers, includes aluminum threshold and weatherstrip for improved sealing and durability.
Order SKU FZ4251172 or contact sales for lead time and shipping details.
