CRL-U.S. Aluminum Series 400 Medium Stile Door - KYNAR® Paint, Geared Hinge
CRL-U.S. Aluminum Series 400 Medium Stile Door - KYNAR® Paint, Geared Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD41971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders (SKU: CD41971)
- Fits 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications

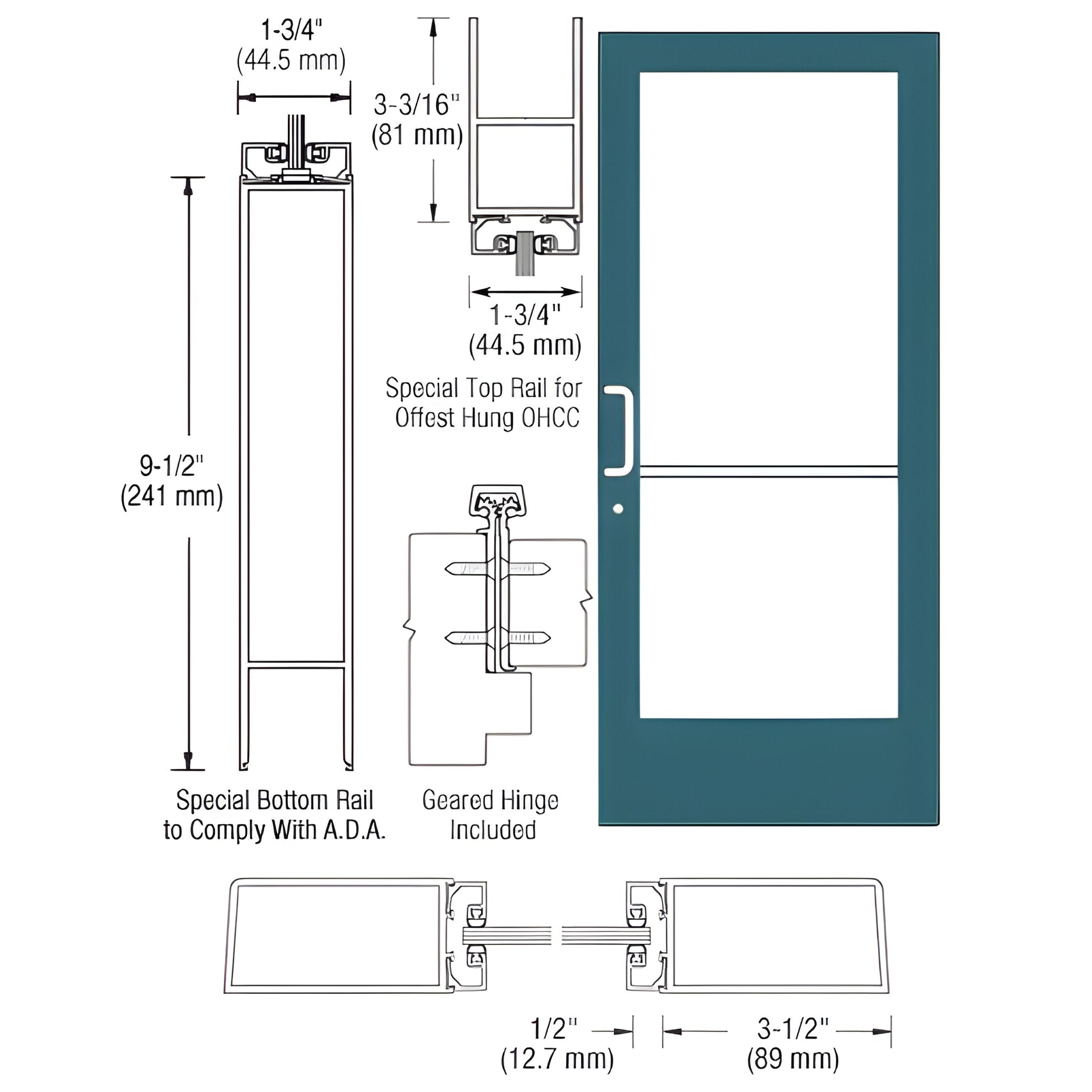

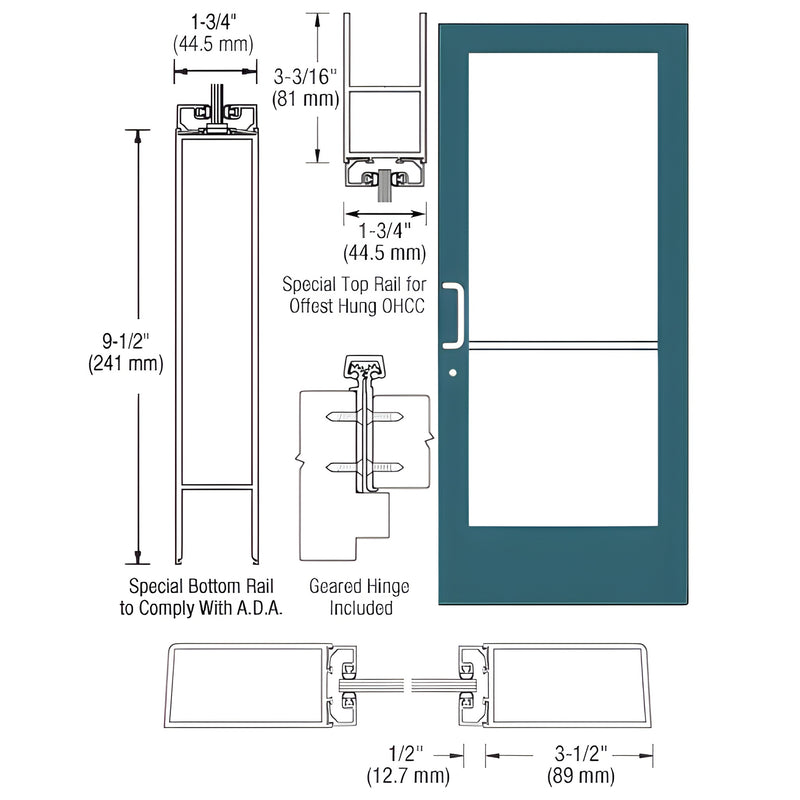

This CRL Custom Medium Stile Entrance Door features 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Stiles are prepared for Gear Hinge hardware and include glass stops sized for 1/4" (6 mm) tempered glass (by others). The door is designed for custom fabrication to accommodate optional commercial storefront hardware and security accessories.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Ideal for commercial storefronts and ADA-conscious installations—order SKU CD41971 or contact us for custom hardware options.
Specifications
BIM Objects - rvt
