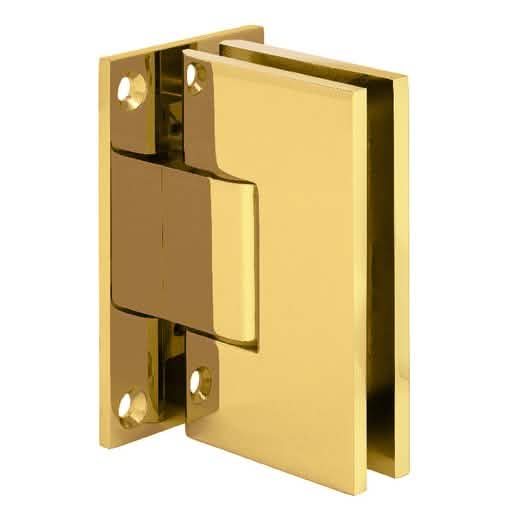

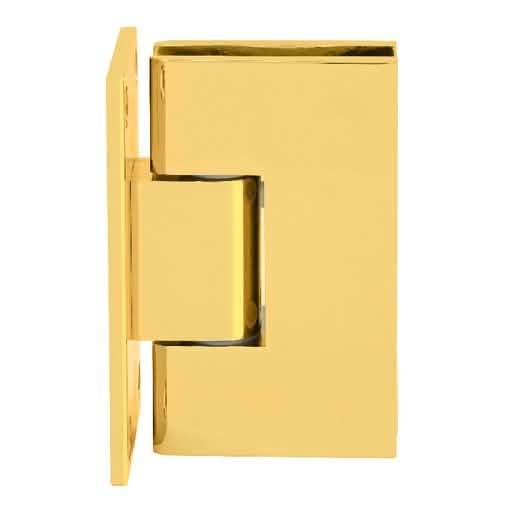

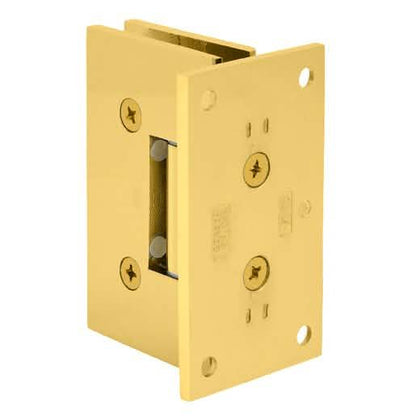

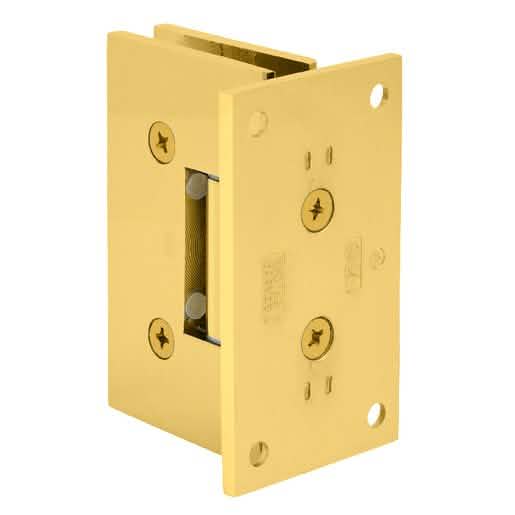

CRL Unlacquered Brass Victoria Series Wall Mount Full Back Plate Hinge
CRL Unlacquered Brass Victoria Series Wall Mount Full Back Plate Hinge
Regular price
$153.75 CAD
Regular price
Sale price
$153.75 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# VCT037ULBR
Shipping Weight: 3.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 3.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

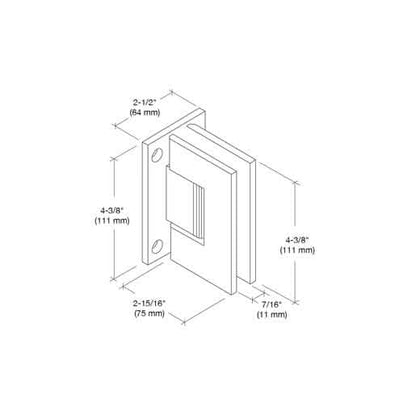

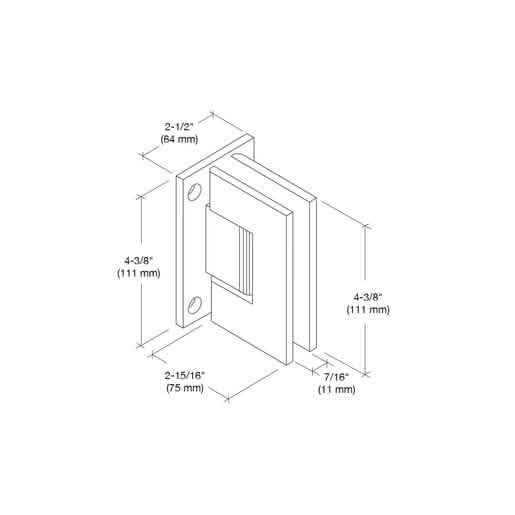

| 5 Degree Pre-Set No | No |
| Back | Plate Full |
| Construction | Solid |
| Finish/Color | Unlacquered Brass |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height 4-3/8 in. | (111 mm) |
| Material | Brass |
| Maximum Door Weight 140 lbs. | (63.5 kg) |
| Maximum Door Width 39 in. | (991 mm) |
| Maximum Door Width - | 2 Hinges 39 |
| Mounting | Type Wall Mount |
| Width 2-1/2 in. | (64 mm) |
Overview
The CRL Victoria Series Hinges are a top choice for heavier and wider shower doors, offering robust support for doors up to 140 lbs.
(64 kg) and 39" (1 m) wide using only two hinges.
These hinges feature an integrated safety interlock for enhanced glass panel control, available in both wall mount and 180-degree glass-to-glass models.
Designed for 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass, they provide a frameless aesthetic with minimal hardware.
Constructed from solid brass, the hinges offer exceptional durability with heat-treated stainless steel springs and a self-centering closing mechanism when within 15 degrees of the closed position.
Available in six popular finishes, these hinges are ideal for residential and hotel shower use.
(64 kg) and 39" (1 m) wide using only two hinges.
These hinges feature an integrated safety interlock for enhanced glass panel control, available in both wall mount and 180-degree glass-to-glass models.
Designed for 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass, they provide a frameless aesthetic with minimal hardware.
Constructed from solid brass, the hinges offer exceptional durability with heat-treated stainless steel springs and a self-centering closing mechanism when within 15 degrees of the closed position.
Available in six popular finishes, these hinges are ideal for residential and hotel shower use.
