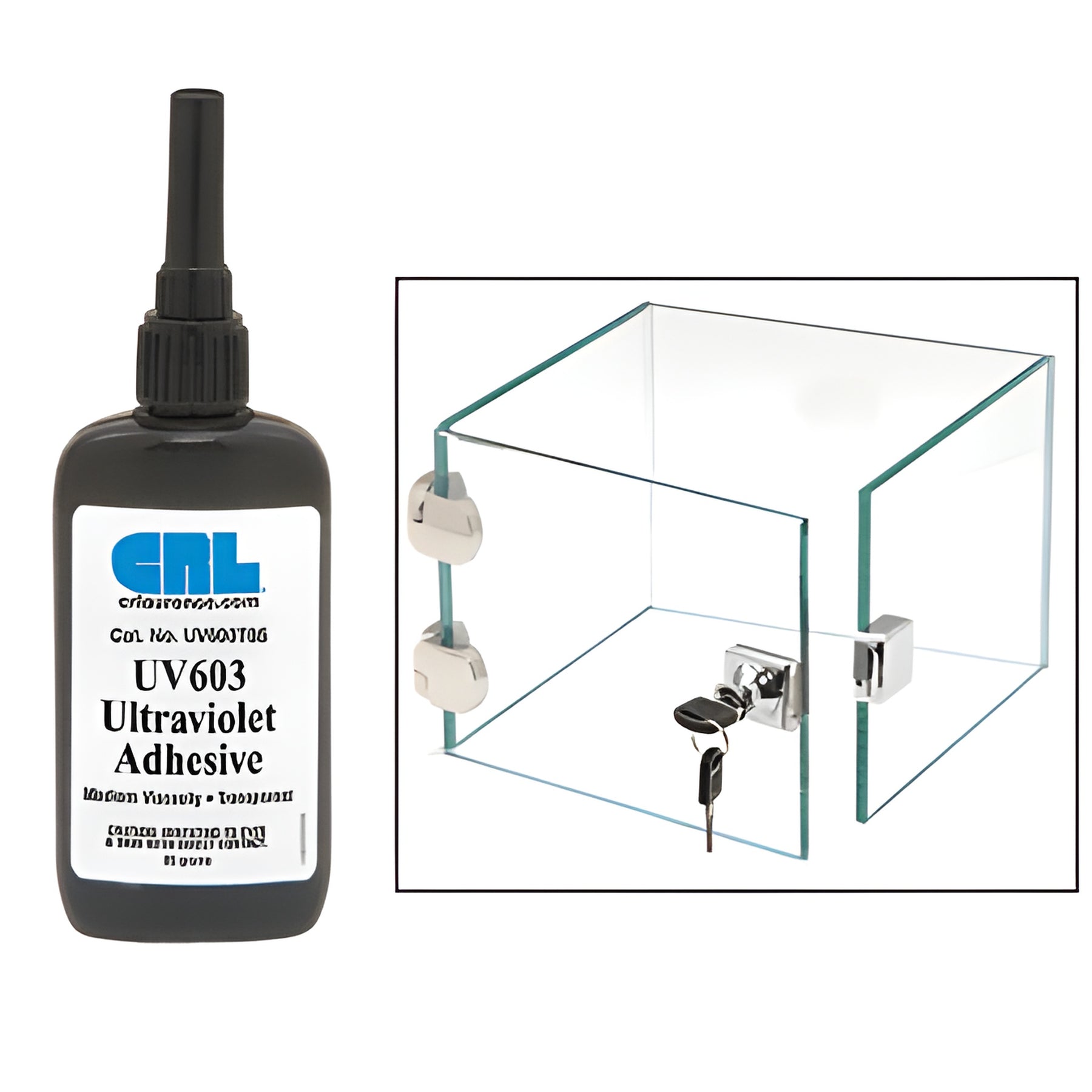

CRL UV603 Medium Viscosity UV Cure Adhesive 85g for Glass Bonding
CRL UV603 Medium Viscosity UV Cure Adhesive 85g for Glass Bonding
Regular price
$133.02 CAD
Regular price
Sale price
$133.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UV603T85
Shipping Weight: 2.992 Ounces
Shipping Limitations: Hazardous Material - No Air Shipments
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.992 Ounces
Shipping Limitations: Hazardous Material - No Air Shipments
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Acceptable Bond line Gap
0.5 mil To 1 mil(0.013 mm To 0.025 mm)
Contents
85 Grams
Glazing Thickness
1/4
Medium Viscosity
Yes
Shelf Life
12 Months
Shore D Hardness
25-35
Tensile Strength
2400 psi(16547.4 Kpa)
Wrist Circumference
1/4 in. (6 mm)
Overview
- Extremely flexible for bonding different materials and surface bonding
- Capillary action for glass up to 1/4" (6 mm)
- Acceptable bondline gap: 0.5 to 1 mil (0.0127 to 0.0254 mm)
- Tensile/shear strength: 1450 psi
- Shore D hardness: 25–35
- Optically clear, moisture- and yellowing-resistant
CRL UV603 (SKU: UV603T85) is a medium-viscosity, 100% solids, general-purpose UV curing adhesive that forms resilient, high-strength bonds between glass, metal, ceramic, and many plastics—ideal as a UV curing adhesive for glass bonding and an optically clear UV adhesive for visible joints.
Key benefits: CRL UV603 is extremely flexible with outstanding elongation, making it suitable for bonding different materials and for surface bonding up to 1 m² (10.8 ft²). It exhibits good capillary action on glass and cures within seconds when exposed to ultraviolet light—the cure speed depends on UV intensity at the adhesive surface and adhesive depth. Store away from sunlight.
For best results, use Cleaner and Degreaser to remove dirt and grease before bonding. Note: Test on plastics before use; not all plastics bond properly. Do not bond coated parts (powder coated or galvanized) with this adhesive.
Product Warning:
Shelf life: 12 months from lot number date on label.
Buy CRL UV603 (UV603T85) now
Specifications
Safety Data Sheets
