CRL

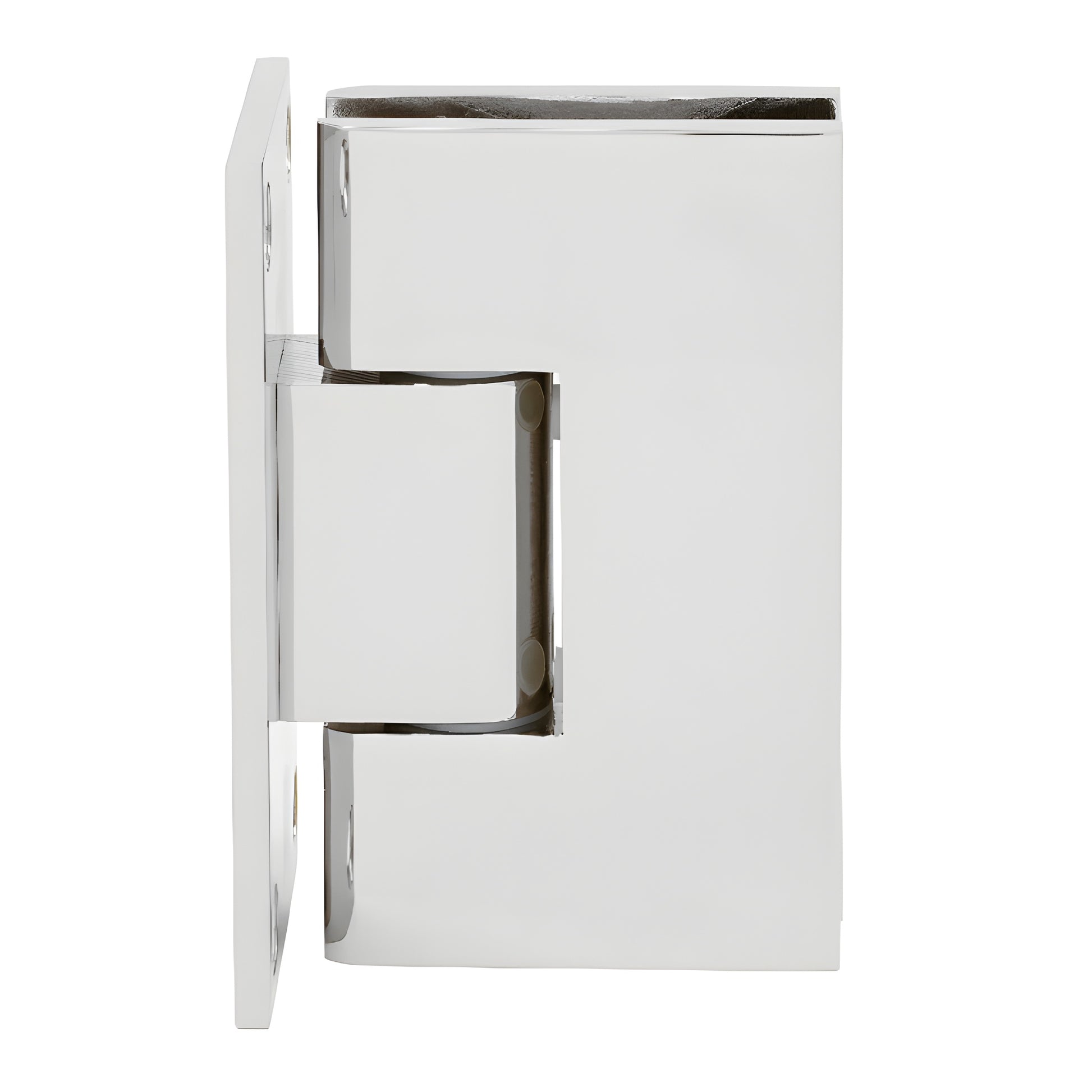

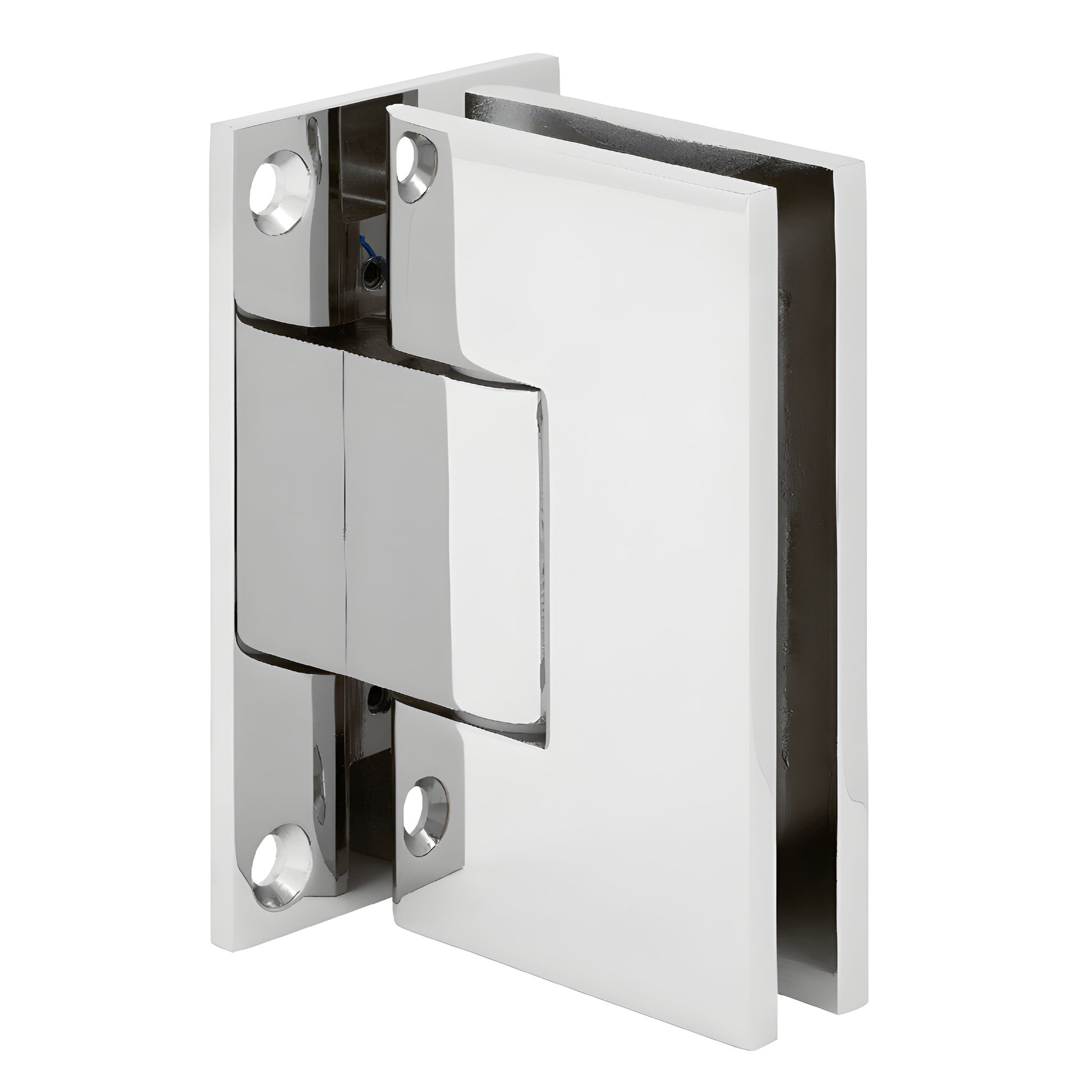

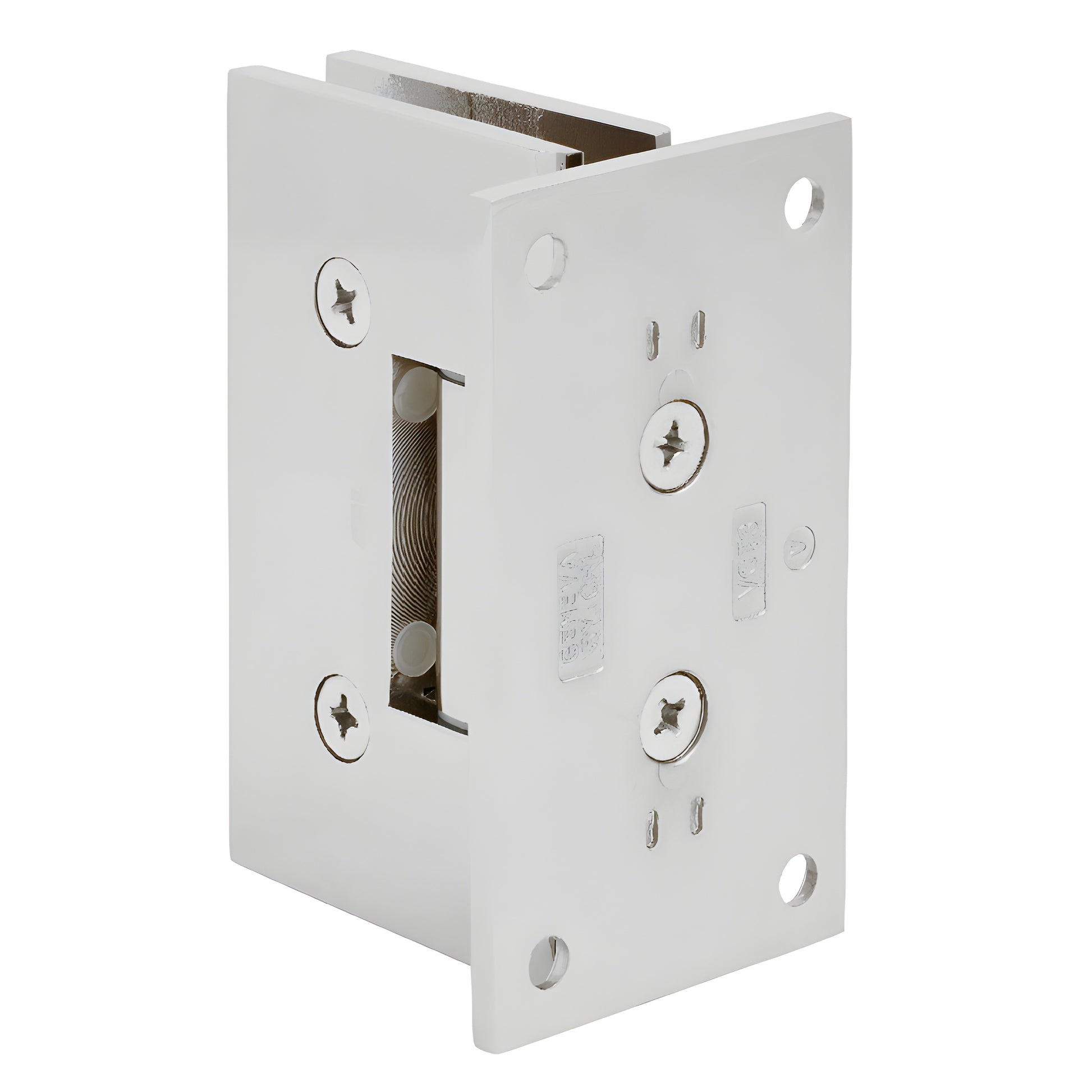

CRL Victoria 5 Degree Polished Chrome Shower Door Wall-Mount Hinge

CRL Victoria 5 Degree Polished Chrome Shower Door Wall-Mount Hinge

$147.06 CAD
$147.06 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# VCT537CH
Shipping Weight: 2.97 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

5 Degree Pre-Set
Yes
Adjustable
No
Back Plate
Full
Construction
Solid
Finish/Color
Polished Chrome
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
4-3/8 in. (111 mm)
Material
Brass
Maximum Door Weight
140 lbs. (63.5 kg)
Maximum Door Width
39 in. (991 mm)
Mounting Type
Wall Mount
Self-Centering
Yes
Series
Victoria
Width
2-15/16 in. (75 mm)

Overview

  • An excellent choice for heavier, wider shower doors — ideal for frameless and semi-frameless shower enclosures
  • Integrated safety interlock enhances glass panel control and secure closure
  • 5° pre-set model (factory set for a 5° tighter closure into the shower interior)
  • For use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass

CRL Victoria Series Hinges (SKU: VCT537CH) support wider, heavier doors — up to 140 lbs (64 kg) and 39" (1 m) wide using only two hinges, making them a reliable choice for heavy frameless shower door installations.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.

Order the VCT537CH Victoria Series hinge for dependable heavy-duty shower door performance — add to cart or contact CRL Customer Service for assistance.

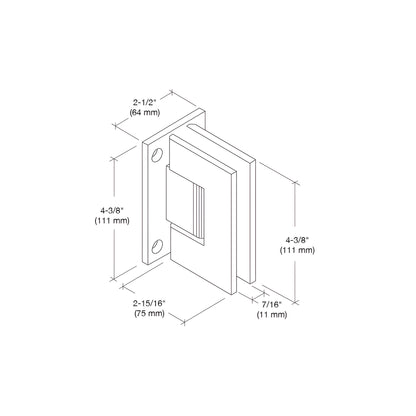

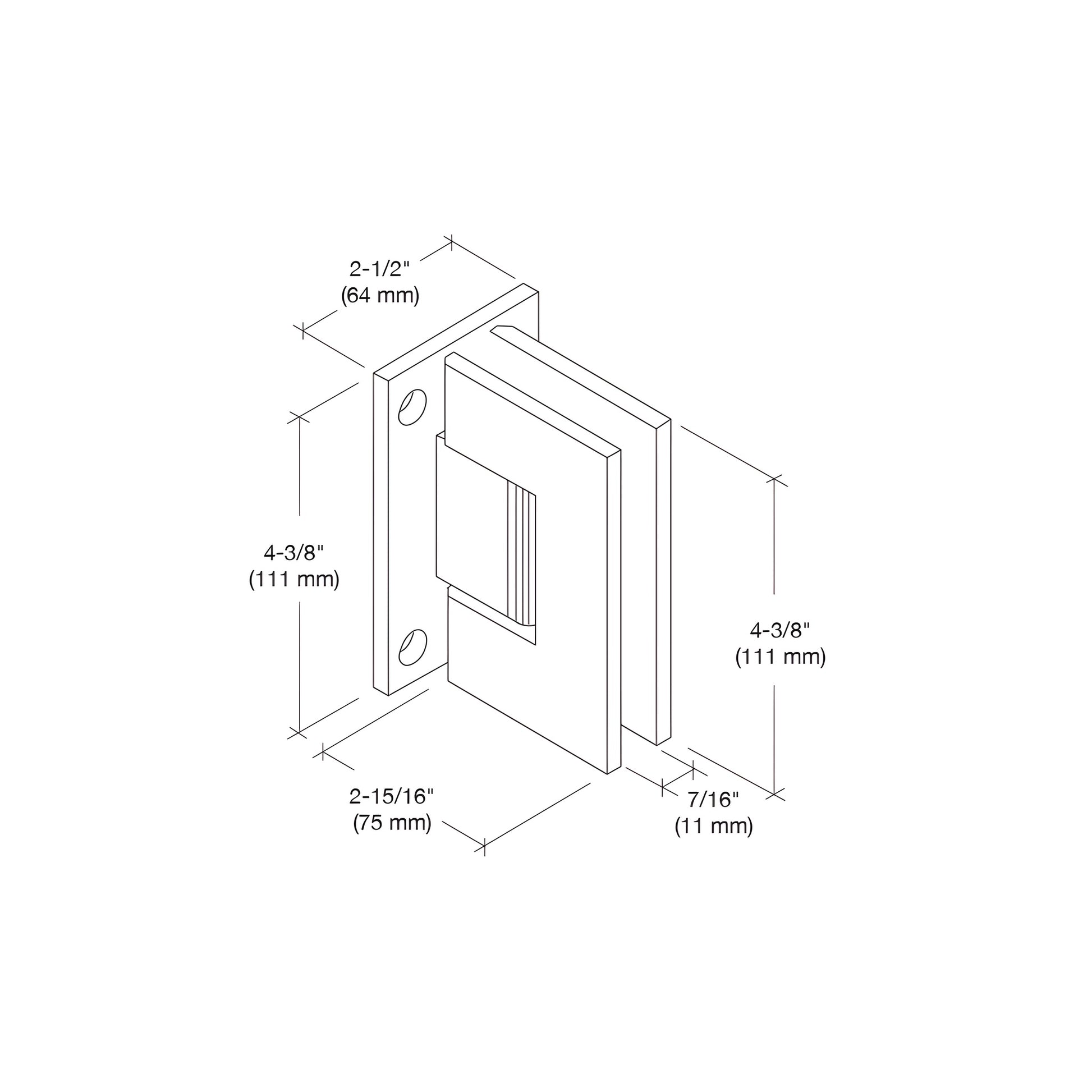

Specifications

Templates
VCT037 Template
