Product Details
- Replaces Entrygard® Body Style
- Two Finishes

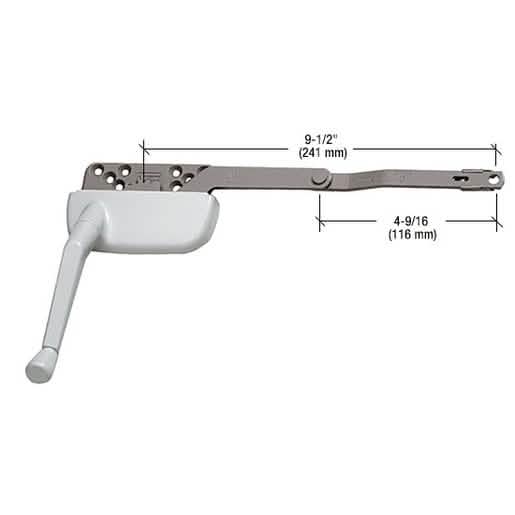

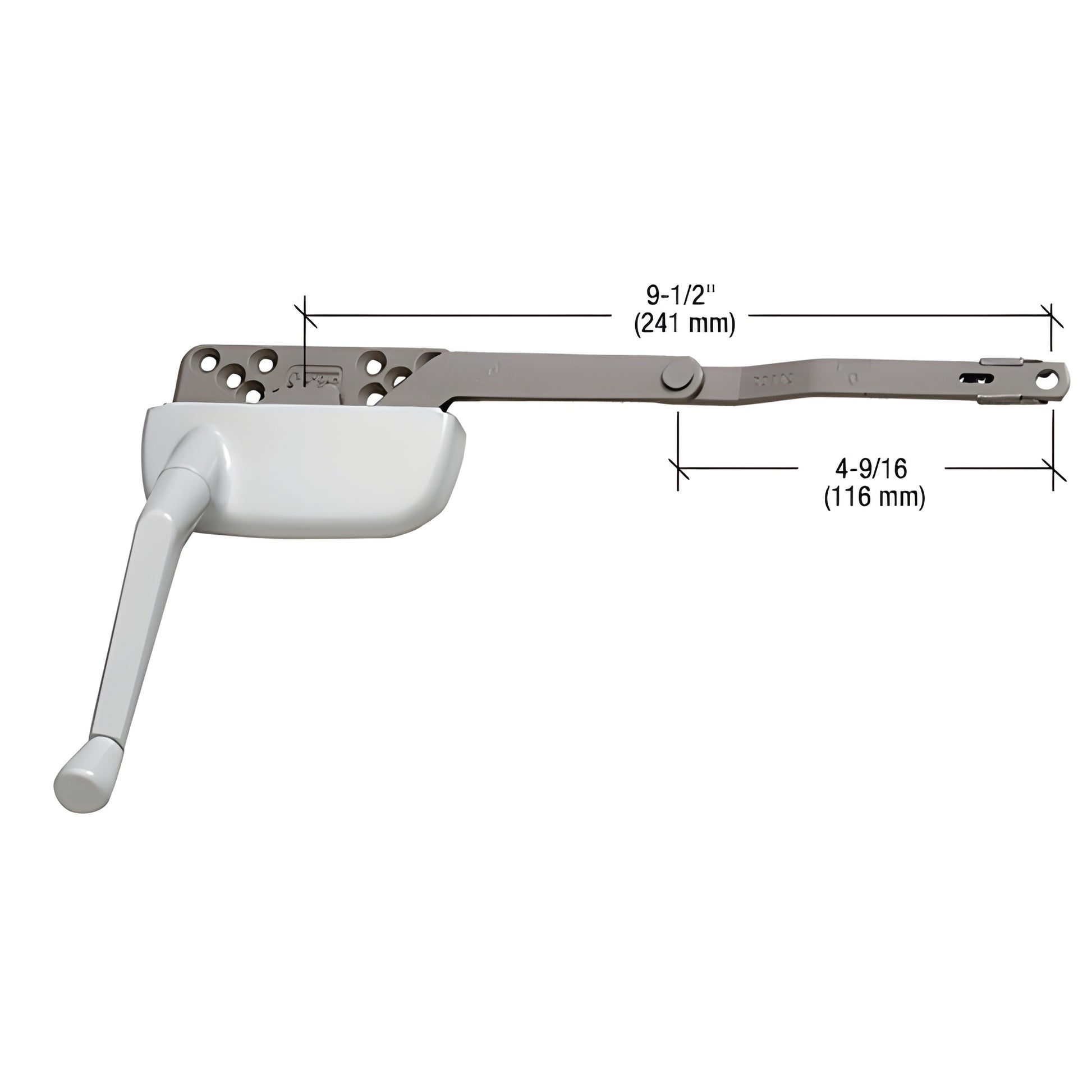

These new Ellipse Surface Mount Dyad Casement Window Operators replace the older traditional body style. The basic operation and mounting hole configuration is the same as the traditional style. This operator is designed to work on windows that open up to 90 degrees. A matching finish Crank Handle is included. The gear arm is flat and the link arm has an offset up. The attachment clip is located on the underside of the link arm. Link arm length is measured from center of rivet to center of attachment hole. Operator is also available by special order without a clip or with the clip mounted on the top of the link arm.
NOTE: Handing of CRL Casement Window Operators is determined by the hinged side of the window when looking from the inside out.
