CRL285 Satin Anodized Glass Sliding Door Kit 5/16-3/8 118"
CRL285 Satin Anodized Glass Sliding Door Kit 5/16-3/8 118"
Regular price
$3,168.33 CAD
Regular price
Sale price
$3,168.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL28510G
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
5/16 in. (8mm) to 1/2 in. (12mm)
Glazing Type
Tempered Insulated
Maximum Panel Weight
100 lbs. (45.4 kg)
Minimum Door Width
25-3/16 in. (64cm) / 40-3/16 in. (102cm)
Mounting Application
Glass
Track Length
118 in. (299.7cm)
Overview
- Softbrake braking system included for controlled stops
- Single sliding door kit for 5/16" to 3/8" (8 to 10 mm) tempered glass
- Maximum weight 176 lbs (80 kg); maximum panel width 59" (1.5 m)
- Kits contain all necessary hardware to complete the installation (excludes tempered glass, channel, and pull hardware)
- 118" (3000 mm) aluminum track length
- Designed for monolithic tempered glass (laminated glass not recommended)

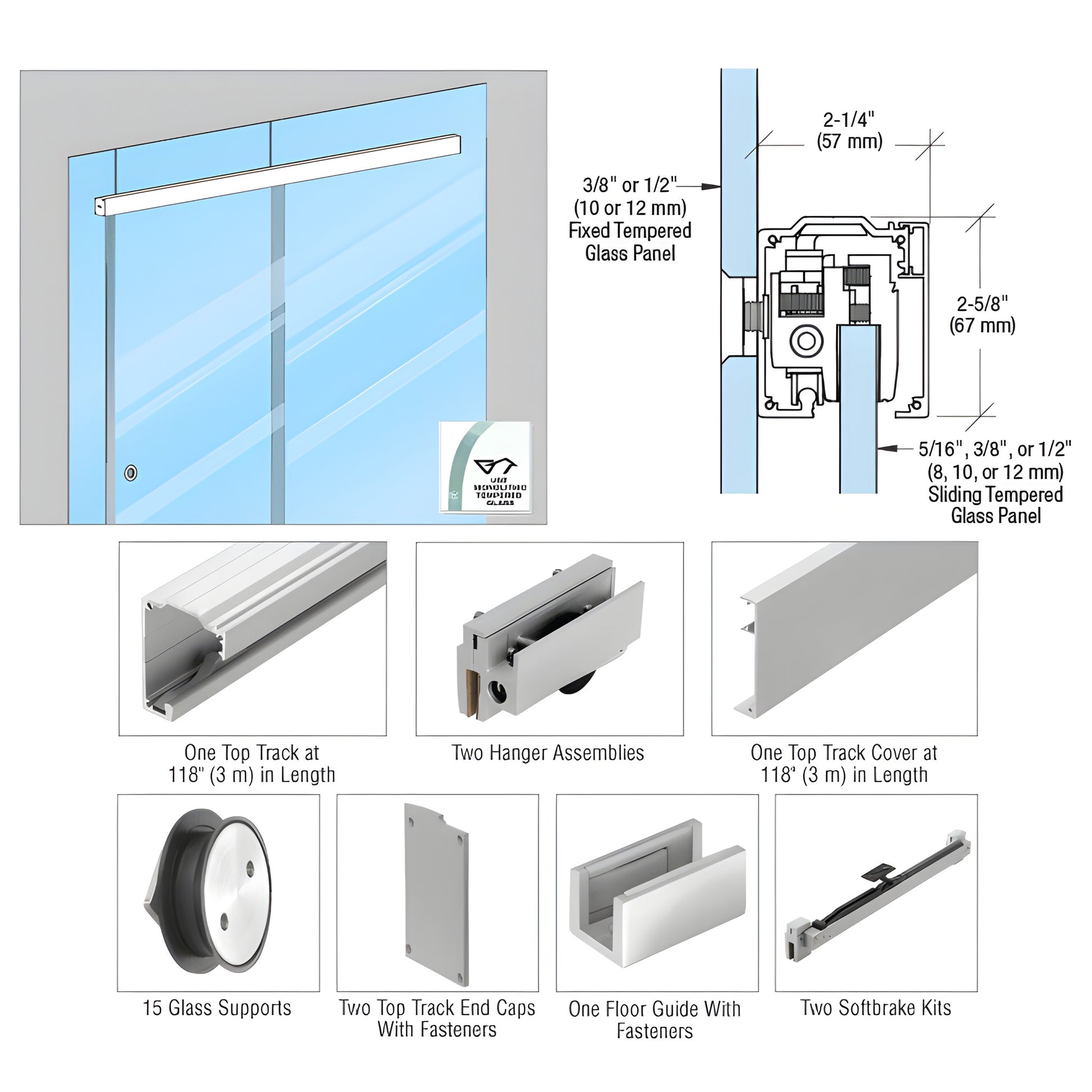

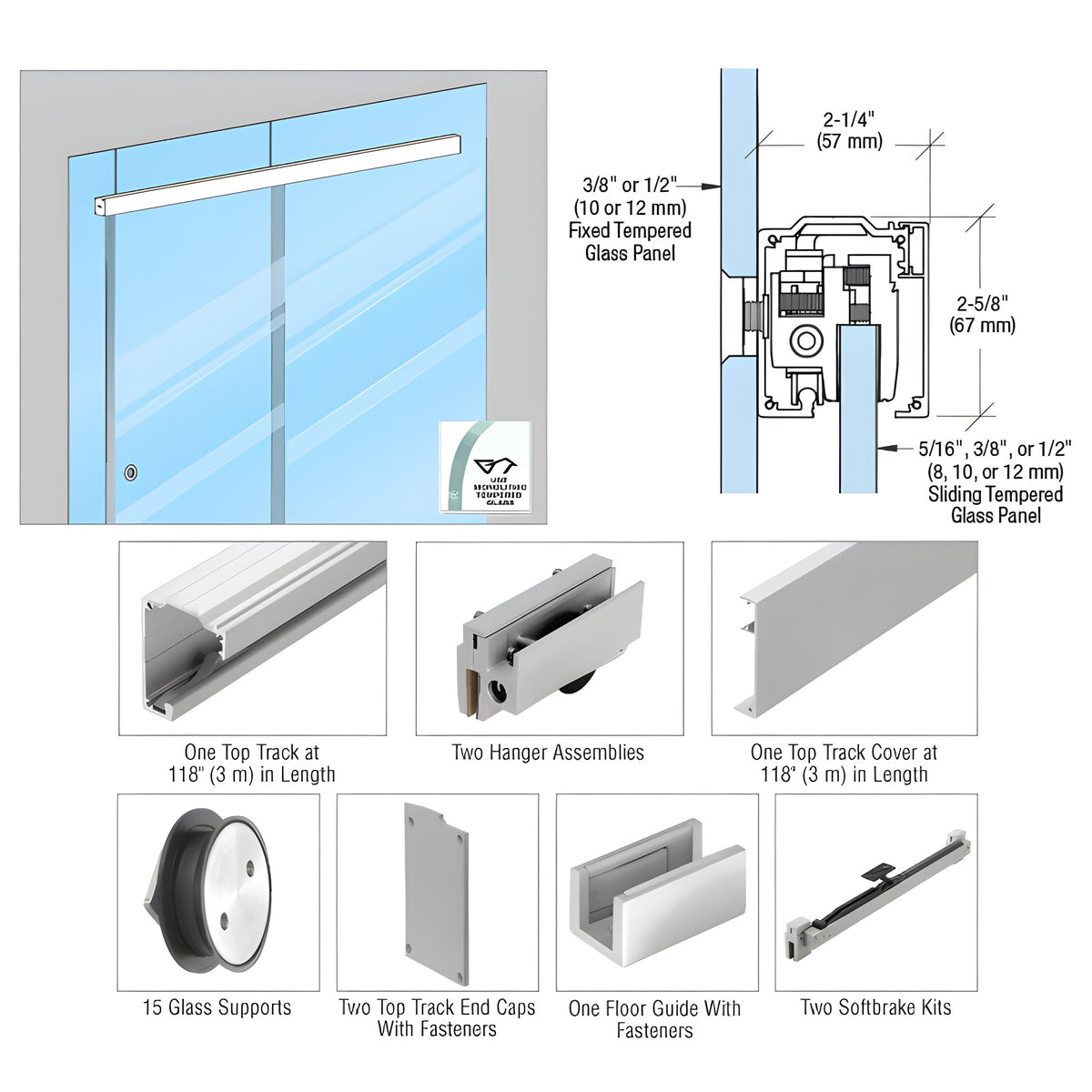

This configuration of the CRL285 Series Slider (SKU: CRL28510G) is a single sliding glass door kit for top-track mounting to a 3/8" or 1/2" (10 or 12 mm) fixed glass panel. The kit is optimized for tempered glass sliding door installations and includes all components needed to assemble the hardware—except the tempered glass, channel, and pull. One Softbrake is required to control each direction of travel per panel. Minimum sliding panel width: 25-1/2" (650 mm) for single-direction control; 39-3/8" (1000 mm) for bidirectional control. NOTE: Laminated glass should not be used.
Product Warning:
STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to verify suitability for intended use and site conditions. Installers must be qualified and follow local, state, and federal regulations, safety factors, and appropriate fixing materials and procedures.
Highlights: Softbrake-equipped glass sliding door hardware, 176 lb capacity, 118" track — ideal for tempered glass single sliding door installations. Order SKU CRL28510G or contact CRL for purchasing and technical assistance.
