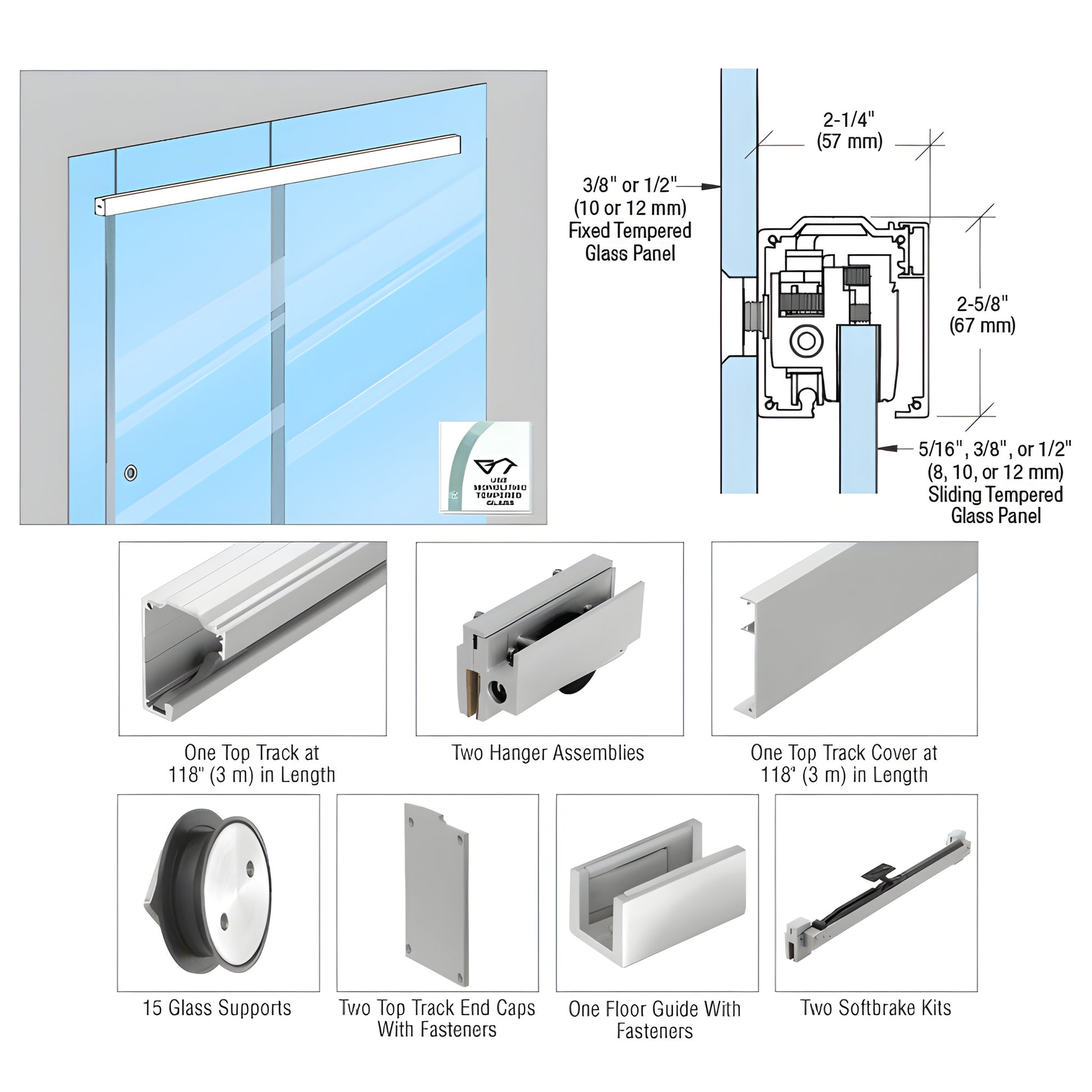

• CRL28512G single sliding glass door kit, satin anodized track with Softbrake, 118" track for 8-12mm glass, max 176 lb.
1 1

CRL

CRL285 Satin Anodized Glass Sliding Door Kit for 1/2" Glass

CRL285 Satin Anodized Glass Sliding Door Kit for 1/2" Glass

$3,190.54 CAD
$3,190.54 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CRL28512G
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Anodized
Glazing Thickness
5/16 in. (8mm) to 1/2 in. (12mm)
Maximum Panel Weight
176 lbs. (79.8 kg)
Maximum Panel Width
59 in. (1499 mm)
Minimum Door Width
25-3/16 in. (64cm), 40-3/16 in. (102cm)
Track Length
118 in. (2997mm)

Overview

  • Softbrake braking system included for controlled slow-close operation
  • Single sliding door kit for 1/2" (12 mm) tempered glass
  • Maximum weight 176 lbs (80 kg); maximum panel width 59" (1.5 m)
  • Kits contain all necessary hardware to complete the installation (excludes tempered glass, channel, and pull hardware)
  • 118" (3000 mm) track length

This CRL285 Series slider configuration (SKU: CRL28512G) is designed for single-door applications where the top track mounts to a 3/8" or 1/2" (10 or 12 mm) fixed glass panel. The kit includes the components needed to install a single sliding glass door system with a Softbrake for controlled travel.

One Softbrake is required for each direction of travel you wish to control per panel. Minimum sliding panel width for single-direction control is 25‑1/2" (650 mm); for control in both directions the minimum is 39‑3/8" (1000 mm). NOTE: Laminated glass should not be used.


Product Warning:

STRUCTURAL DISCLAIMER – Customers must consult a structural engineer to confirm suitability for the intended application and site conditions. All installers must be qualified and understand local regulations, safety factors, and proper fixing materials and procedures.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are of the actual product or a close representation; colors may vary based on monitor settings.


For a reliable single sliding glass door kit with Softbrake control (CRL28512G), add to cart or contact CRL for ordering and installation guidance.
