CRL 285 Brushed Satin Anodized Glass Sliding Door Kit 5/16–3/8" 118"
CRL 285 Brushed Satin Anodized Glass Sliding Door Kit 5/16–3/8" 118"
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL28510GBSA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Anodized
Glazing Thickness
5/16 in. (8 mm)
Glazing Type
Tempered Insulated
Maximum Door Width
47-1/4 in. (1200 mm)
Maximum Panel Weight
100 lbs. (45.4 kg)
Minimum Door Width
25-1/2 in. (648 mm)
Mounting Application
Glass
Track Length
118 in. (2997 mm)
Overview
- Softbrake braking system included
- Single sliding door kit for 5/16" to 3/8" (8 to 10 mm) tempered glass
- Maximum weight 176 pounds (80 kg); maximum panel width 59" (1.5 m)

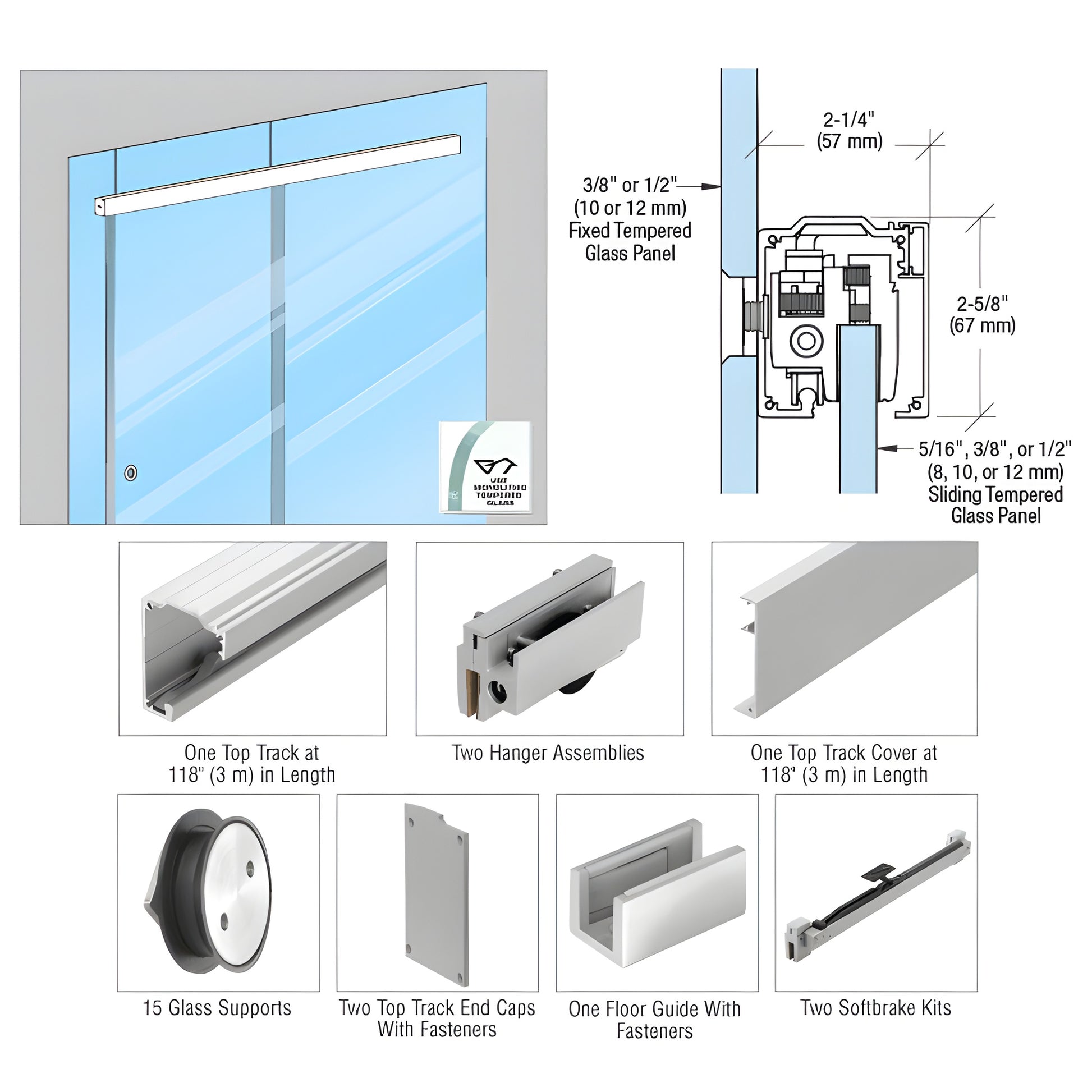

- Kits contain all necessary hardware to complete the installation (excludes tempered glass, channel, and pull hardware)
- 118" (3000 mm) track length
- Use monolithic tempered glass; laminated glass should not be used
This configuration of the CRL285 Series Slider (SKU: CRL28510GBSA) is designed for single-door applications where the top track mounts to a 3/8" or 1/2" (10 or 12 mm) fixed glass panel. The kit provides complete sliding door hardware for frameless tempered-glass installations and includes one Softbrake per controlled travel direction. Minimum sliding panel widths: 25-1/2" (650 mm) for single-direction control; 39-3/8" (1000 mm) for control in both directions.
NOTE: Do not use laminated glass.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Optimize your frameless tempered glass sliding door project with the CRL28510GBSA—order or contact CRL Customer Service for assistance.
