CRL285 Series Brushed Stainless Anodized Single Slider with Fixed Panel Kit for 1/2" - 118"
CRL285 Series Brushed Stainless Anodized Single Slider with Fixed Panel Kit for 1/2" - 118"
Regular price
$2,586.09 CAD
Regular price
Sale price
$2,586.09 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL28512FBSA
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Brushed Stainless Anodized |
| Glazing Thickness | 5/16 in. (8 mm) |
| Glazing | Type Tempered Insulated |
| Maximum Door Width 53-9/16 in. | (1360 mm) |
| Maximum Panel Weight 100 lbs. | (45.4 kg) |
| Minimum Door Width 25-1/2 in. | (648 mm) |
| Mounting | Application Wall,Ceiling |
| Track Length 118 in. | (2997 mm) |
Overview

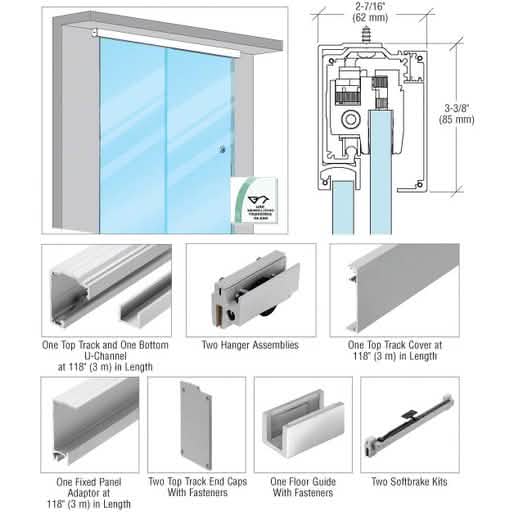

This CRL285 Series Slider Kit features a cutting-edge "Softbrake" braking system and is designed for single sliding door applications with fixed panels, accommodating 3/8" to 1/2" (10 to 12 mm) tempered glass.
With a robust weight capacity of up to 176 pounds (80 kg) and a maximum panel width of 59" (1.5 m), this kit includes all essential hardware for installation, except the tempered glass and pull hardware.
The 118" (3000 mm) track length ensures seamless operation, while each sliding panel requires a minimum width of 25-1/2" (650 mm) for single-direction control and 39-3/8" (1 m) for bi-directional control.
Please note that laminated glass is not compatible with CRL285 Series Kits, and consulting a structural engineer is advised to assess suitability and compliance with regulations.
With a robust weight capacity of up to 176 pounds (80 kg) and a maximum panel width of 59" (1.5 m), this kit includes all essential hardware for installation, except the tempered glass and pull hardware.
The 118" (3000 mm) track length ensures seamless operation, while each sliding panel requires a minimum width of 25-1/2" (650 mm) for single-direction control and 39-3/8" (1 m) for bi-directional control.
Please note that laminated glass is not compatible with CRL285 Series Kits, and consulting a structural engineer is advised to assess suitability and compliance with regulations.
Specifications
Installation Instructions
