CRL285 Series Satin Anodized Single Slider Kit for 3/8" and 1/2" Tempered Glass

CRL285 Series Satin Anodized Single Slider Kit for 3/8" and 1/2" Tempered Glass

$1,947.39 CAD
$1,947.39 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CRL28512
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

Finish/ColorSatin Anodized
Glazing Thickness5/16 in. (8mm) to 1/2 in. (12mm)
GlazingType Tempered Insulated
Maximum Panel Weight 100 lbs.(45.4 kg)
Minimum Door Width 25-3/16 in.(640mm) / 40-3/16 in. (1020mm)
MountingApplication Wall,Ceiling
Track Length 118 in.(2997 mm)

Overview

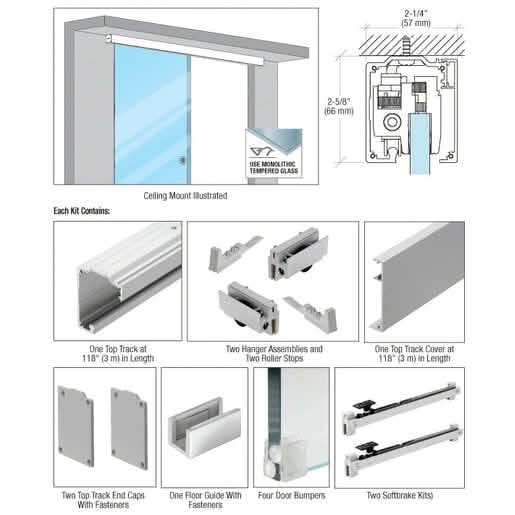

The CRL285 Series Slider is designed for single door installations with a top track that mounts to a structural wall or ceiling.
Ideal for 1/2" (12 mm) thick glass, this kit supports a maximum weight of 176 lbs (80 kg) and a maximum panel width of 59" (1.5 m).
The package includes all necessary hardware for installation, excluding tempered glass, and features a 118" (2997 mm) track length.
It also comes with a "Softbrake" for controlled panel movement.
Please note, it's crucial to consult a structural engineer to ensure suitability for your project, and laminated glass should not be used.
For accurate shipping costs, contact CRL Customer Service prior to ordering.
