CRL50 Matte Black Series Bi-Parting with Two Fixed Panels Synchronized Ceiling Mount Kit
CRL50 Matte Black Series Bi-Parting with Two Fixed Panels Synchronized Ceiling Mount Kit
Regular price
$3,067.73 CAD
Regular price
Sale price
$3,067.73 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL502CS2MBL
Shipping Weight: 125.98 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 125.98 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Matte Black |
| Glazing Thickness | 5/16 in. (8 mm) |
| Glazing | Type Tempered Insulated |
| Maximum Panel Weight 176 lbs. | (80 kg) |
| Mounting | Application Ceiling |
| Top | Hung Yes |
| Track Length 118 in. | (2997 mm) |

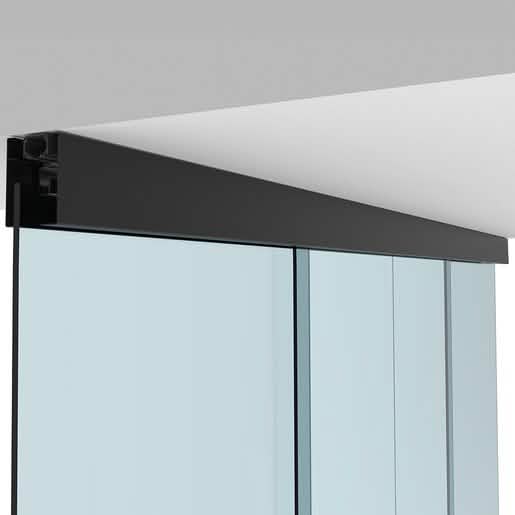

Overview
The CRL50 Kits offer a seamless synchronized operation for two bi-parting panels, ideal for 5/16" or 3/8" (8 or 10 mm) tempered glass.
With a sleek satin anodized finish, these kits support doors weighing up to 176 pounds (80 kg) and a maximum width of 29-1/2" (750 mm).
The rollers provide up to 1/4" (6 mm) of vertical adjustment, ensuring easy installation.
Please note, laminated glass is not compatible with CRL50/51 Series Kits, and it is crucial to consult a structural engineer to ensure suitability for your specific use.
With a sleek satin anodized finish, these kits support doors weighing up to 176 pounds (80 kg) and a maximum width of 29-1/2" (750 mm).
The rollers provide up to 1/4" (6 mm) of vertical adjustment, ensuring easy installation.
Please note, laminated glass is not compatible with CRL50/51 Series Kits, and it is crucial to consult a structural engineer to ensure suitability for your specific use.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
