CRL51 Series Ceiling Mount Single Slider with Fixed Panel Kit

• New "Softbrake" Braking System
• For 5/16" or 3/8" (8 or 10 mm) Tempered Glass
• Satin Anodized Finish

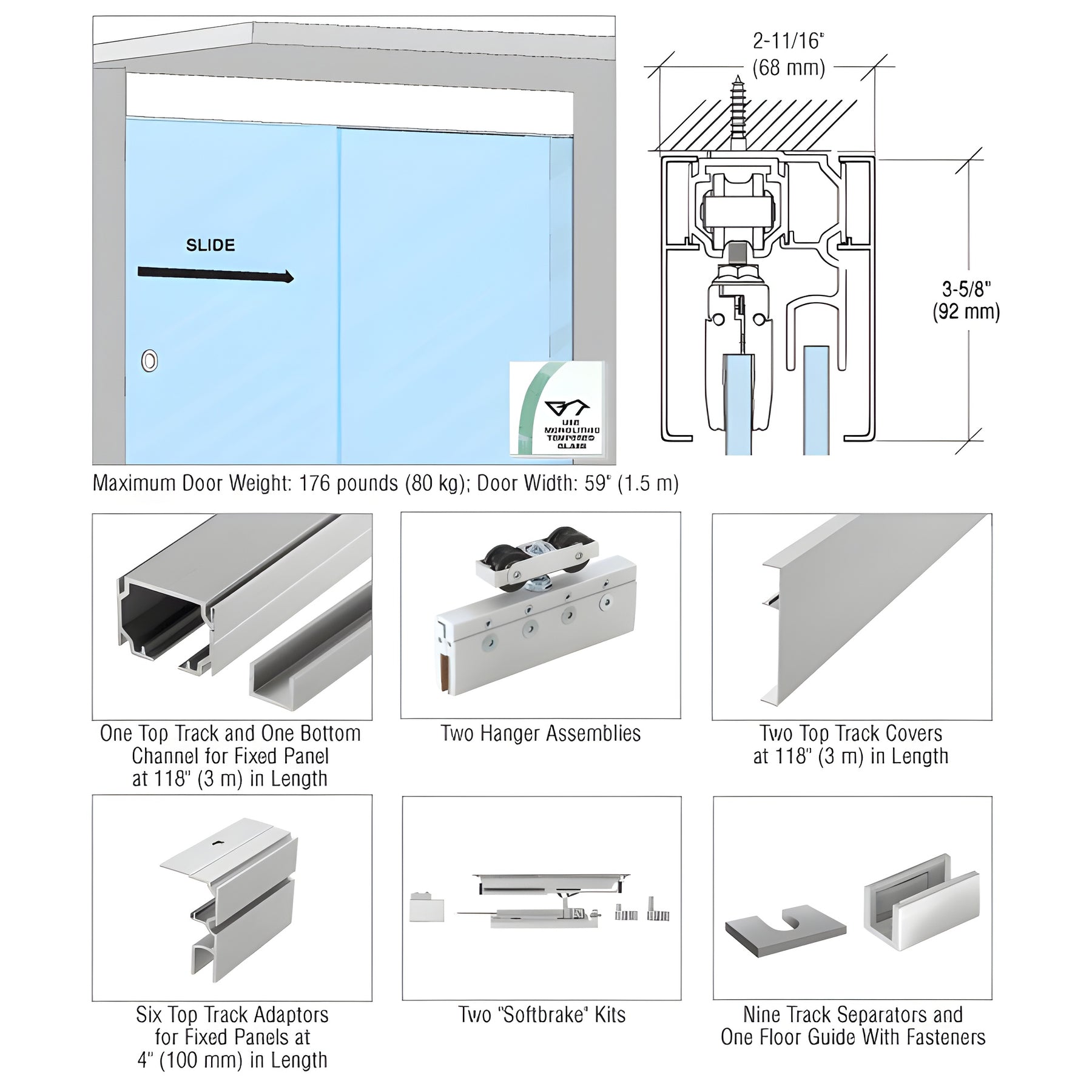

This configuration of the CRL51 Series Slider is used for single door with fixed panel applications where the top track mounts to a structural ceiling. Kit includes Top Track Adaptors for a fixed panel and two Track Covers to conceal the Top Track, Adaptors, and Hanger Assemblies, making for an attractive yet simple installation. Pull hardware ordered separately. One "Softbrake" is required for each direction of travel to be controlled per panel. Minimum sliding panel width of 25-9/16" (650 mm) for control in a single direction; 31-1/2" (800 mm) for control in both directions of travel. NOTE: Laminated glass should not be used.


Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
