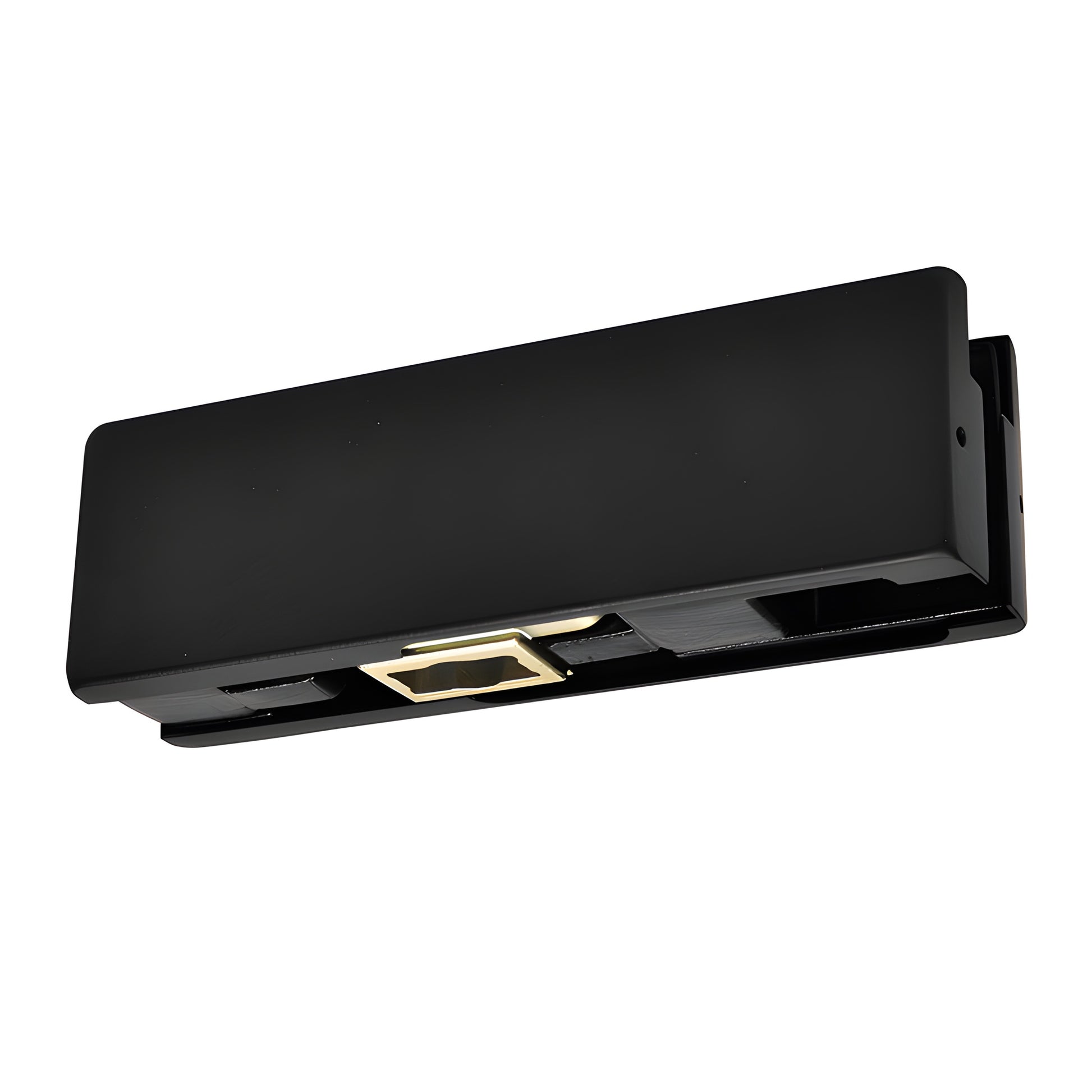

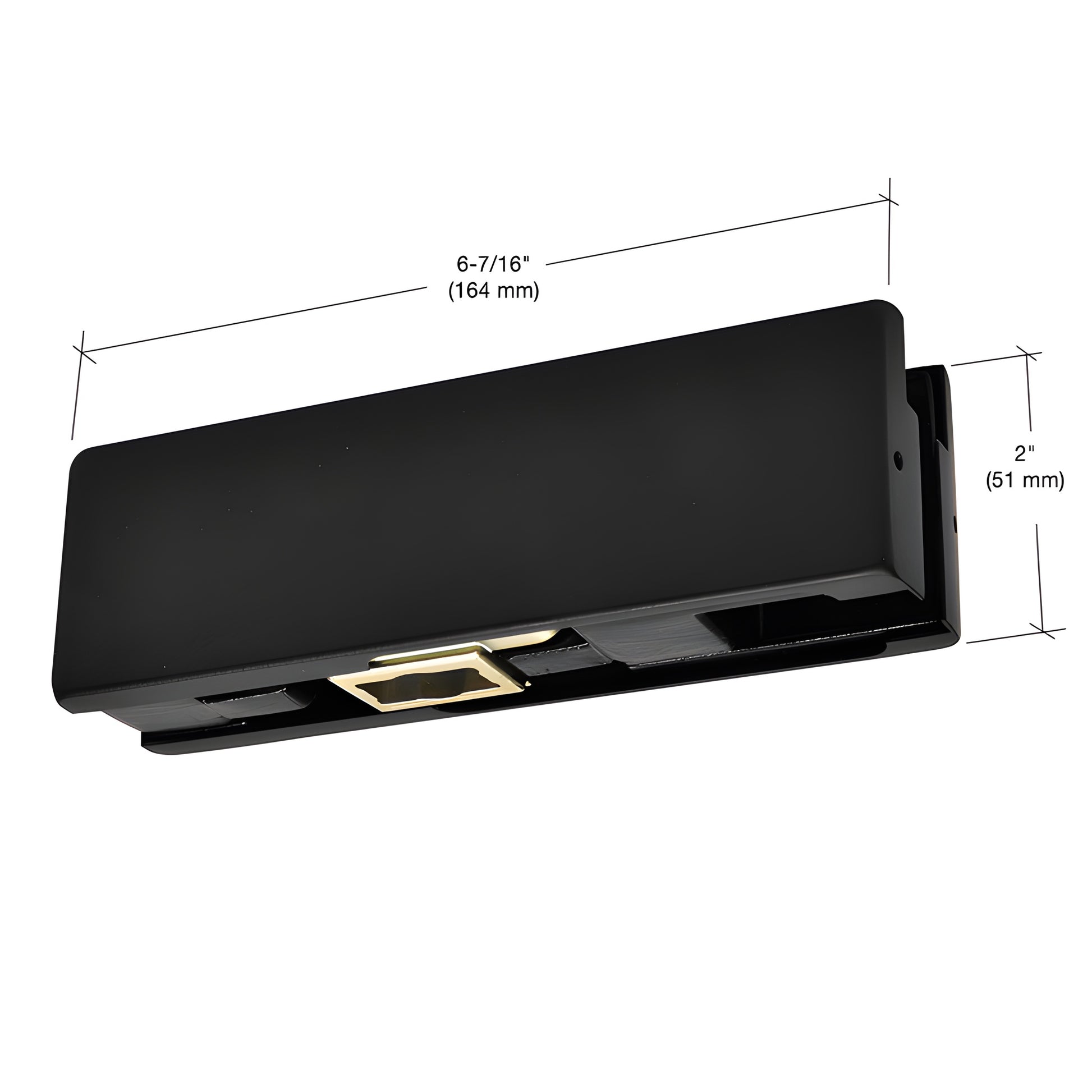

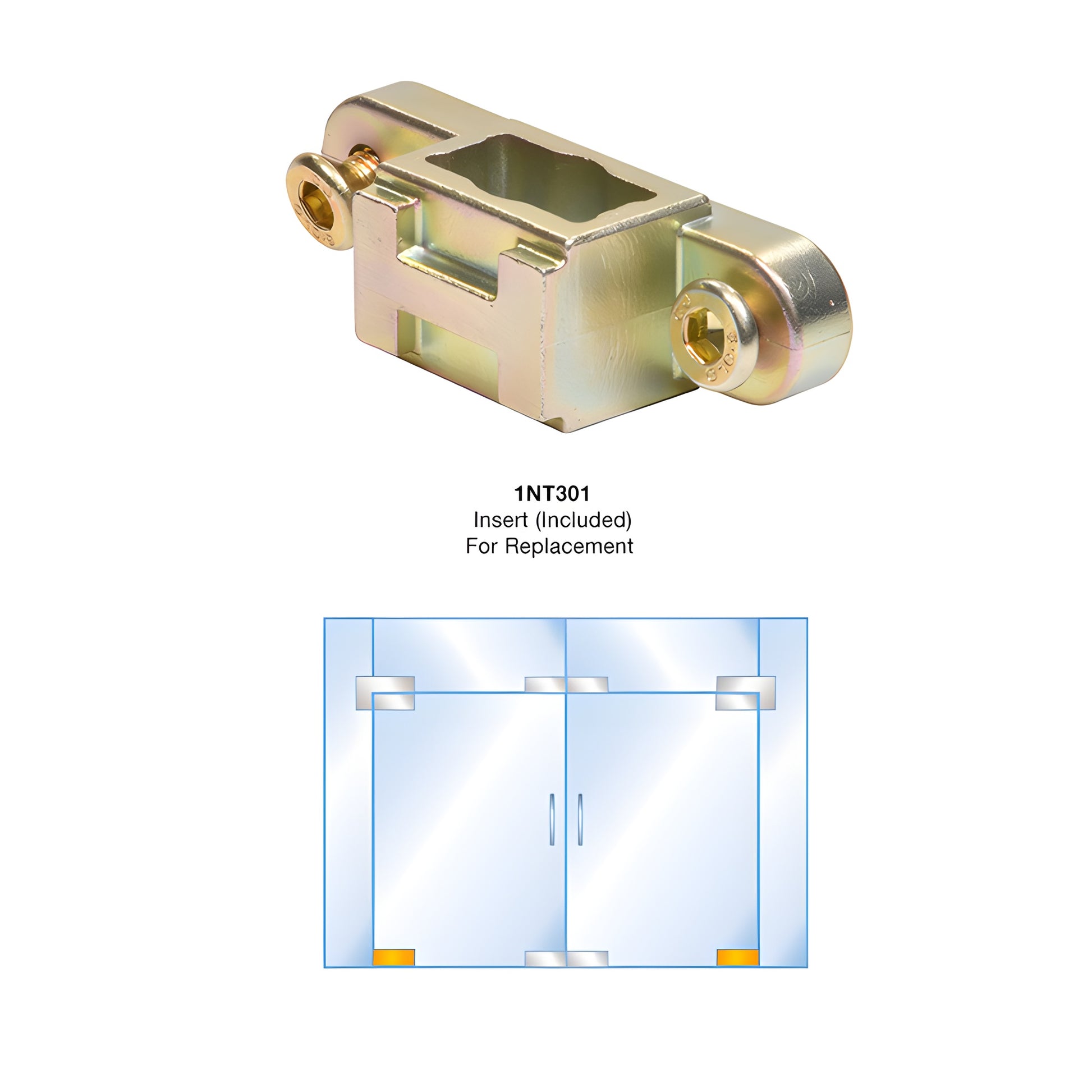

DORMAKABA® Matte Black Bottom Patch Fitting with Insert for 3/4" Glass Door

• 2-3/4" (70 mm) pivot setback
• For 3/4" (19 mm) glass
• Use monolithic tempered glass

DORMAKABA® Bottom Patch Fittings are designed for frameless glass doors and work with our bottom door pivots or floor closers. The fitting secures in the lower corner of a 3/4" (19 mm) tempered glass panel and requires a hole and corner cut-out in the glass. Available in brushed or polished stainless steel finishes, this bottom patch fitting is ideal for commercial and residential frameless pivot doors. SKU: PT1034MBL.

The following guidelines apply when specifying this DORMAKABA bottom patch fitting for 3/4" tempered glass:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, use full door rails.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch

COMES WITH:
Template and instructions


Product Warning

These fittings are not for use with laminated glass.
