Dormakaba® Model BTS75V Adjustable Spring Power Size 1 to 4, 175º No Hold Open Floor Mounted Door Closer Body in Cement Case
Dormakaba® Model BTS75V Adjustable Spring Power Size 1 to 4, 175º No Hold Open Floor Mounted Door Closer Body in Cement Case
Regular price
$1,188.38 CAD
Regular price
Sale price
$1,188.38 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BTS75VNH0
Shipping Weight: 12.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 12.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

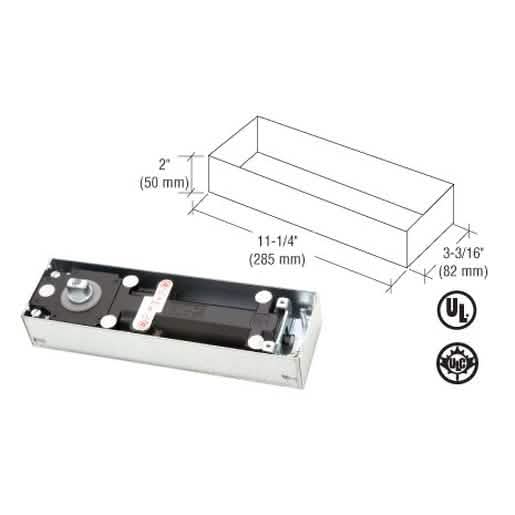

| Body Height | 2 |
| Body Length | 11-1/4 |
| Body Width | 3-1/6 |
| Brand | Dormakaba |
| Closer | Body With Box Yes |
| Closer | Type Floor Closer |
| Handing | Double Acting |
| Independent | Closing and Latching Valves Yes |
| Interchangeable | Spindles Yes |
| Interior | Or Exterior Doors Yes |
| Maximum Door Width - Exterior | 42 Inches |
| Maximum Door Width - Interior | 42 Inches |
| Maximum Weight Center Hung | 260 |
| No Hold Open | 175° |
| Non | Stocked Parts and Acessories Special Order Yes |
| Recommended | Door Type Aluminum, Hollow Metal |
| Series BTS | 75V |
| Similar J | 990NHOD, J993HOD, J994HOD, J995BCD, |
| Spring Size | 1.2.3.4 |
| U | L Listed Yes |
Overview
The Dormakaba® BT75V Series Floor Mounted Door Closers provide exceptional adaptability for almost any installation, featuring an adjustable spring power size ranging from 1 to 4.
These door closers accommodate doors up to 42 inches wide and weighing up to 260 lbs, backed by a 25-year limited warranty.
Complying with ANSI A156.4 Grade 1 standards and UL/CUL listings, their compact design allows use where larger door closers are impractical.
This versatile, non-handed system supports single or double acting, center-hung, or offset applications and offers models for 90º or 105º hold open, as well as full swing to 175º.
Accessories such as cover plates, pivots, and arms are available, though please note, the closer body is sold separately from the spindle.
For exact shipping weights and costs, contact CRL Customer Service.
These door closers accommodate doors up to 42 inches wide and weighing up to 260 lbs, backed by a 25-year limited warranty.
Complying with ANSI A156.4 Grade 1 standards and UL/CUL listings, their compact design allows use where larger door closers are impractical.
This versatile, non-handed system supports single or double acting, center-hung, or offset applications and offers models for 90º or 105º hold open, as well as full swing to 175º.
Accessories such as cover plates, pivots, and arms are available, though please note, the closer body is sold separately from the spindle.
For exact shipping weights and costs, contact CRL Customer Service.
