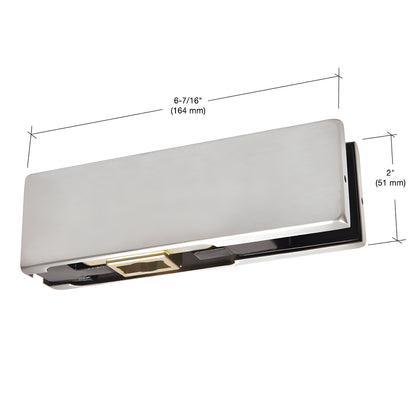

DORMAKABA Brushed Stainless Bottom Door Patch Fitting for 3/4in Glass
Item# PT1034BS
Shipping Weight: 1.51 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.51 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Pivot Setback
2-3/4
Series
DORMAKABA®
Type
Bottom
With Insert
Yes
Works With

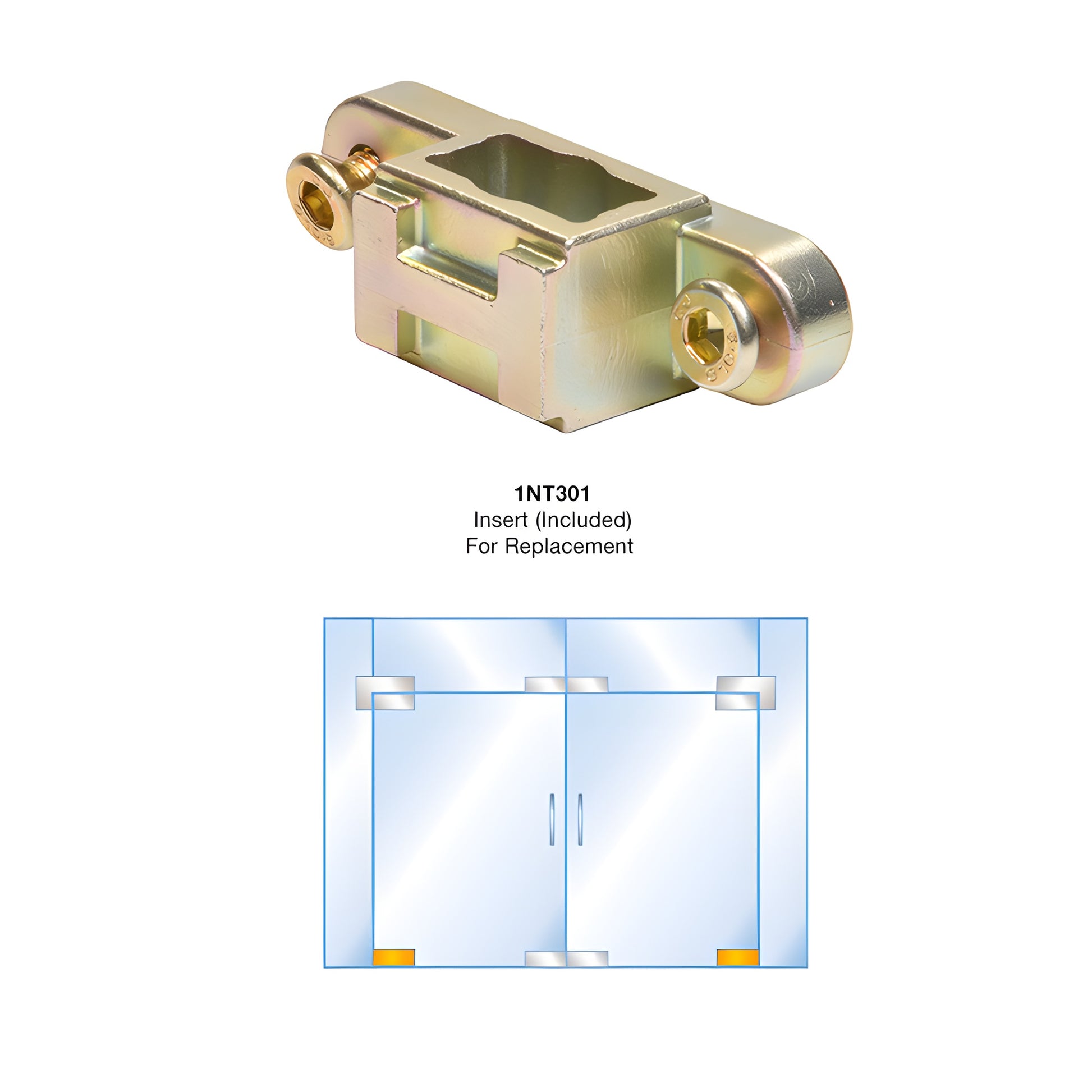

1NT301 Insert
- 2-3/4" (70 mm) Pivot setback
- For 3/4" (19 mm) monolithic tempered glass
- Use with monolithic tempered glass (not for laminated glass)

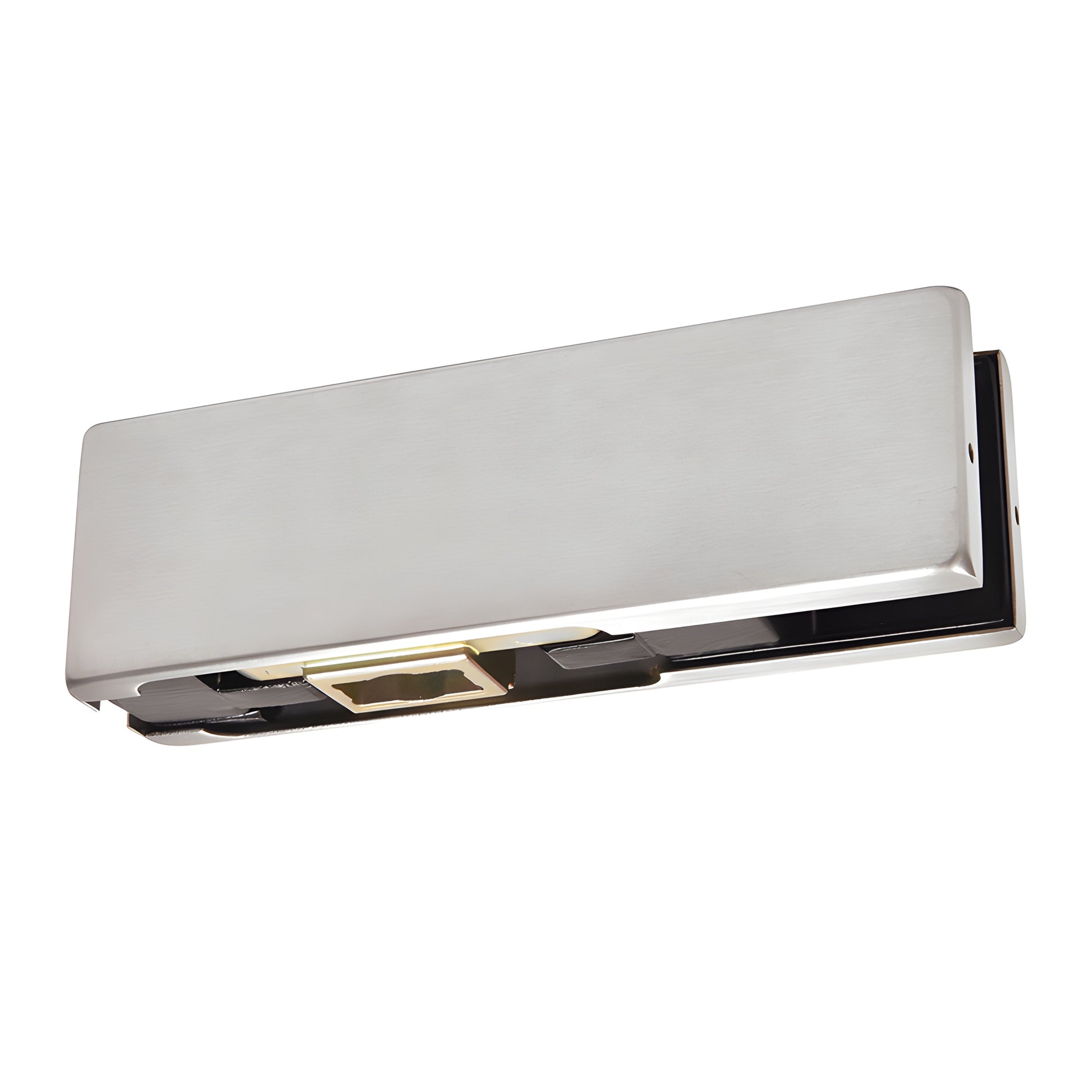

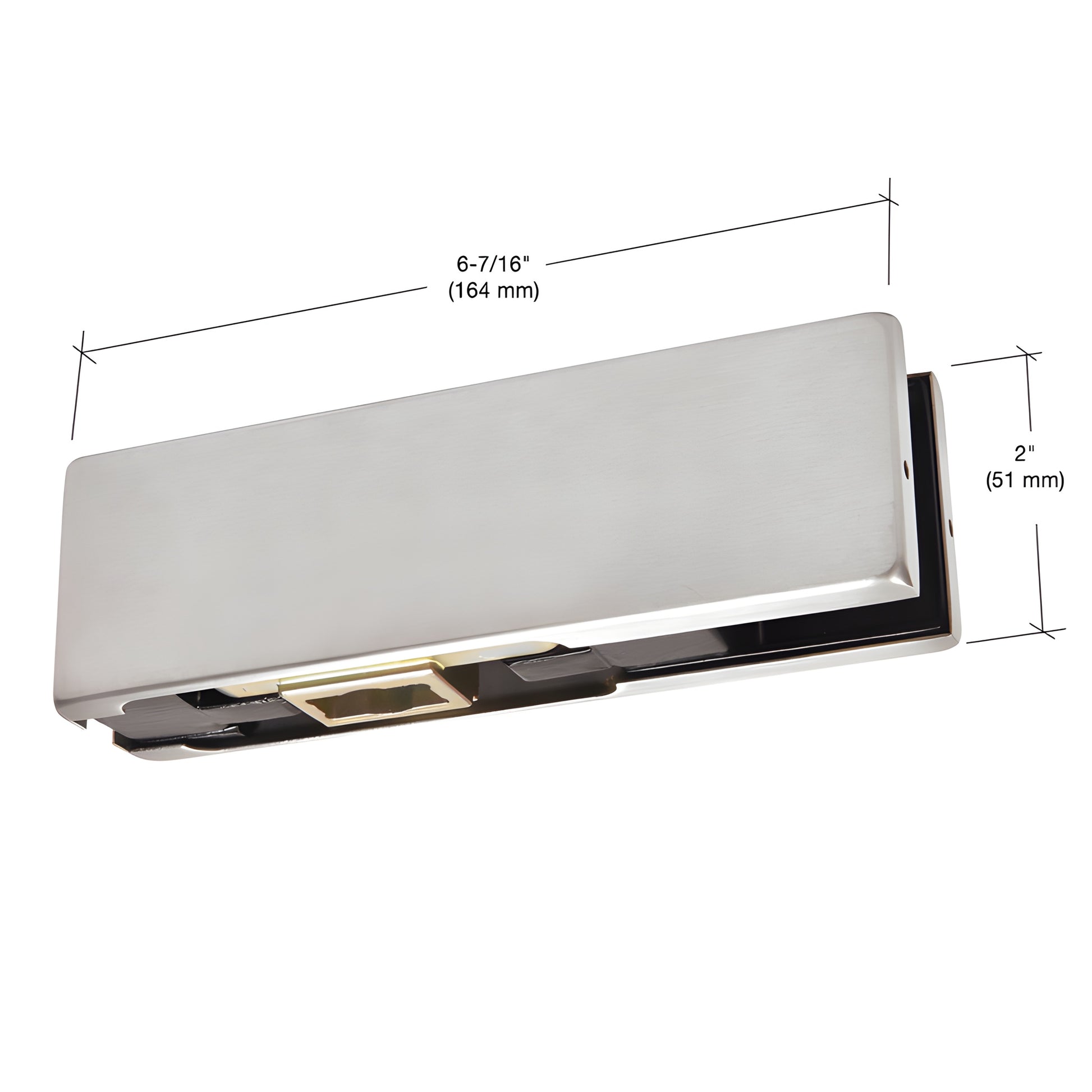

DORMAKABA® Bottom Patch Fittings (SKU: PT1034BS) are precision bottom corner fittings designed for glass swing doors that work with our bottom door pivots or floor closers. Installs in the lower corner of a 3/4" (19 mm) glass panel and requires a drilled hole and corner cut-out. Available in brushed or polished stainless steel finishes to match modern commercial and residential glass door systems. These fittings provide a clean, low-profile look and reliable hinge interface for frameless glass doors.
Design limits and application guidelines:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs (88 kg)
Maximum Width: 42" (1.09 m)
If your door exceeds these limits, use full door rails for proper support.
Glass fabrication required:
One 3/4" (19 mm) diameter hole and corner notch in the glass panel.
Includes:
Template and installation instructions
Product warning:
Not for use with laminated glass. Use only monolithic tempered glass as specified.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are actual or close representations; colors may vary by monitor settings.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care details.
Key differentiators: low-profile DORMAKABA bottom patch fitting engineered for 3/4" monolithic tempered glass, available in brushed or polished stainless steel, includes template and instructions. SKU: PT1034BS.
Order PT1034BS today or contact us for installation support and glass fabrication guidance.
