Dormakaba® Brushed Stainless Right-Hand Transom Patch Fitting
Dormakaba® Brushed Stainless Right-Hand Transom Patch Fitting
Regular price
$1,580.53 CAD
Regular price
Sale price
$1,580.53 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PT4134P1VRHBS
Shipping Weight: 2.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Handing
Right Hand
Insert Type
1NT300
Mounting Type
Sidelite
Series
DORMAKABA®
With Insert
Yes
Overview

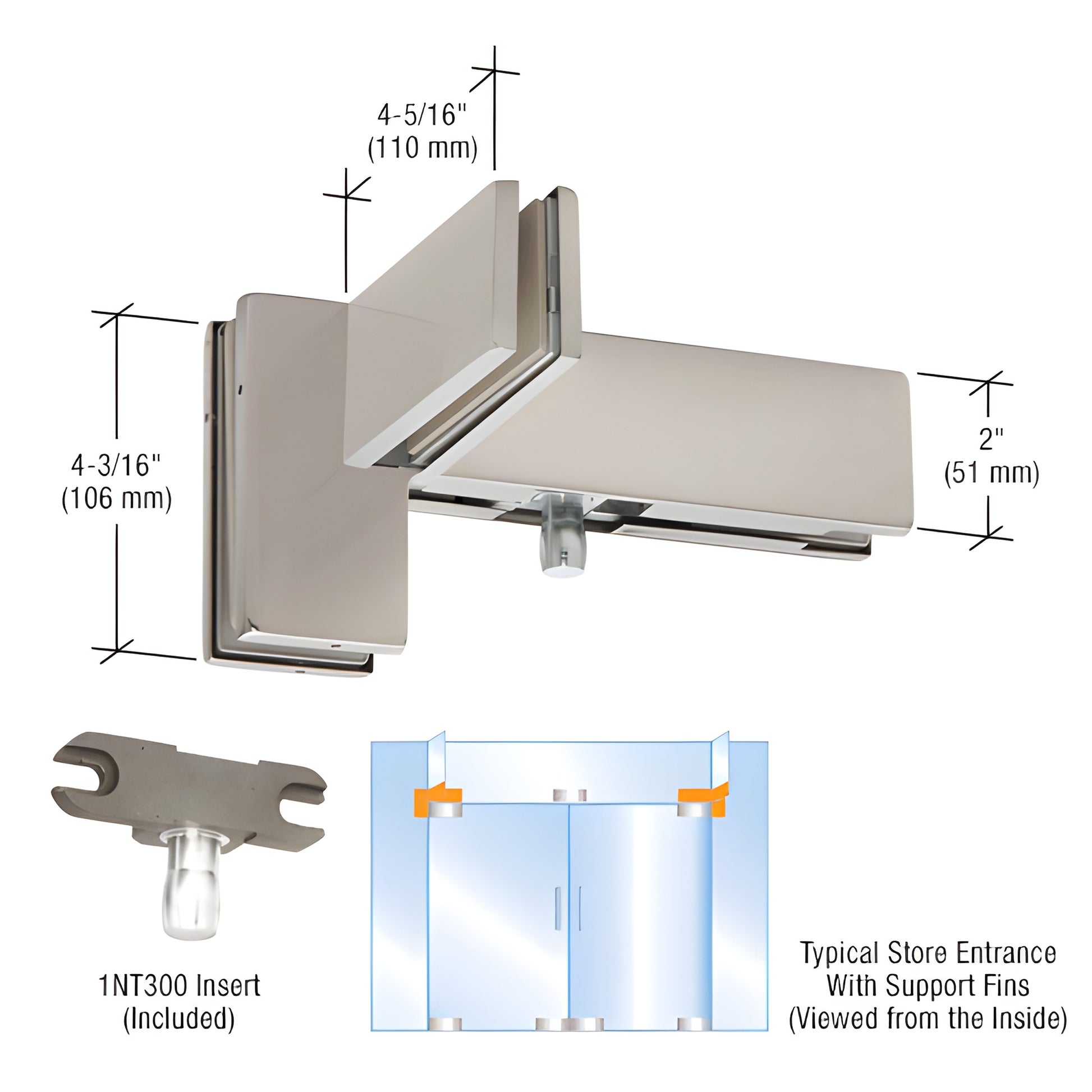

- Fits 3/4" (19 mm) monolithic tempered glass
- Compatible with 2-3/4" (70 mm) pivot setback door patch fitting
- Available in left- and right-handed versions
- Requires monolithic tempered glass fabrication
DORMAKABA® Left Hand Sidelite Mounted Transom Patch Fitting with Support Fin Bracket — works with a 2-3/4" (70 mm) pivot setback door patch fitting and includes template and installation instructions. SKU: PT4134P1VRHBS.
NOTE: Glass fabrication required: one 13/16" (20 mm) diameter hole and corner notch.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Ideal for commercial storefronts and glass partition installations where a sidelite-mounted transom patch fitting is required. Order now or contact us for fabrication guidance and installation support.
