- Solid Brass Clamps are Adjustable for Non-Standard Angles
- For 5/16" to 1/2" (8 to 12 mm) Glass
- Two Models Available; Glass-to-Wall, and Glass-to-Glass
- Several Popular Finishes to Choose
- Use Monolithic Tempered Glass

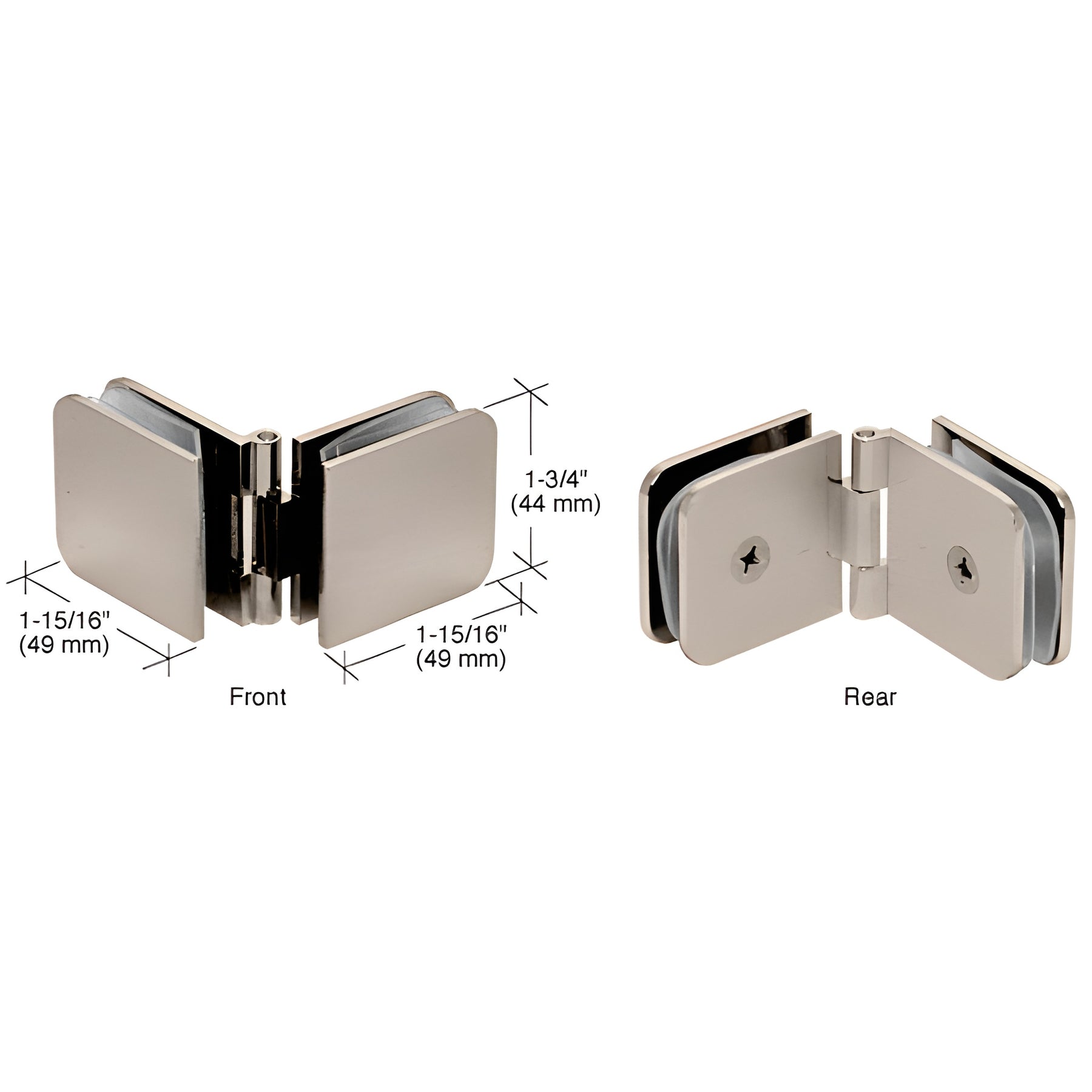

CRL Adjustable Glass-to-Glass Clamps
are designed to join two glass panels that meet between 90º and 180º. Clear silicone can be used to provide a clean, water resistant seal.
Our Solid Brass Wall Mount and Glass-to-Glass Adjustable Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean-looking alternative when a wall is not at 90º to the fixed panel, or the glass-to-glass application is not a standard angle. This range of Glass Clamps can accommodate 5/16" to 1/2" (8 to 12 mm) glass. Custom finishes are available.
NOTE
You may contact the CRL Shower Door Technical Staff for location of hole drilled in glass, due to numerous possible angles.
SPECIFICATIONS
Materials
Solid Brass
Glass Thickness Range
5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required
7/8" (22 mm) Each Panel
Includes
Clear Gaskets
An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).
